XB4BS9445 - Schneider Electric 600V AC Emergency Stop Push Button, 1NO/1NC, 40mm Mushroom Head

XB4BS9445

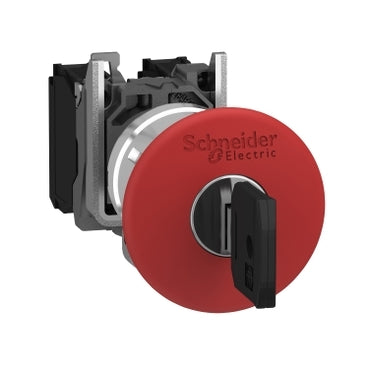

XB4BS9445 is a Schneider Electric emergency stop push button designed for motor control applications with a 600V AC rating and 1NO/1NC contact configuration.XB4BS9445 features a 40mm red mushroom head operator with a trigger latching key release mechanism, suitable for 22mm panel cutouts. It offers a 6A AC current rating and 550mA DC rating, with chrome-plated zinc die-cast bezel for durability. Certified by Bureau Veritas and CSA, it supports a wide operating temperature range from -40 to +70 °C and is designed for ergonomic emergency actuation in various environments.

Key Specifications
• Voltage Rating: 600V AC
• Current Rating: 6A AC, 550mA DC
• Contact Configuration: 1NO + 1NC
• Operator Type: 40mm Red Mushroom Head
• Mounting: 22mm Panel Cutout
• Bezel Material: Chrome Plated Zinc Die Cast
• Operating Temperature: -40 to +70 °C
• Reset Type: Trigger Latching Key Release
• Certifications: Bureau Veritas, CSA, CSA C22.2 No.
• Dimensions: 40mm x 47mm

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BS9445
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XB4
• Voltage : 600 600

Product Data

• UPC : 785901381006
• GTIN : 00389111000000
• Country of Origin : Czechia
• Dimensions : 1.9 in (47 mm) x 1.6 in (40 mm) x 4.09 in (104 mm) (Height x Width x Depth)
• Weight : 0.348
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60204-1, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, EN/ISO 13850, Germanischer Lloyd (GL), IEC 60364-5-53, JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
