XB4BL42 - Schneider Electric Motor Control 10A 600V Switch

XB4BL42

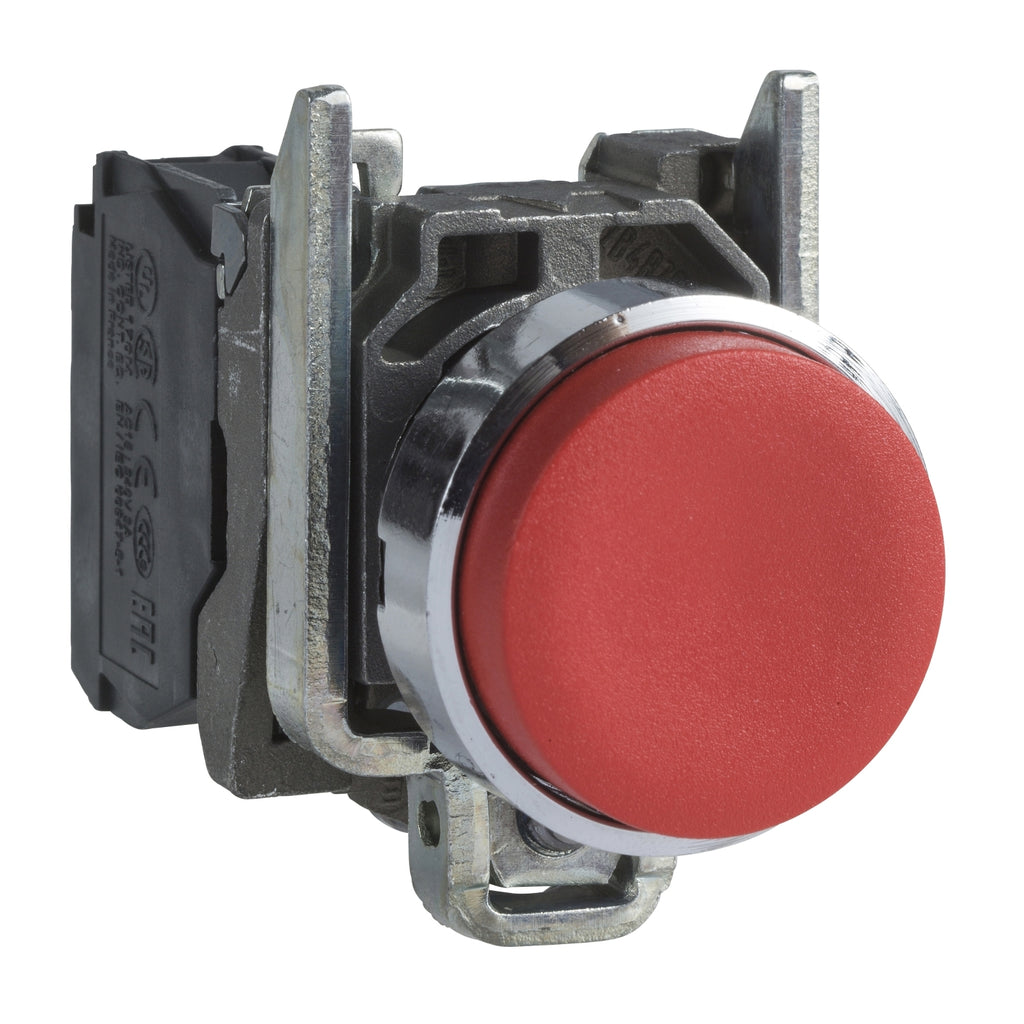

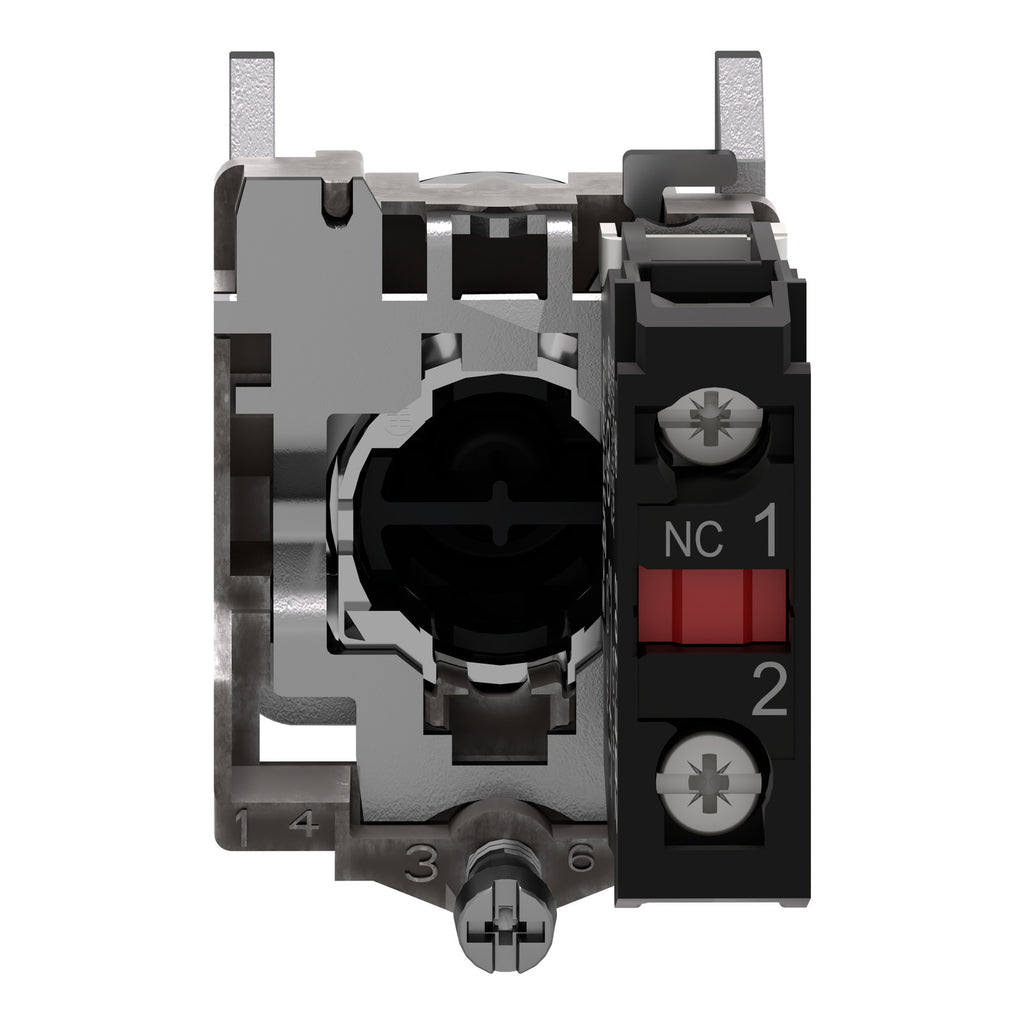

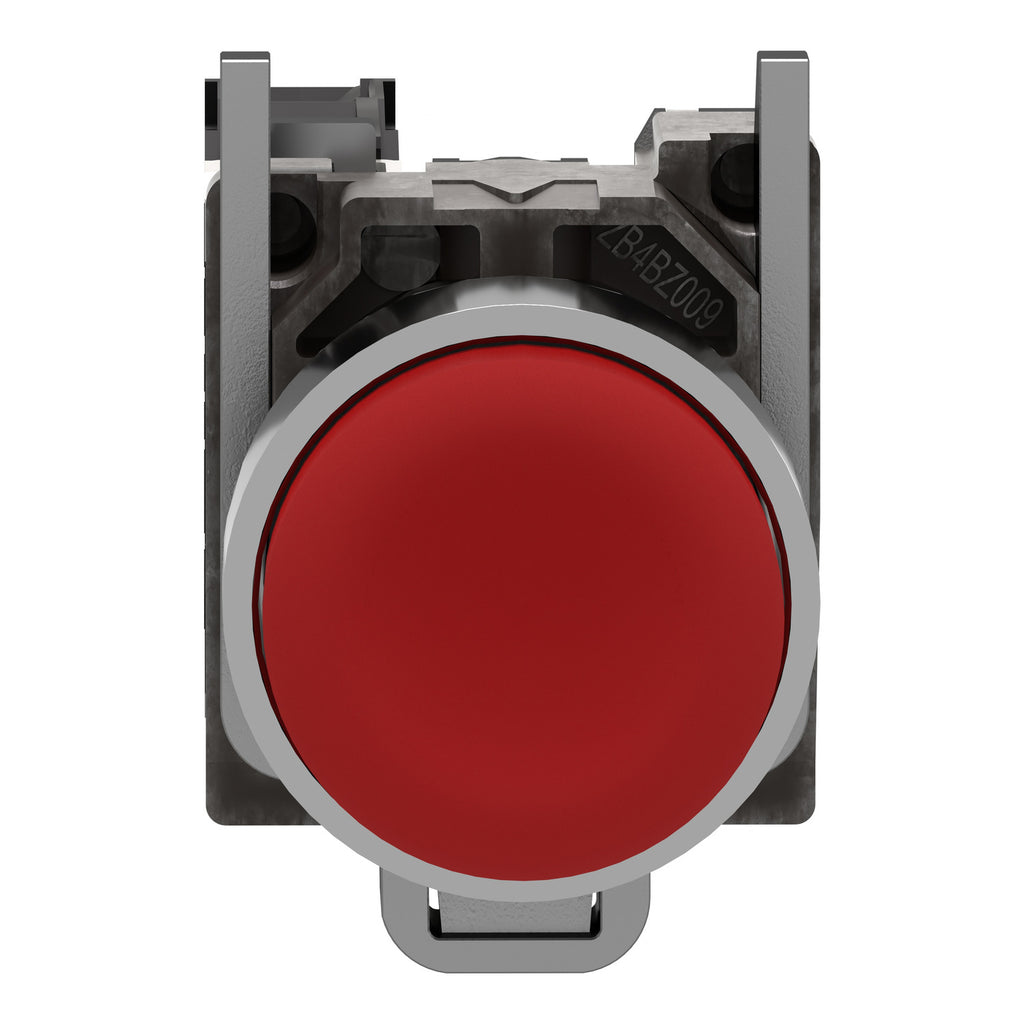

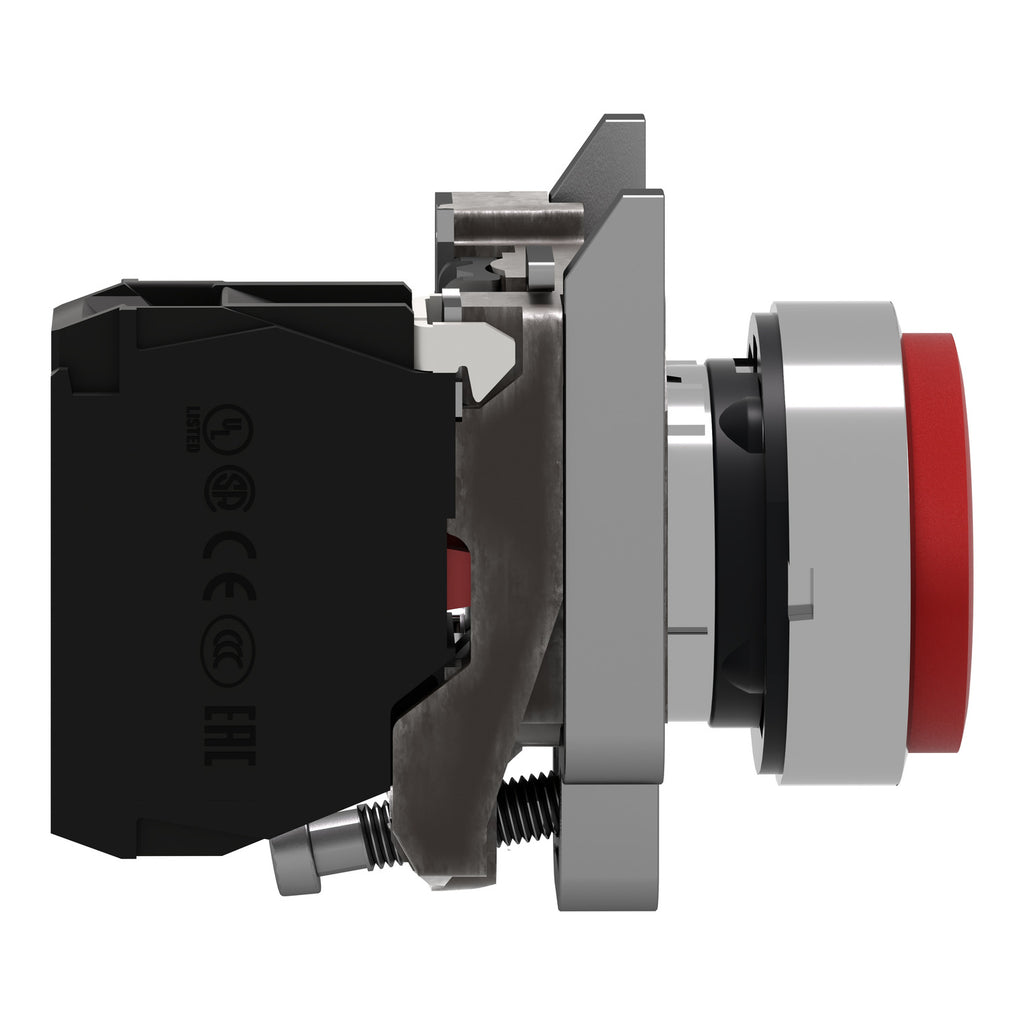

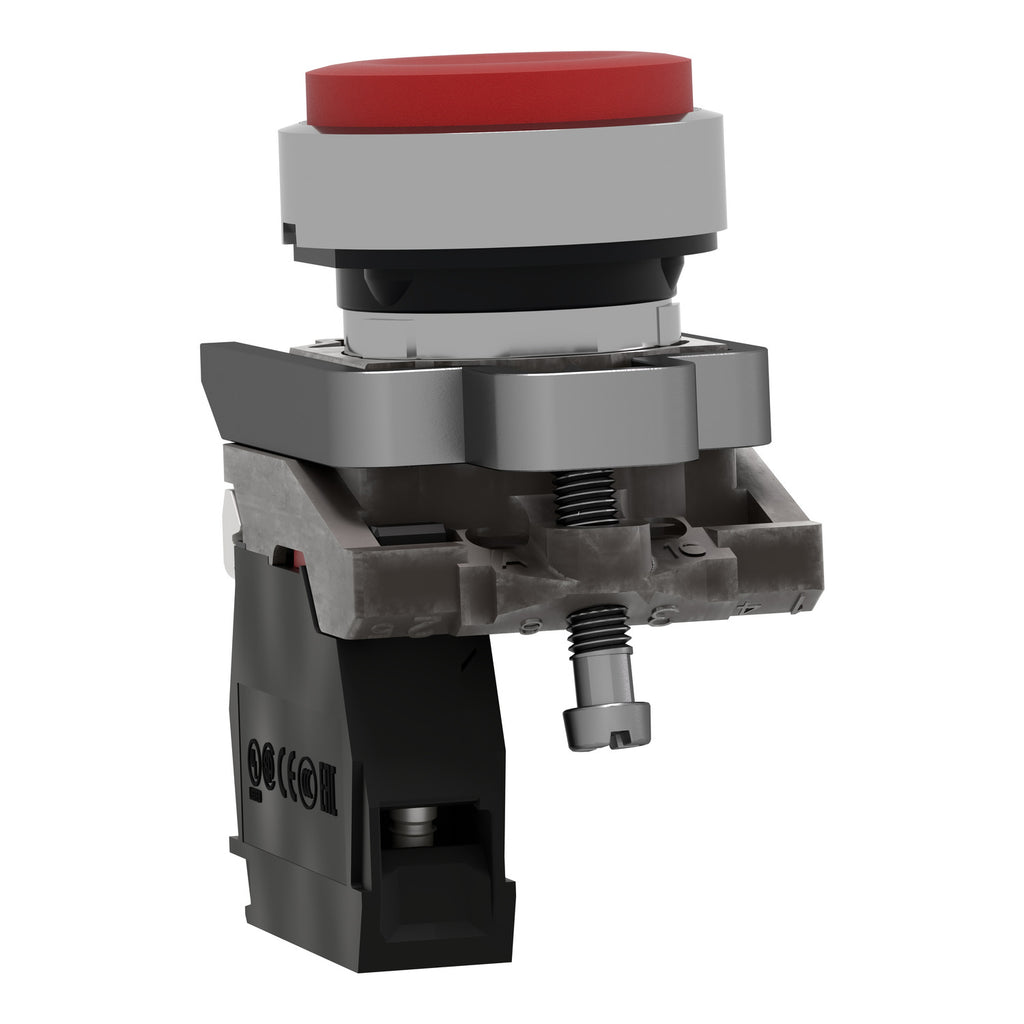

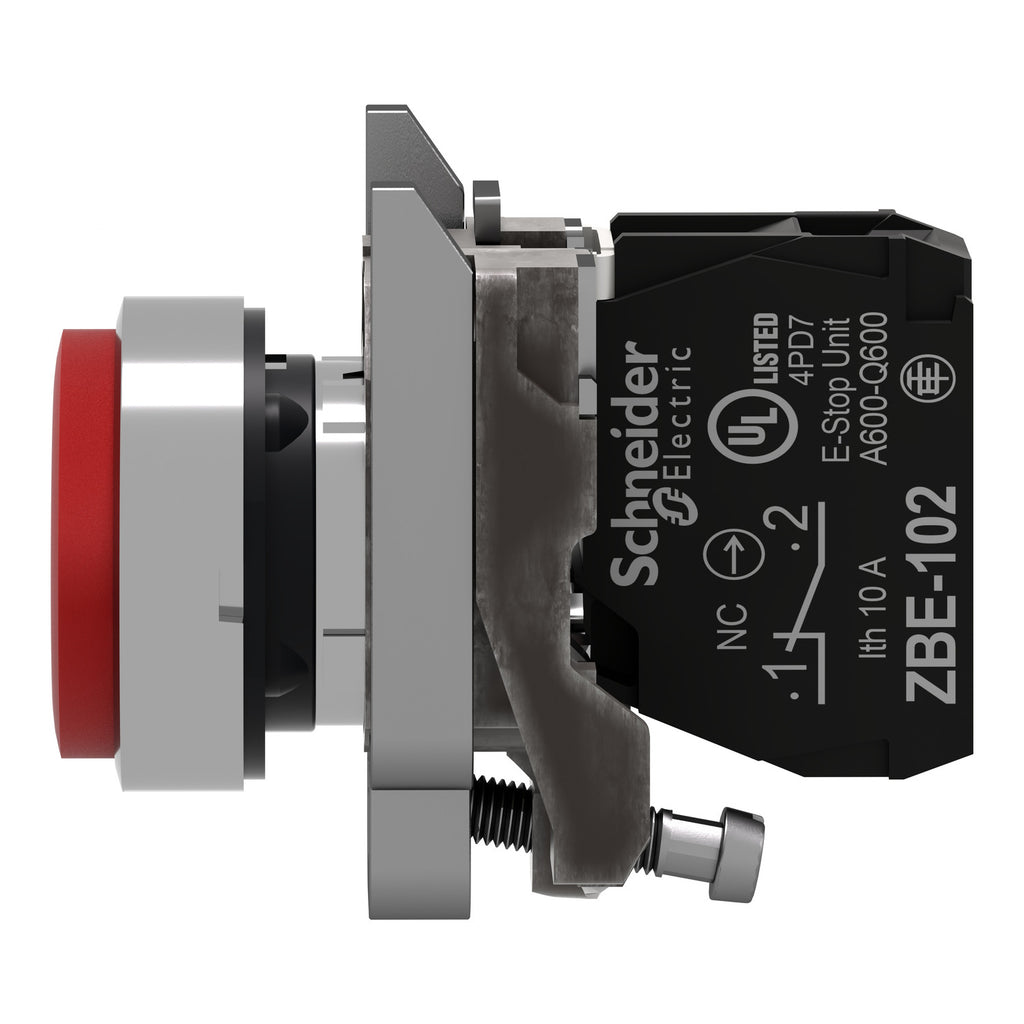

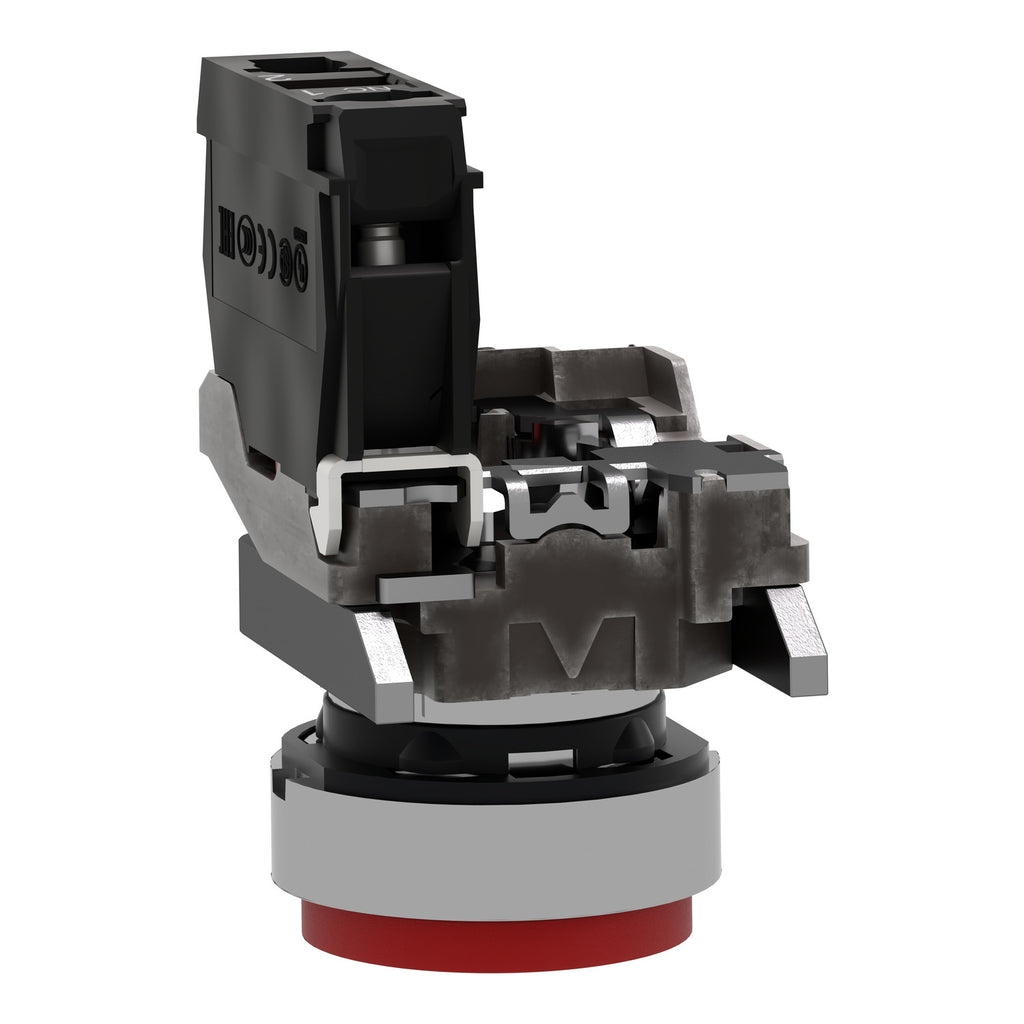

XB4BL42 is a Harmony XB4 metal projecting red push button with spring return mechanism and 1 NC contact.

• Projecting red, 22mm, unmarked, spring return, 1 NC
• Metal bezel, flush mounting
• 10 A per IEC 60947-5-1
• 600 V pollution degree 3 per IEC 60947-1
• 6 kV per IEC 60947-1
• NEMA 4/4X/13, -40 to 70 deg C

Key Specifications

• Part Number: XB4BL42
• Manufacturer: Schneider Electric
• Current Rating: 10 A
• Voltage Rating: 600 V
• Impulse Withstand: 6 kV
• Mechanical Life: 10,000,000 cycles
• Electrical Life: 1,000,000 cycles

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BL42
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XB4
• Voltage : 600 V
• Amperage : 10 A
• Functions : Spring return, 1 NC
• Temp Rating : -40 to 70 deg C
• Nema Rating : NEMA 4/4X/13
• Switch Type : Projecting push button
• Operating Temperature Maximum Celsius : -40 to 70 deg C

Product Data

• UPC : 785901380719
• GTIN : 00389111000000
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.2 in (57 mm) (Height x Width x Depth)
• Weight : 0.179
• Temp Rating : -40 to 70 deg C
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
