XB4BA4322 - Square D Harmony XB4 22mm Red Metal Flush Push Button, 1NC, Spring Return

XB4BA4322

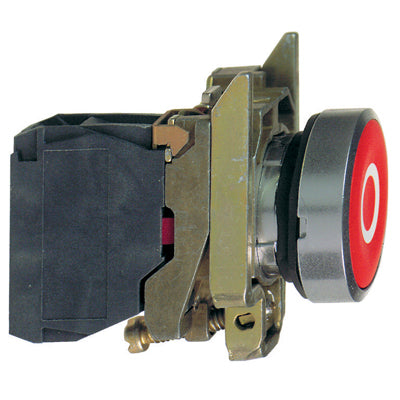

XB4BA4322 is a Square D Harmony XB4 22mm red metal flush push button with 1 normally closed (1NC) contact and spring return mechanism.

This push button features a robust metal bezel and a flush round design for ergonomic machine control interfaces. It is designed for easy installation into standard 22mm panel cut-outs and connects via screw-clamp terminals. The button is marked with an "O" symbol and provides reliable momentary operation with a spring return. It is impact, dust, water, and vibration resistant, rated IP66, NEMA 4X, suitable for harsh environments. The contact rating is 600 VAC and 5 amperes, compliant with UL 508 standards.

Key Specifications
• Type: Push Button, Harmony XB4
• Size: 22 mm diameter
• Color: Red
• Material: Metal bezel
• Operation: Spring return (momentary)
• Contact Configuration: 1 Normally Closed (1NC)
• Contact Rating: 600 VAC, 5 A
• Mounting: Flush round panel mount
• Environmental Rating: IP66, NEMA 4X
• Standards: UL 508

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BA4322
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XB4
• Voltage : 600 600

Product Data

• UPC : 785901380498
• GTIN : 00389110886972
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.05 in (52 mm) (Height x Width x Depth)
• Weight : 0.176
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
