XB4BA31 - Schneider Electric 6A 120V SPST-NO Flush Green Pushbutton Switch Harmony Series

XB4BA31

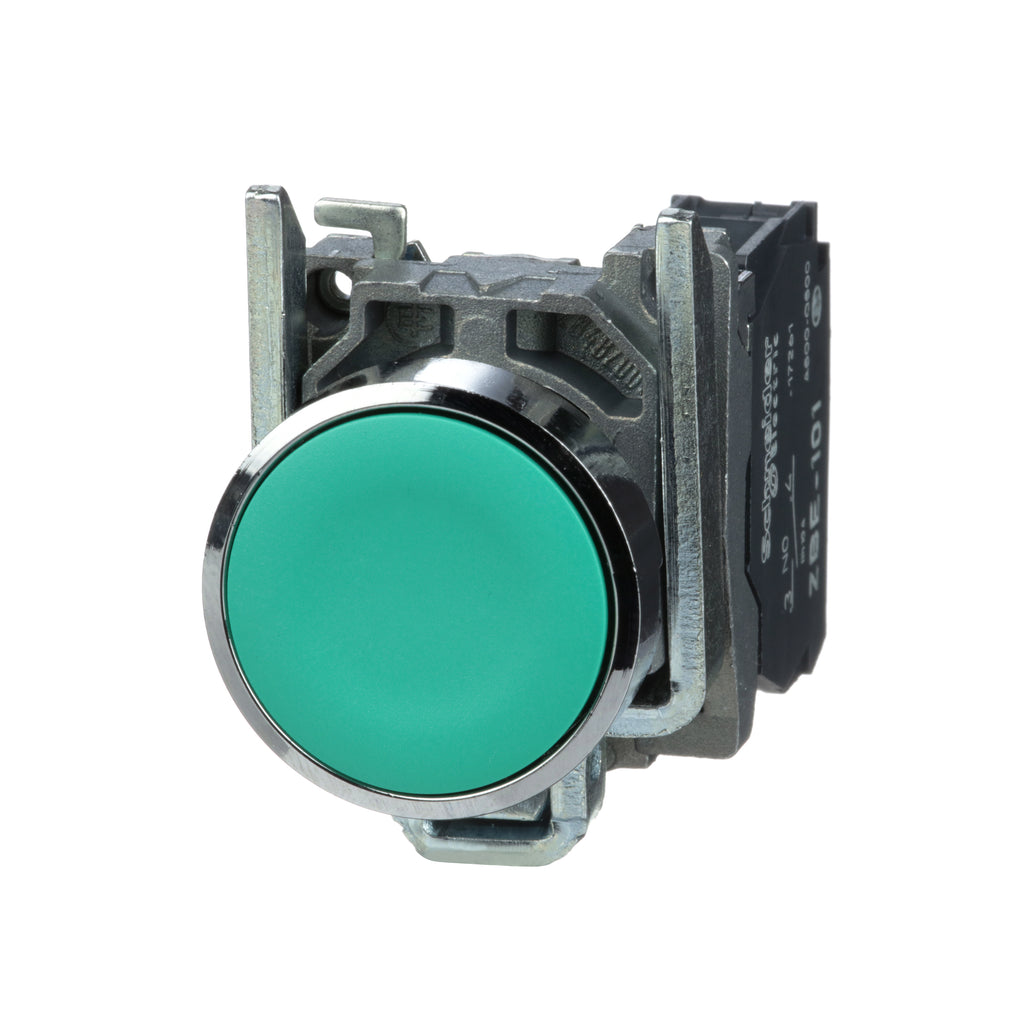

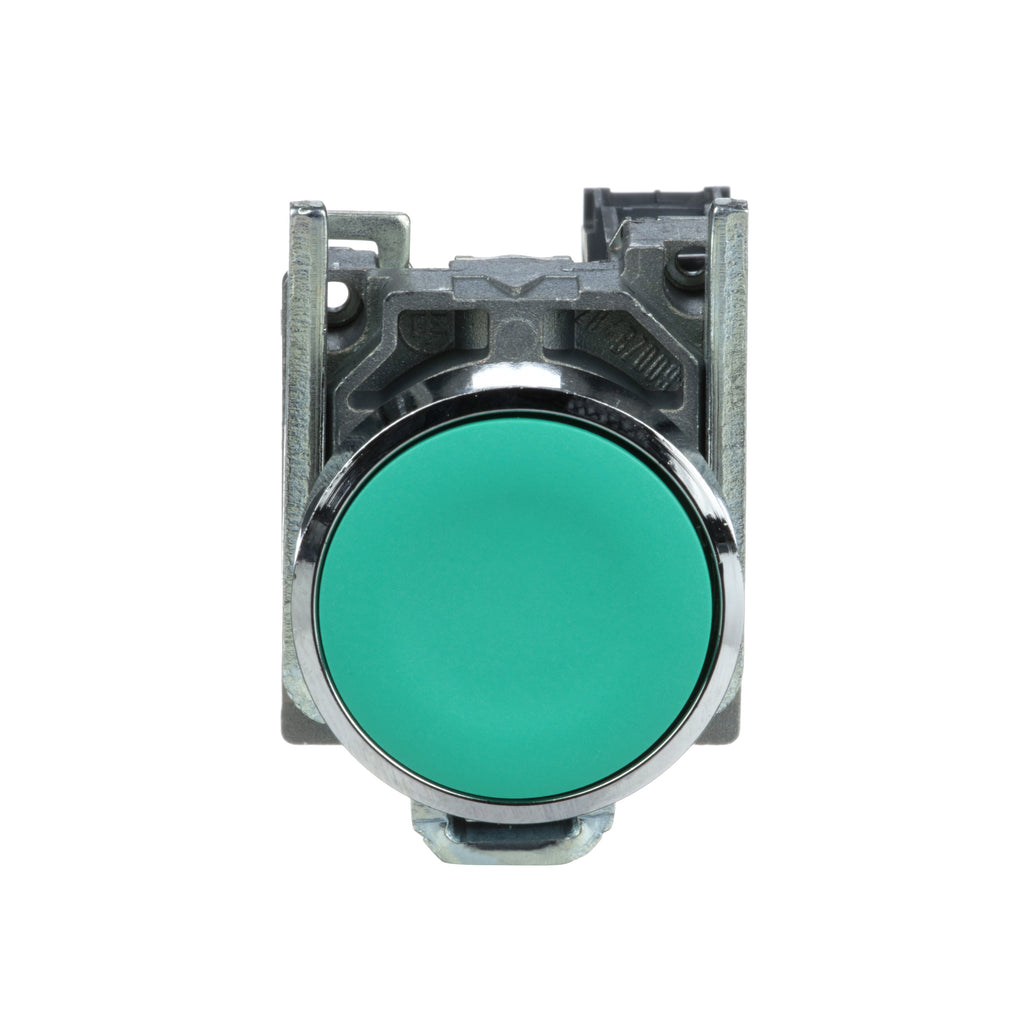

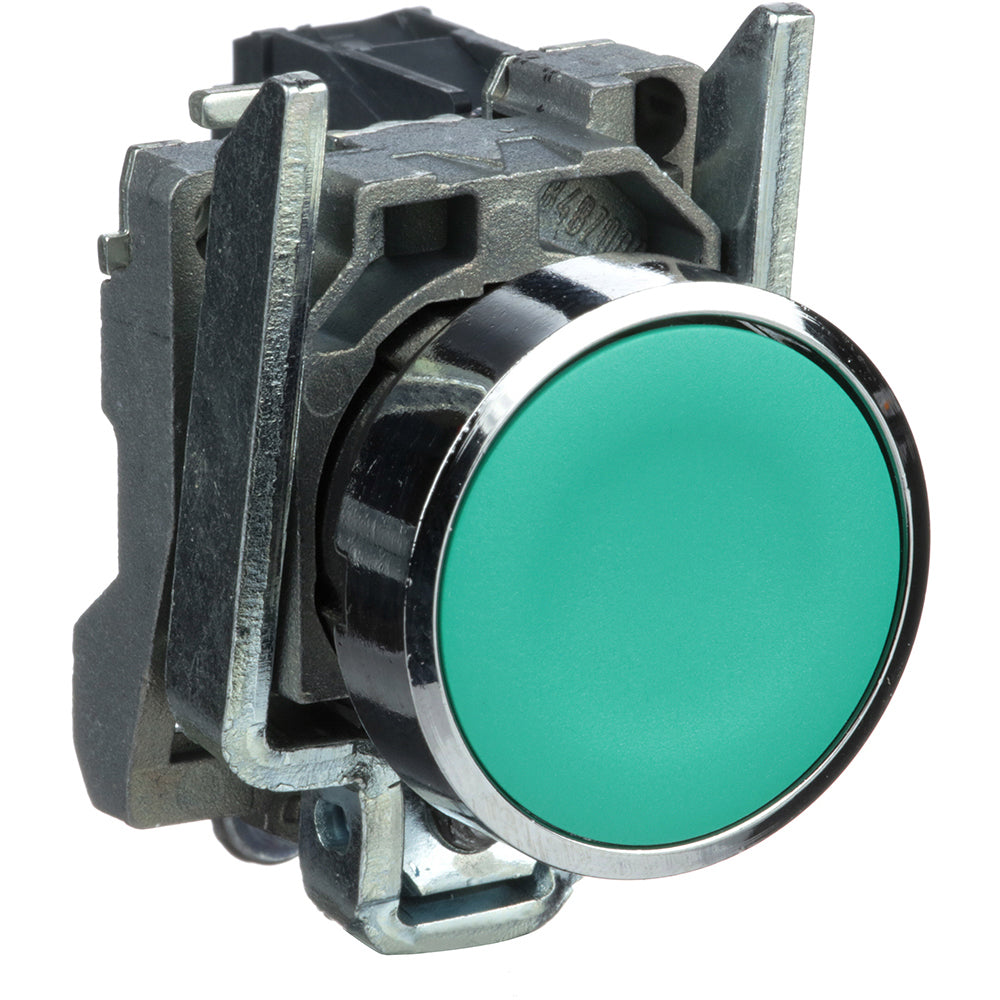

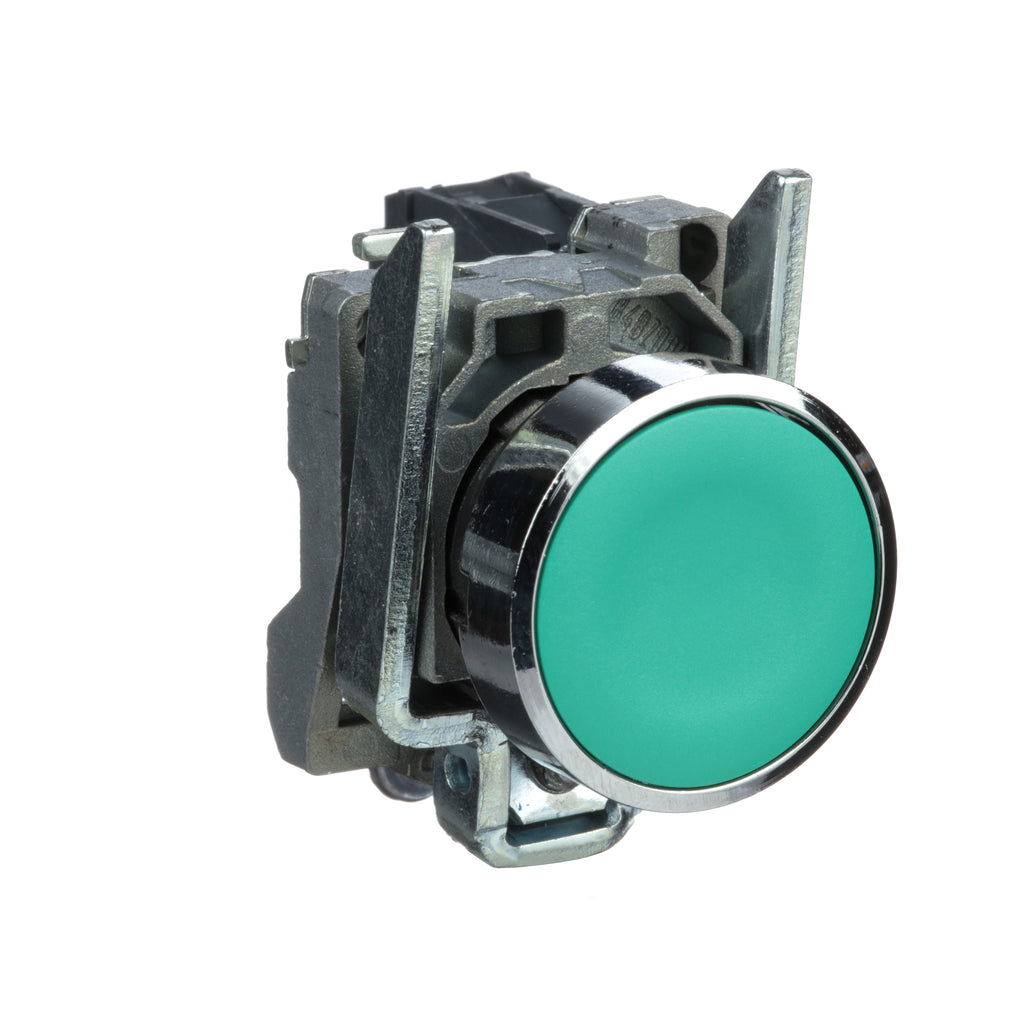

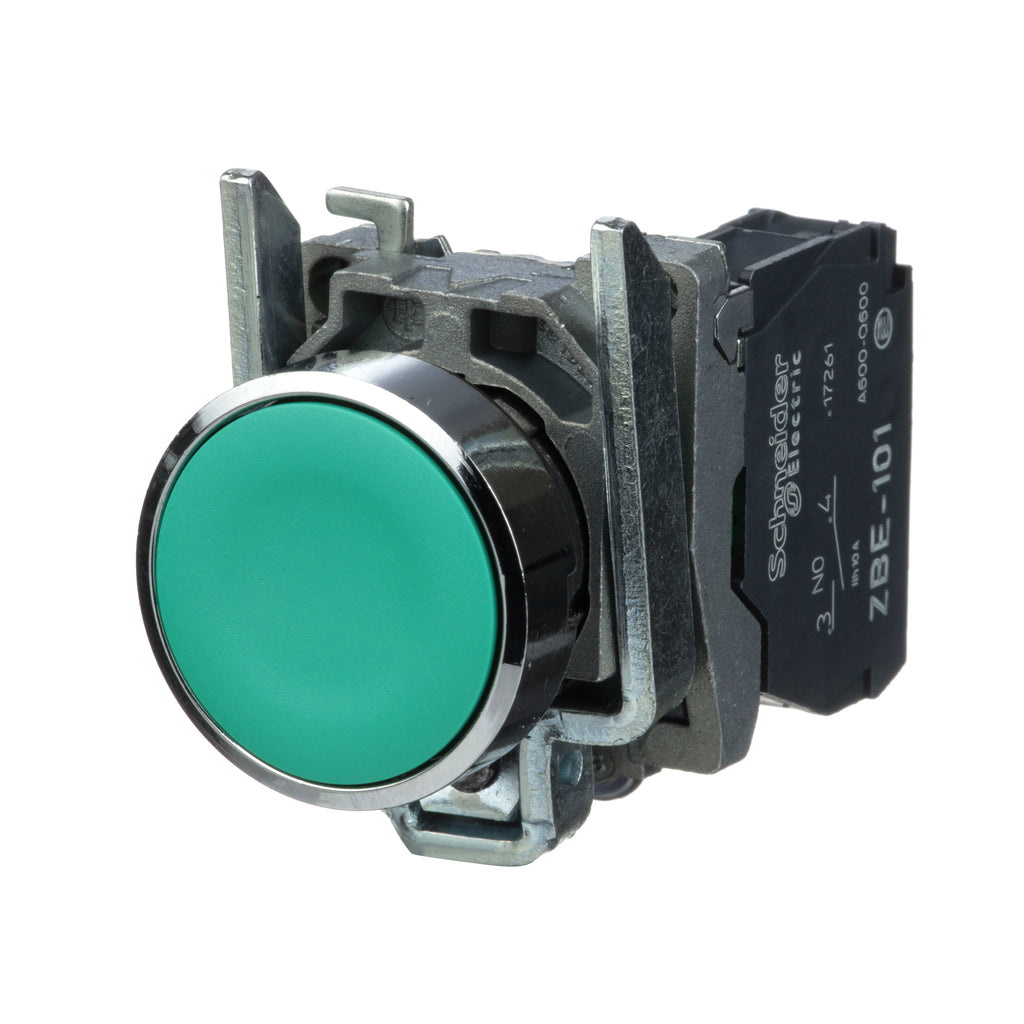

XB4BA31 is a Schneider Electric Harmony Series flush green pushbutton switch with a 6 ampere rating and 120 volt AC voltage rating.This industrial-grade switch features a single-pole single-throw normally open (SPST-NO) contact configuration with a spring return mechanism. It has a chromium plated metal bezel, silver alloy contacts, and is designed for panel mounting with screw clamp terminals. The switch offers high durability with up to 10 million mechanical cycles, and protection ratings of IP66, IP67, IP69, and IK06, making it suitable for harsh environments. It is non-illuminated and complies with IEC standards for electric shock protection and mechanical robustness.

Key Specifications
• Current Rating: 6A AC, 550mA DC
• Voltage Rating: 120V AC, 125V DC

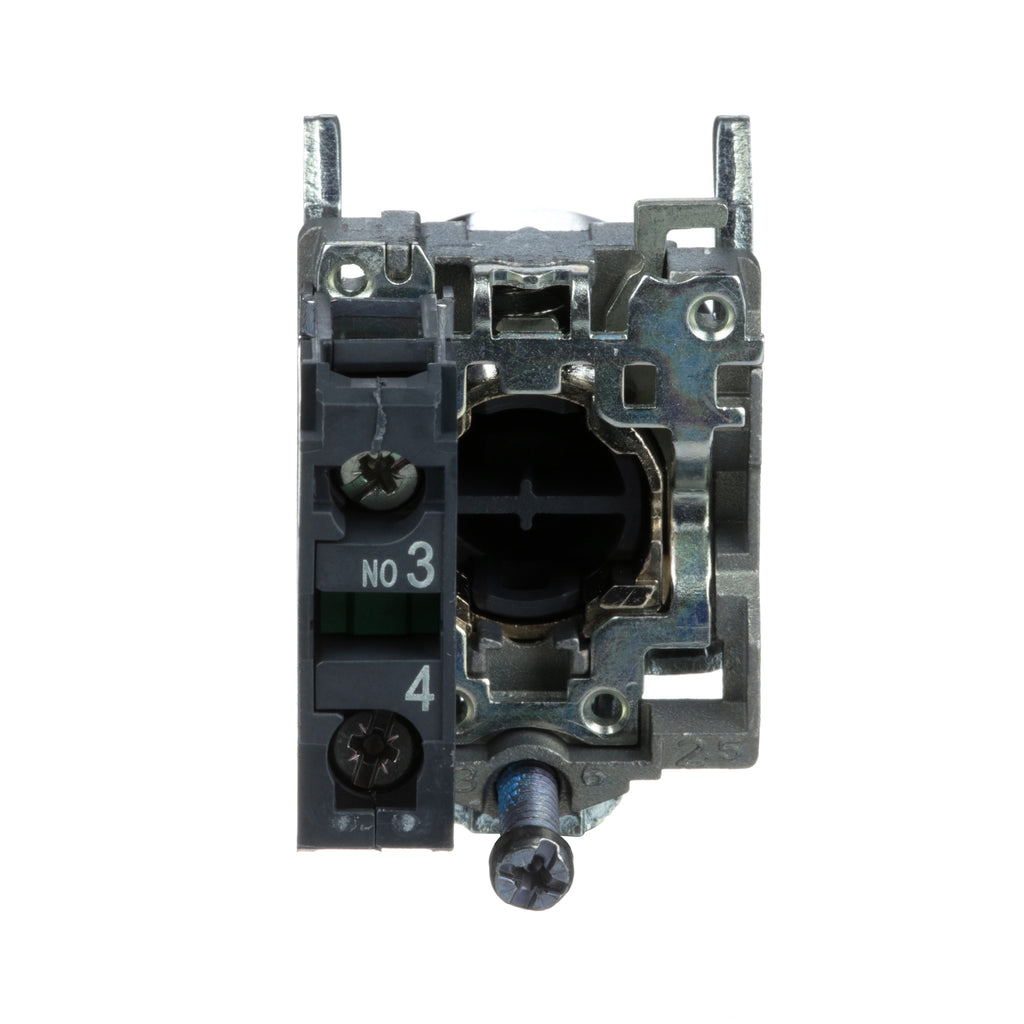

• Contact Configuration: SPST-NO (1 Normally Open)
• Actuator Type: Flush, Round Green Button
• Mounting Type: Panel Mount, 22mm Hole Diameter
• Bezel: Chromium Plated Metal
• Contact Material: Silver Alloy (AgNi)
• Protection Ratings: IP66, IP67, IP69, IK06
• Mechanical Durability: 10,000,000 cycles
• Terminal Type: Screw Clamp
• Series: Harmony XB4
• Operating Temperature: -25 to 70°C

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XB4BA31
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Switch
• Item Subcategory : Pushbutton Switch
• Type : Harmony XB4 Series
• Voltage : 120

Product Data

• UPC : 38911088695
• GTIN : 03389110886955
• Country of Origin : France
• Dimensions : 1.9 in (47 mm) x 1.2 in (30 mm) x 2.05 in (52 mm) (Height x Width x Depth)
• Weight : 0.174 lb
• Certification : Bureau Veritas, CSA, CSA C22.2 No.14, DNV, EN/IEC 60947-1, EN/IEC 60947-5-1, EN/IEC 60947-5-4, EN/IEC 60947-5-5, Germanischer Lloyd (GL), JIS C8201-1, JIS C8201-5-1, Lloyd's Register, REACH, RoHS, UL 508, UL Listed, WEEE
