Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Control Stations
Description
XALD101H29H7

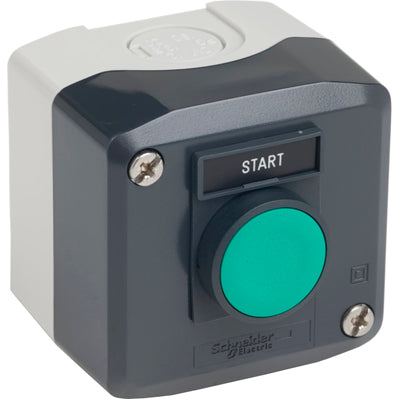

XALD101H29H7 is a ready-to-use control station from the Square D Harmony XALD series, designed for start functions in motor control applications. This unit features a 22mm green flush push button marked START, with a spring return and 1NO contact configuration.Constructed with a durable dark grey polycarbonate enclosure, the XALD101H29H7 is suitable for a variety of industrial environments. The station is designed for easy mounting and integration into control panels, providing reliable operation for motor start commands.
- Manufacturer: Square D
- Series: Harmony XALD
- Enclosure Material: Polycarbonate
- Enclosure Color: Dark Grey
- Operator Type: Flush Push Button
- Button Color: Green
- Legend: START
- Contact Configuration: 1NO
- Button Size: 22mm
- Operating Force: 3.8 N
- Operating Temperature: -40 to 70°C
- AC Voltage Rating: 600 VAC
- DC Voltage Rating: 300 VDC
- Current Rating: 10 A
- AC Contact Rating: 1.2 A @ 600 V, 3 A @ 240 V, 6 A @ 120 V
- NEMA Enclosure Rating: 13, 4X
- Certifications: UL, CSA
Specifications
- Part Number: XALD101H29H7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Control Stations
- Family : XALD
- Voltage : 600 600
Product Data
- UPC : 785901135432
- Country of Origin : France
- Dimensions : 2.68 in H x 2.68 in W x 2.09 in D 2.68 in W x 2.09 in D x 2.68 in H
- Weight : 0.3 lb
- Certification : CSA, UL Listed
