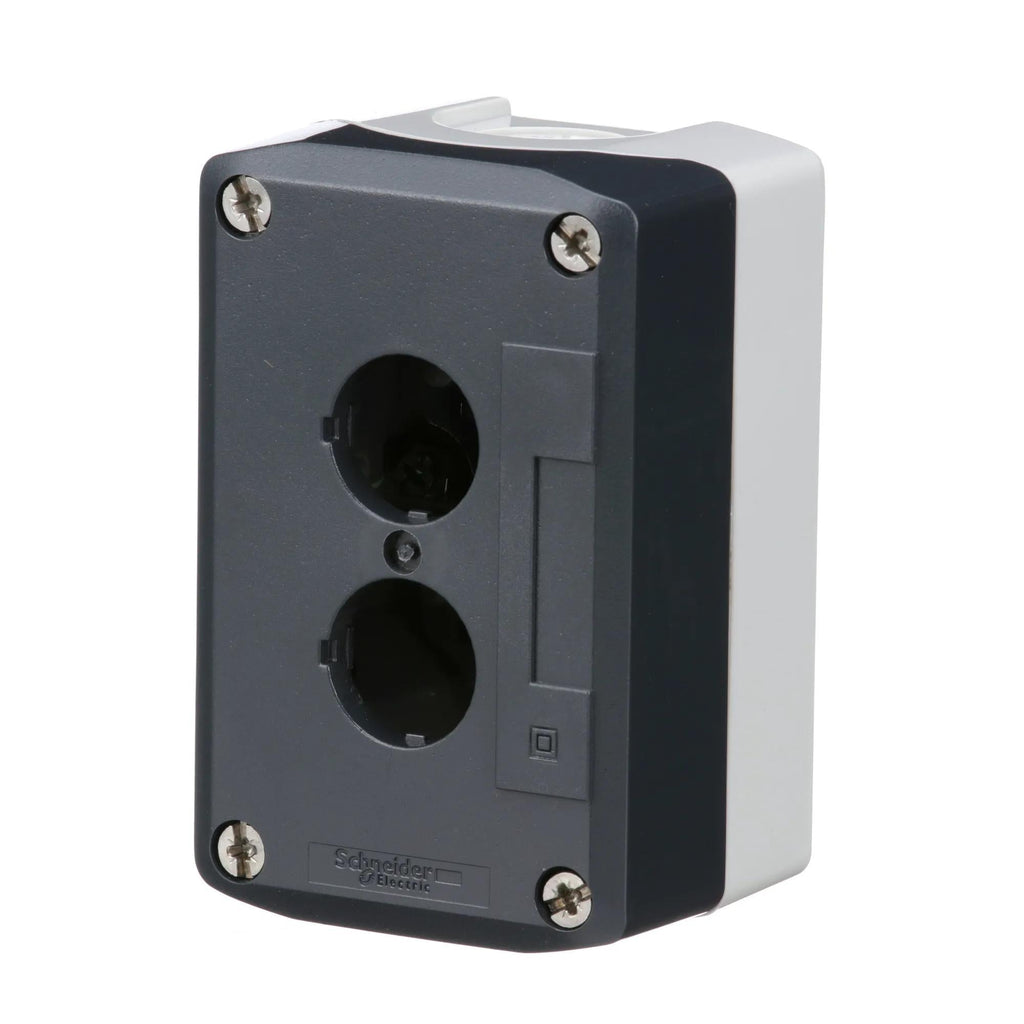

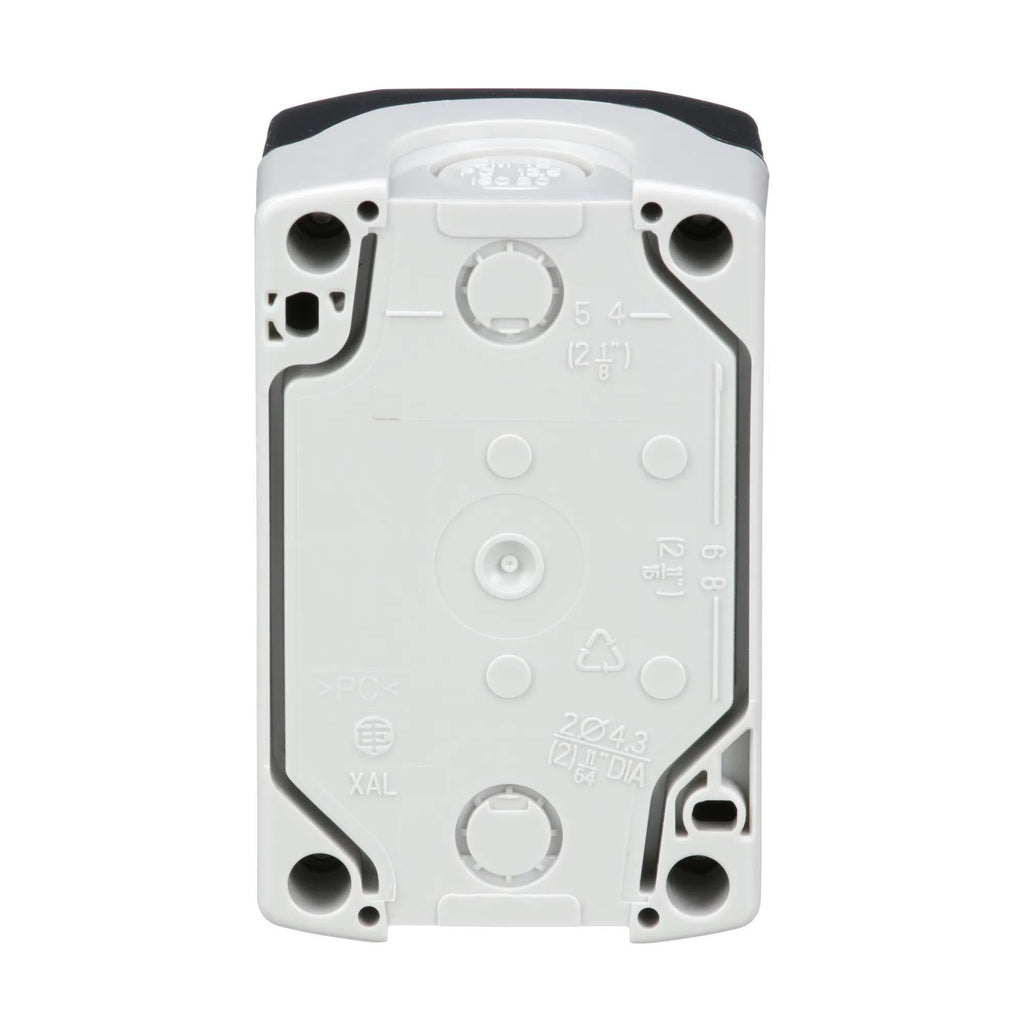

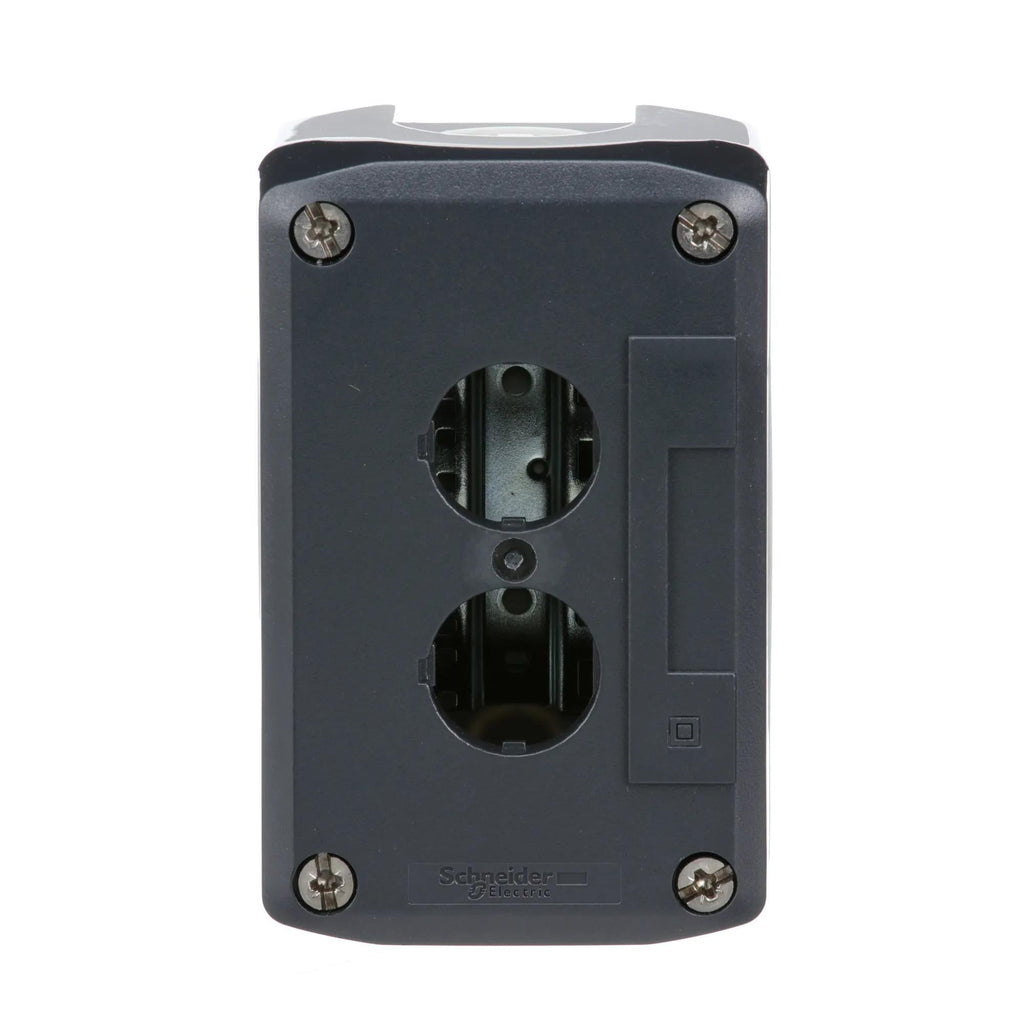

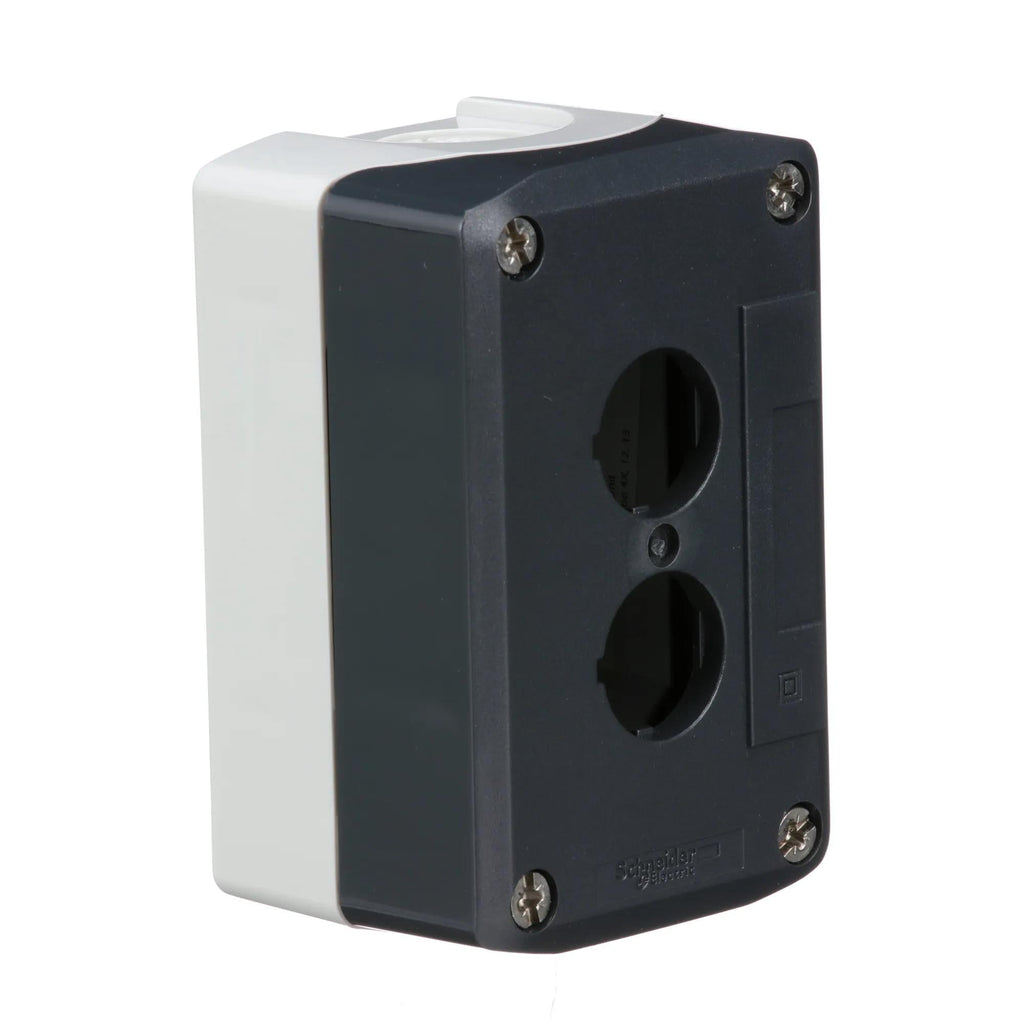

XALD02H7 - Square D Harmony 2-Opening Push Button Enclosure NEMA 1, 4X, 12, 13 Polycarbonate

XALD02H7

XALD02H7 is a Harmony 2-opening push button enclosure designed for use with 22mm control and signaling units. This enclosure provides a durable polycarbonate housing for industrial control applications.Featuring a dark gray lid with a light gray base, the XALD02H7 is compatible with all XB5 series push buttons, pilot lights, selector switches, and joysticks. The modular design allows for easy installation and cabling, making it suitable for a wide range of control functions including start, stop, start-stop, and emergency stop. The enclosure is rated for NEMA 1, 4X, 12, and 13 environments, providing protection against dust, water, and oil.

• 2 openings for 22mm operators
• Polycarbonate construction
• Dark gray lid with light gray base
• Compatible with Harmony XB5 series
• Modular system for easy installation
• UL/CSA certified
• NEMA 1, 4X, 12, 13 rated
• IP67/IP69K rated
• Operating temperature: -40 to 70°C
• Ready-to-install control station
• Universal cabling system

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XALD02H7
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Pilot Device
• Section : Push button switch
• Family : XALD
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 785901114932
• Country of Origin : Czechia
• Dimensions : 68 mm W x 53 mm D x 106 mm H
• Weight : 0.408 lb
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : RoHS
