XACA205 - Schneider Electric 10A 600V Pendant Control Station, 2 Push Buttons, Panel Mount, NEMA 4/4X

XACA205

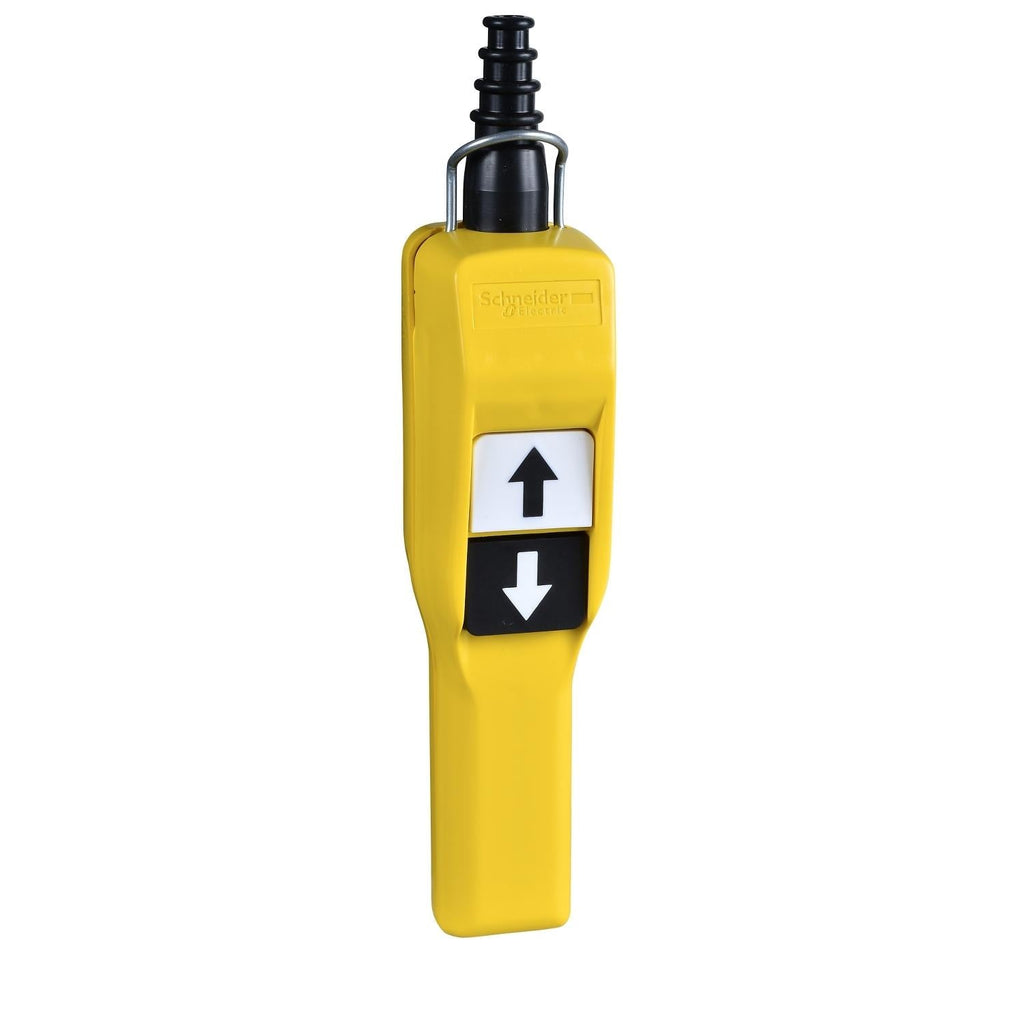

XACA205 is a Schneider Electric pendant control station designed for motor control applications with a pistol grip and 2 push buttons.This pendant station features a durable polypropylene enclosure with a yellow finish, designed for panel mounting. It includes 2 mechanically interlocked push buttons with 1 normally closed (NC) and 1 normally open (NO) contact each, suitable for controlling single-speed hoist motors. Rated for 10 amps and 600 volts AC, it offers NEMA 4/4X protection for dust and water resistance, with screw clamp terminal connections and an operating temperature range from -13 to 158 degrees Fahrenheit.

Key Specifications
• Amperage: 10 A
• Voltage: 600 V AC
• Contact Configuration: 1NC + 1NO per push button
• Number of Push Buttons: 2
• Mounting Type: Panel mount
• Enclosure Material: Polypropylene
• NEMA Rating: 4/4X (IP65)
• Operating Temperature: -13 to 158 °F
• Connection Type: Screw clamp terminals
• Color: Yellow
• Series: Harmony XAC
• Country of Origin: France/USA

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XACA205
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Temp Rating : -13–158 °F (-25–70 °C)

Product Data

• UPC : 038911064502
• GTIN : 00389110645029
• Country of Origin : France
• Dimensions : 3.5 in x 2.3 in
• Weight : 0.622
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : CSA, UL Listed
