XACA201 - Schneider Electric Harmony Pendant Station, 10A 600V, 2 Push Buttons, Pistol Grip, NEMA 4/4X, Panel Mount, Slow-Break, Mechanical Interlock, Yellow Polypropylene Enclosure

XACA201

XACA201 Schneider Electric Harmony pendant station provides reliable motor control for single-speed hoist applications.

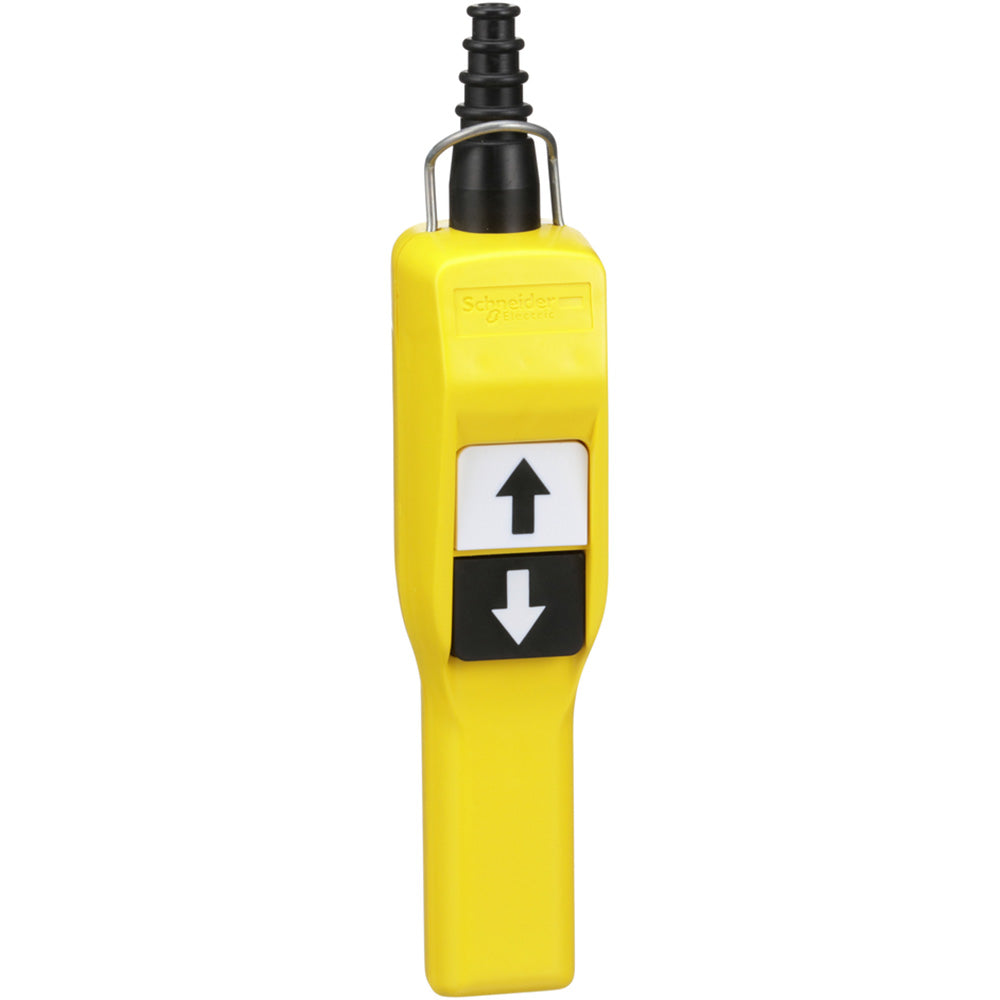

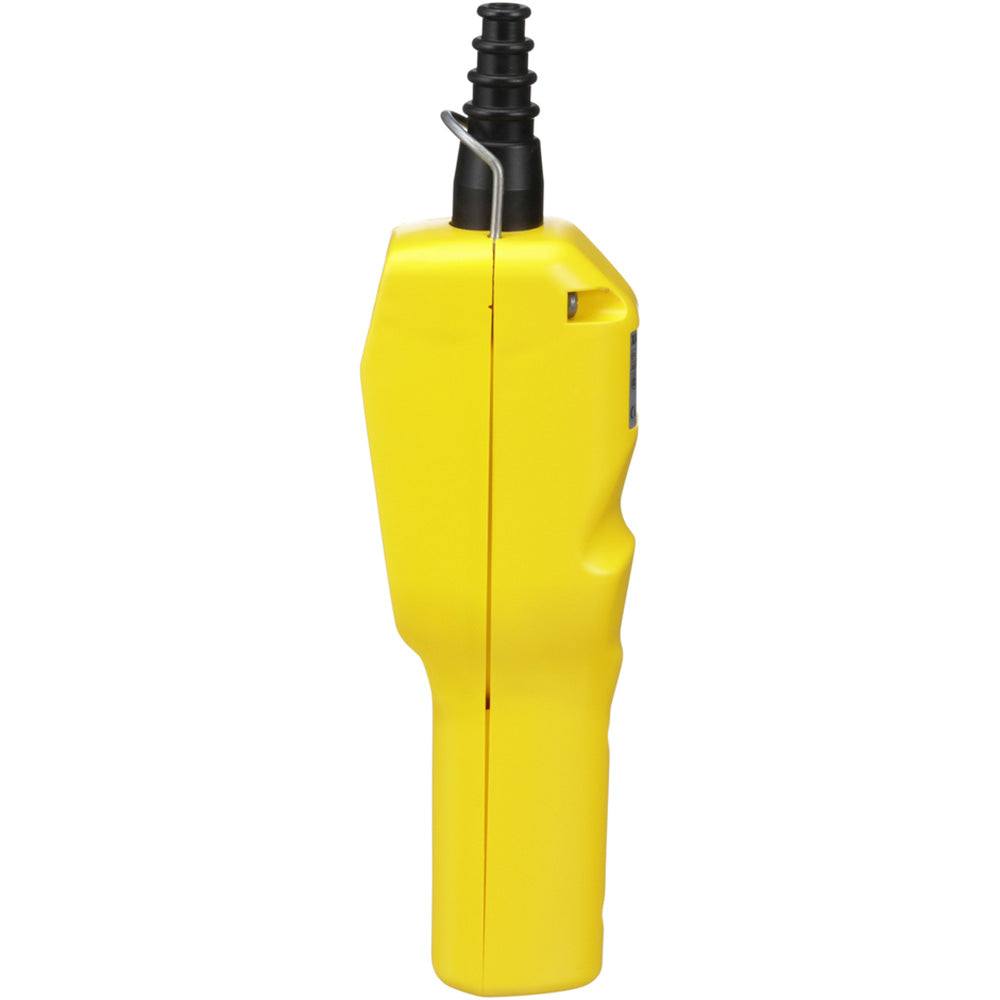

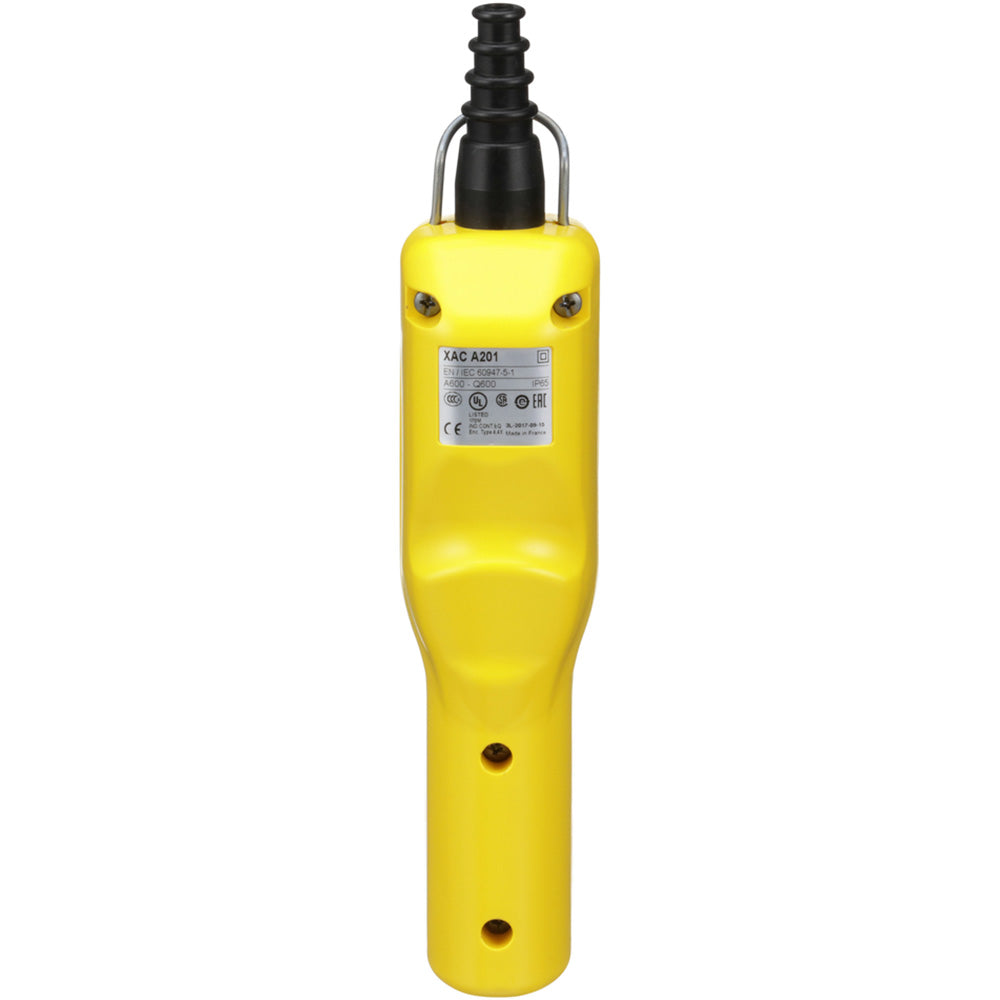

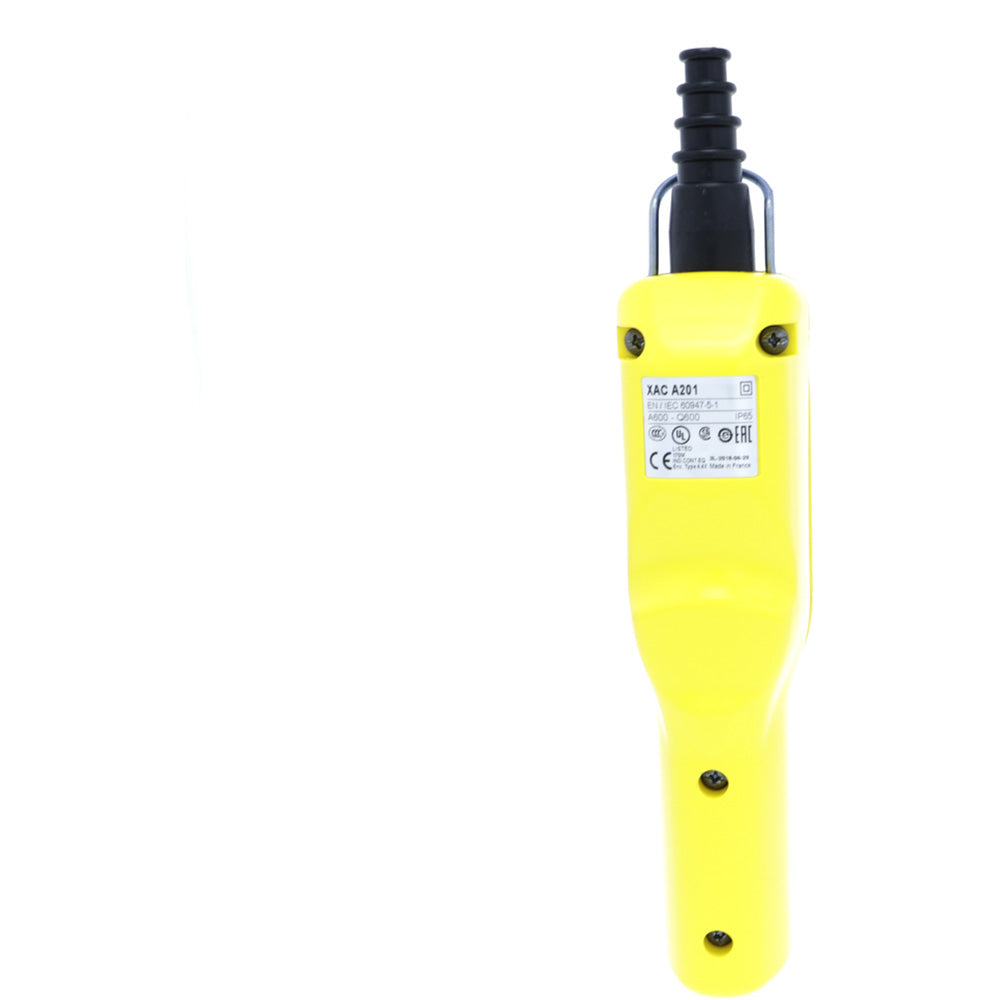

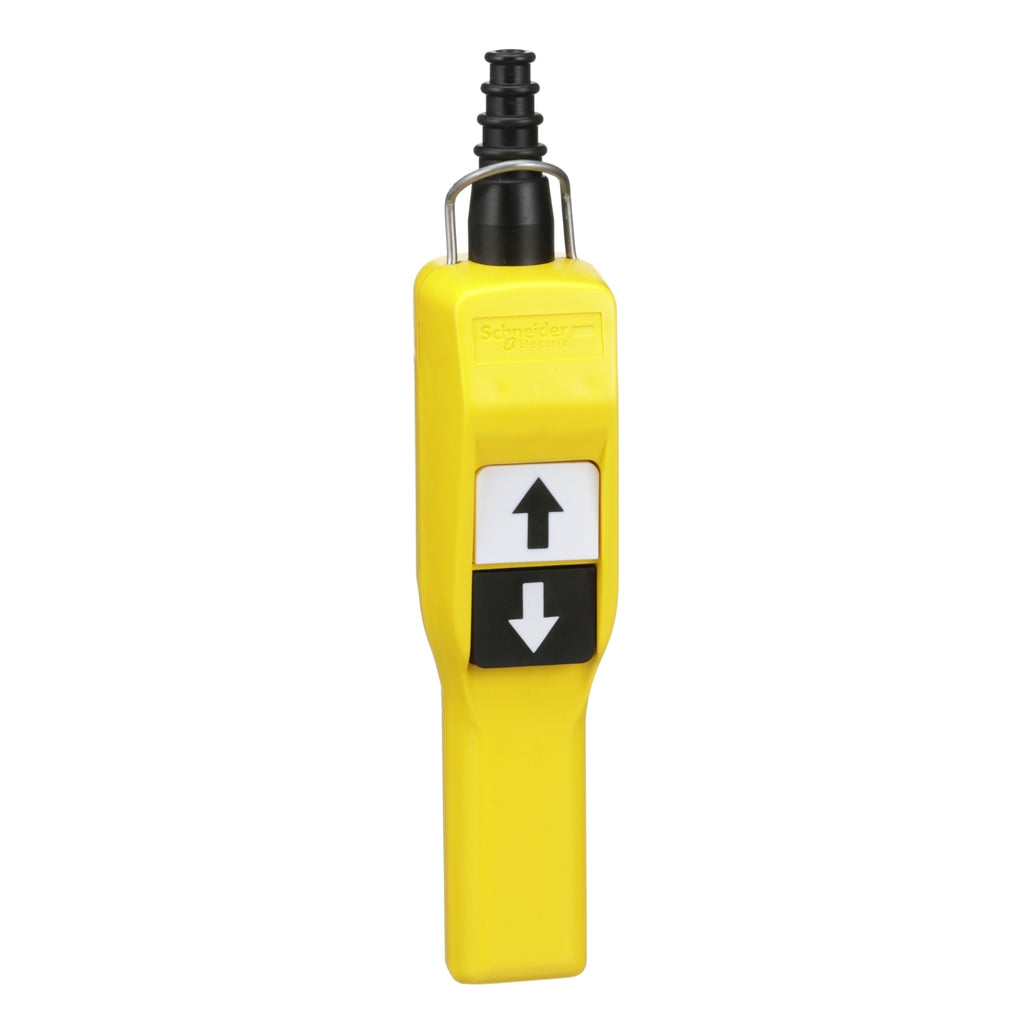

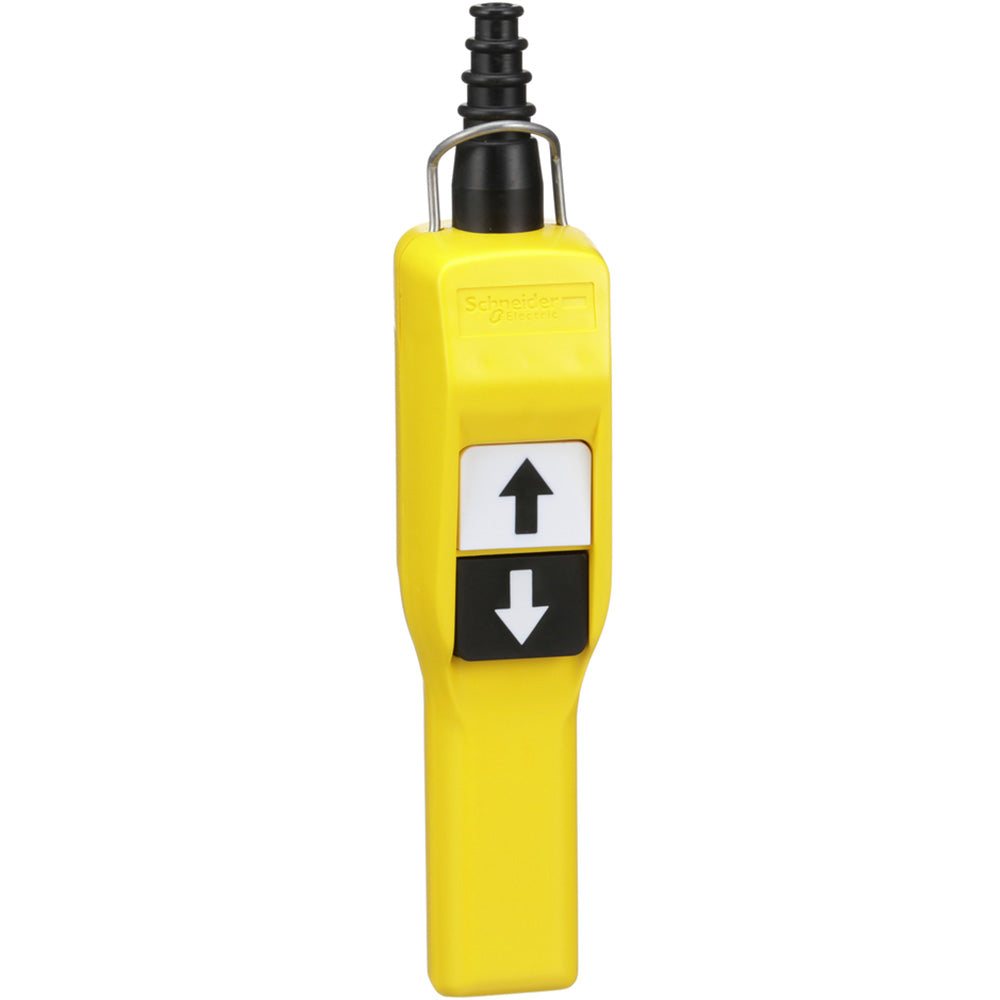

This ready-to-use control station features a yellow, impact-resistant polypropylene enclosure with an ergonomic pistol grip for single-handed operation. It includes two mechanically interlocked, slow-break push buttons (raise and lower) for safe, intuitive control. The unit is designed for panel mounting and offers a solid rubber grommet junction for maximum water tightness.

Key Specifications

• Amperage: 10A
• Voltage: 600V AC
• Poles: DPST (Double Pole, Single Throw)
• Mounting Type: Panel
• Interrupt Rating: Not specified
• Series/Frame: Harmony XAC, Medium-Duty
• Trip Unit: Not applicable
• Certifications: NEMA 4/4X
• Contact Configuration: 1NO (Normally Open) per button
• Actuator: 2 push buttons, mechanically interlocked, slow-break
• Enclosure: Yellow polypropylene, impact resistant
• Connection: Screw clamp terminal
• Operating Temperature: -25 to 70°C
• Dimensions: 80 mm W x 314 mm H
• Country of Origin: France

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: XACA201
• Manufacturer : Schneider Electric
• Brand : Schneider Electric
• Category : Motor Control
• Item Subcategory : Motor Control Part And Accessory
• Voltage : 600
• Temp Rating : -13–158 °F (-25–70 °C)
• Aux Contacts : 2NO

Product Data

• UPC : 038911064500
• GTIN : 03389110645002
• Country of Origin : France
• Dimensions : 2.76 in x 4.33 in
• Weight : 0.556
• Temp Rating : -13–158 °F (-25–70 °C)
• Certification : EN, IEC, UL, NEMA, CSA, CCC, GOST, JIS, CE
