Product Info
- Manufacturer:Schneider Electric
- Sub-Category:Motor Control Part And Accessory
Description
XACA03H7

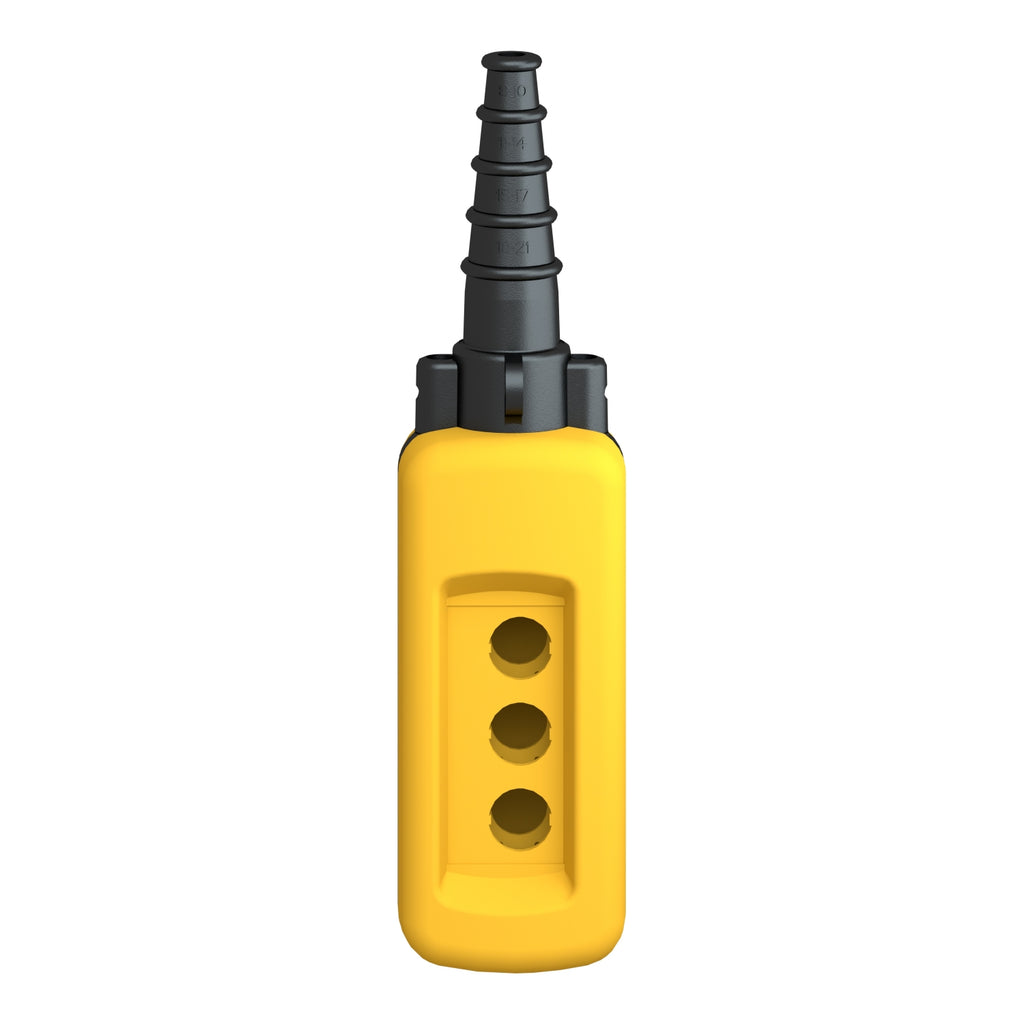

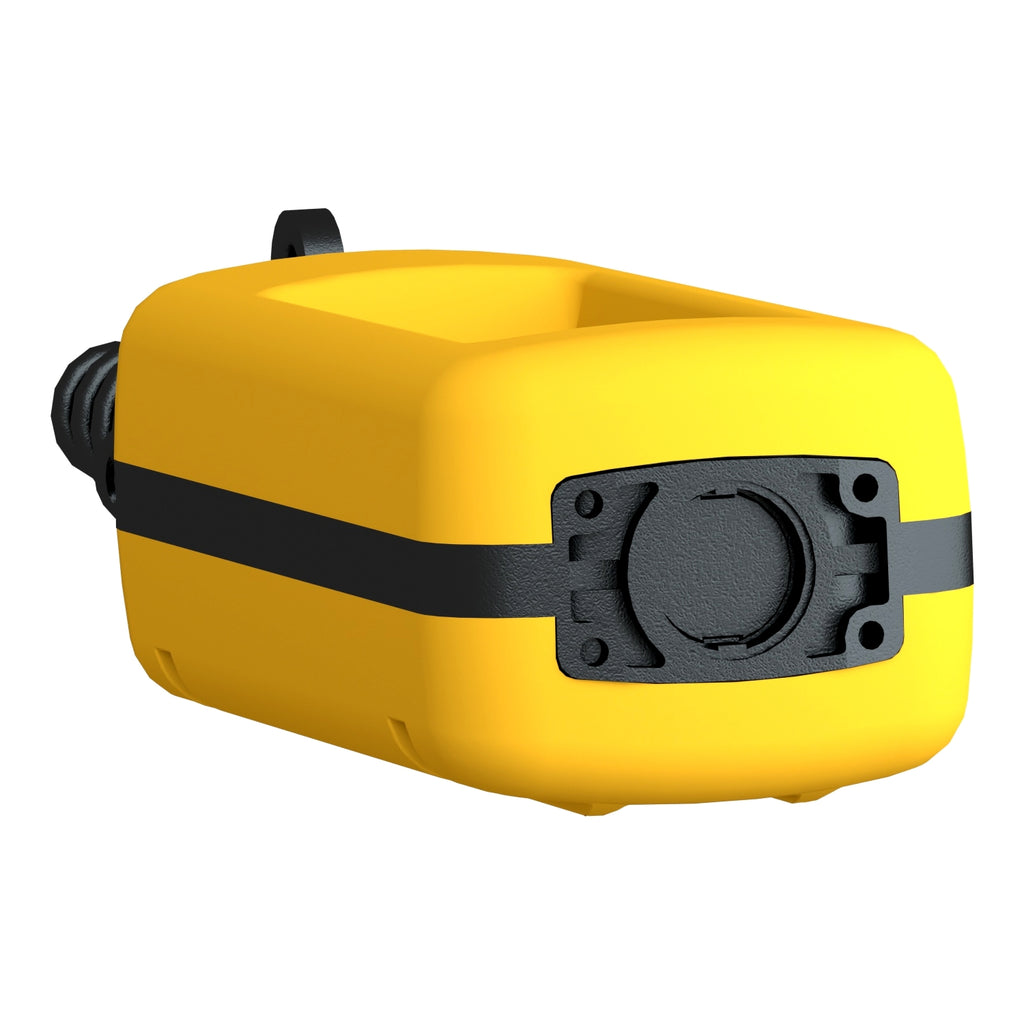

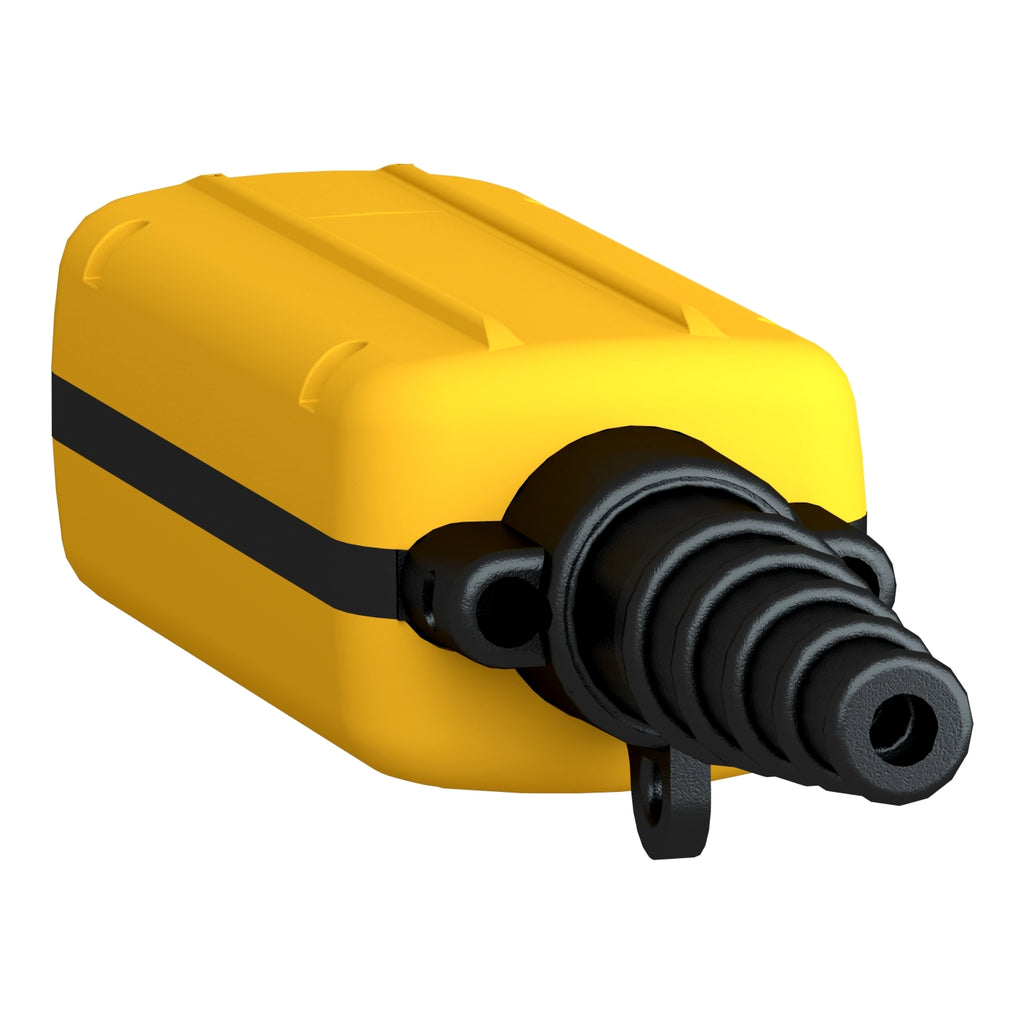

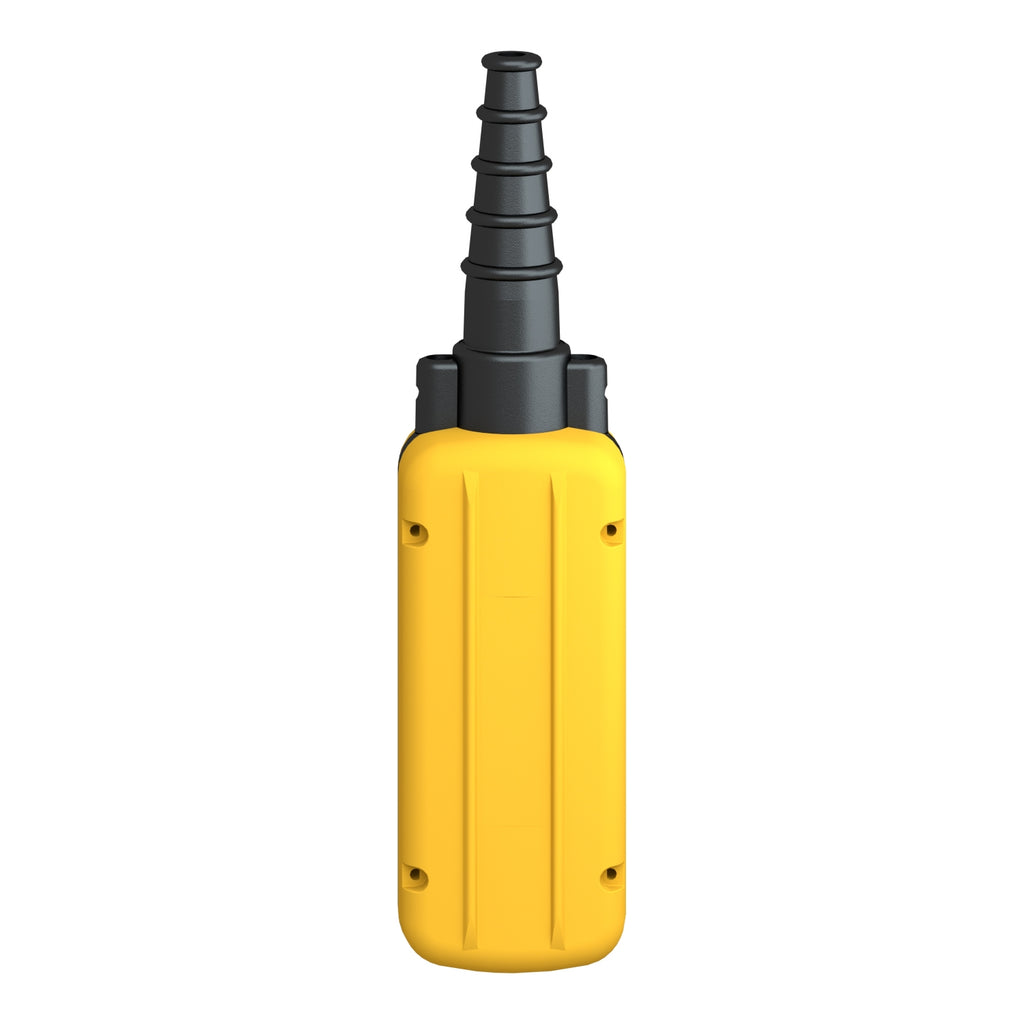

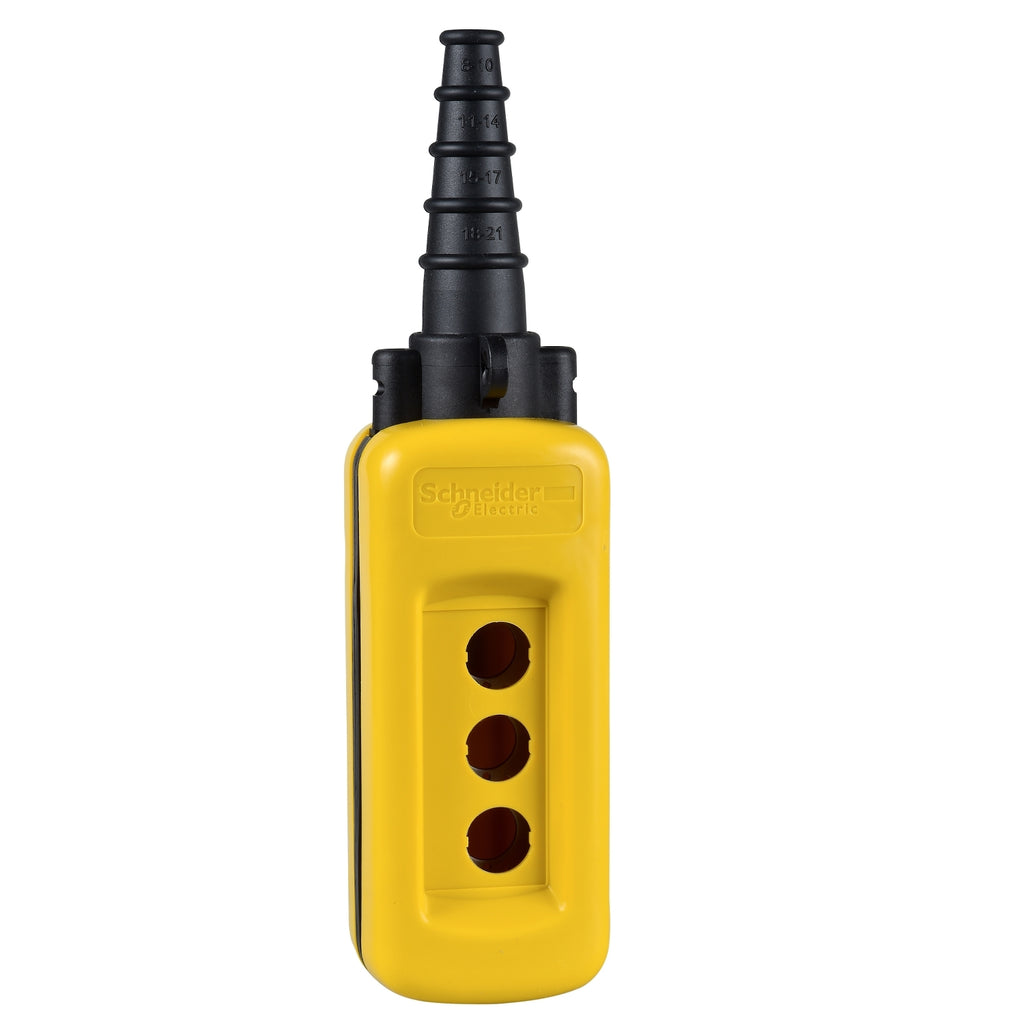

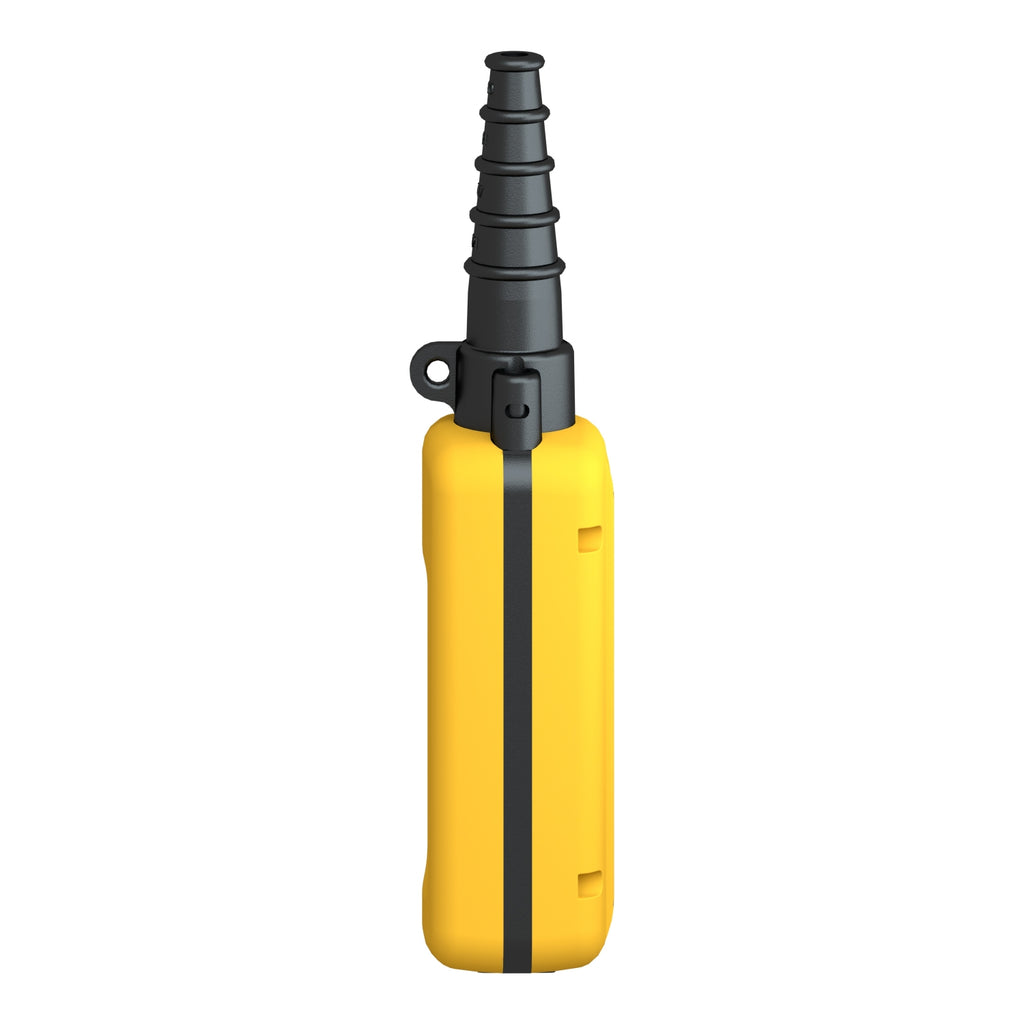

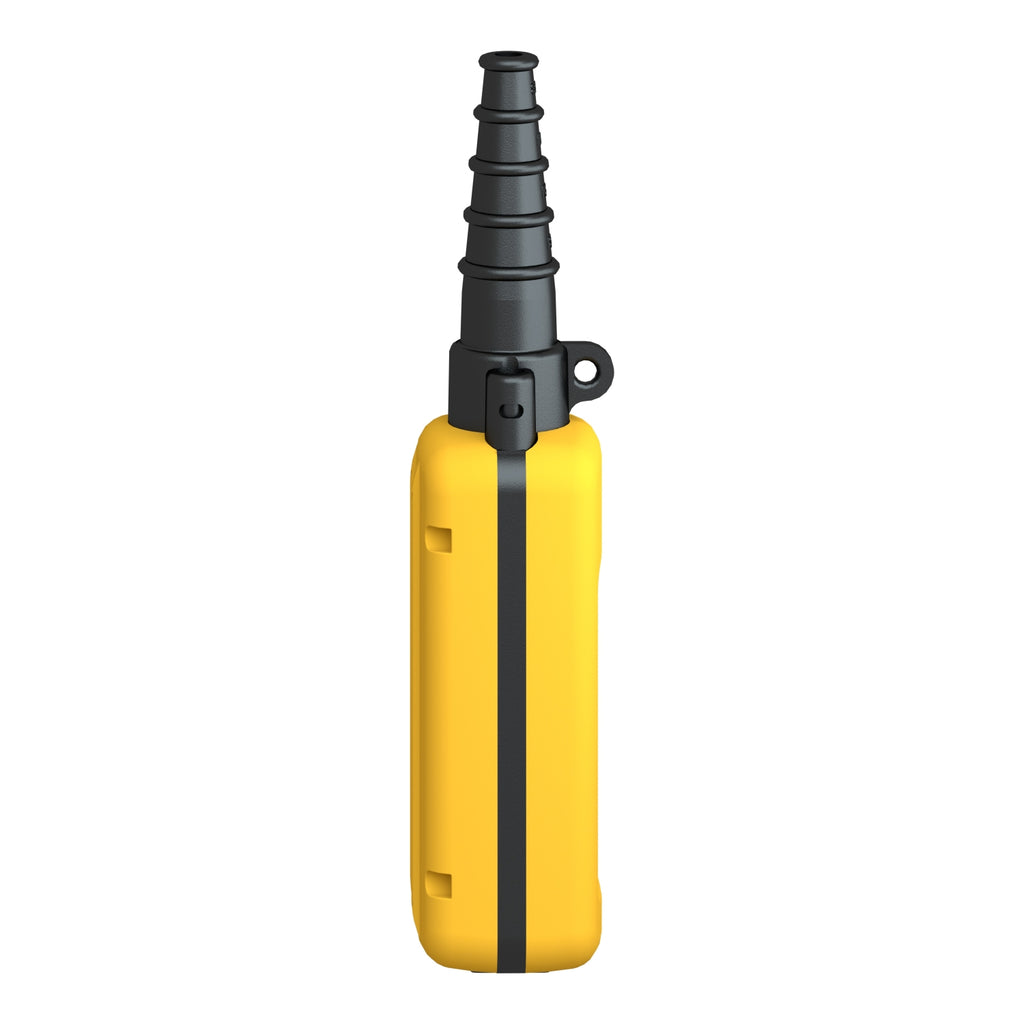

XACA03H7 is a 3-hole yellow polypropylene pendant control station enclosure designed for industrial motor control applications. This empty station provides a durable housing for mounting control circuit components and pushbuttons. The XACA03H7 features three vertical 22mm openings for mounting control devices, making it suitable for a variety of operator interface needs. Constructed from polypropylene, the enclosure offers resistance to impact and environmental factors. The yellow color provides high visibility in industrial settings, and the design supports pendant mounting for flexible installation.
- Part Number: XACA03H7
- Manufacturer: Square D
- Number of Holes: 3
- Hole Diameter: 22 mm
- Enclosure Material: Polypropylene
- Color: Yellow
- Mounting Type: Pendant
- NEMA Rating: 1, 2, 3, 3R, 4, 4X, 12
- Series: Harmony XAC
- UL Listed
- CSA Certified
Specifications
- Part Number: XACA03H7
- Manufacturer : Schneider Electric
- Brand : Schneider Electric
- Category : Motor Control
- Item Subcategory : Motor Control Part And Accessory
- Voltage : 600
- Amperage : 400
- Phase : 3
- Poles : 3
- AIC rating : 65kA@480V
- Connection : Feed-Thru
- Functions : LSIG - Long-Time, Short-Time, Instantaneous and Ground Fault
- Protection : Solid State
Product Data
- UPC : 785901393979
- Country of Origin : Czechia
- Dimensions : 3.15 in x 12.36 in
- Weight : 1.102 lb
- Certification : CSA, EN/IEC, IP65, RoHS, UL Listed
