Product Info
- Manufacturer:ACP Electrical Fittings
Description
X150ACG

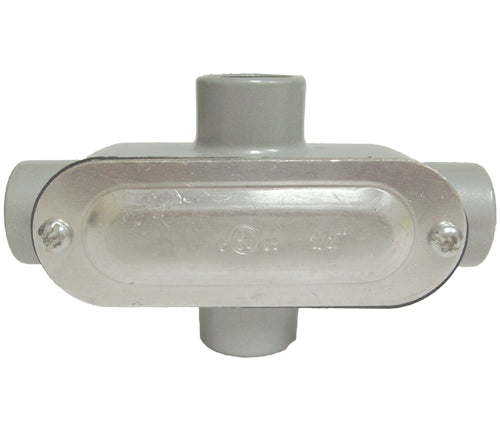

X150ACG is a 1-1/2 inch aluminum die cast conduit body fitting from ACP Electrical Fittings designed for secure electrical installations.Technical Description: This conduit body features a die cast aluminum construction with a stamped aluminum cover and neoprene rubber gasket, providing a raintight seal when installed properly. It includes tapered threaded NPT hubs suitable for use in concrete applications. The fitting meets UL 514A, Federal Specification W-C-586D, and NEMA FB-1 standards.
- Trade Size: 1-1/2 inch
- Material: Die cast aluminum, copper free
- Cover: Stamped aluminum with neoprene gasket
- Mounting: Tapered threaded NPT hubs
- Dimensions: 8-1/4" x 4-1/2" x 2-3/4"
- Weight: 10 lbs per 100 units
- Application: Provides access for pulling, splicing, and maintenance of conductors
- Standards: UL 514A, Fed. Spec. W-C-586D, NEMA FB-1
Specifications
- Part Number: X150ACG
- Manufacturer : ACP Electrical Fittings
- Brand : ACP Electrical Fittings
Product Data
- Weight : 5.19
