Product Info
- Manufacturer:ACP Electrical Fittings
Description
X100ACG

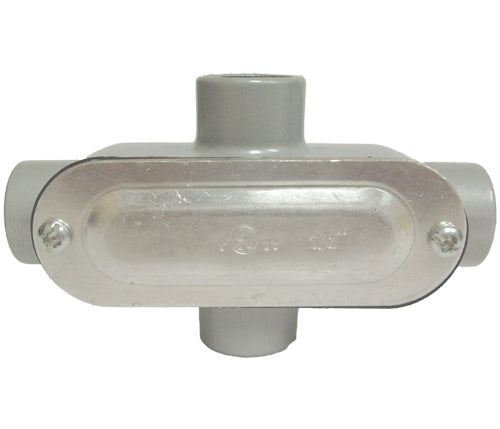

X100ACG is an aluminum die cast conduit body by ACP Electrical Fittings designed for durable and reliable electrical wiring access.This conduit body features tapered threaded hubs with 1 inch NPT size, a stamped aluminum cover with neoprene rubber gasket for raintight installation, and is suitable for use in concrete. It meets UL 514A, Fed. Spec. W-C-586D, and NEMA FB-1 standards, providing secure access for conductor pulling, splicing, and maintenance.
- Material: Aluminum die cast, copper free
- Trade Size: 1 inch
- Dimensions: 6-1/2" x 3-1/2" x 2-1/8" (A x B x C)
- Thread Type: Tapered NPT threaded hubs
- Cover: Stamped aluminum with neoprene gasket
- Raintight when installed with cover and gasket
- Suitable for concrete installation
- Standards: UL 514A, Fed. Spec. W-C-586D, NEMA FB-1
- Weight: 71 lbs per 100 units
Specifications
- Part Number: X100ACG
- Manufacturer : ACP Electrical Fittings
- Brand : ACP Electrical Fittings
Product Data
- Weight : 5 lb
