WSRDW10352CH - Eaton Wiring Devices 100A 480/600V

WSRDW10352CH

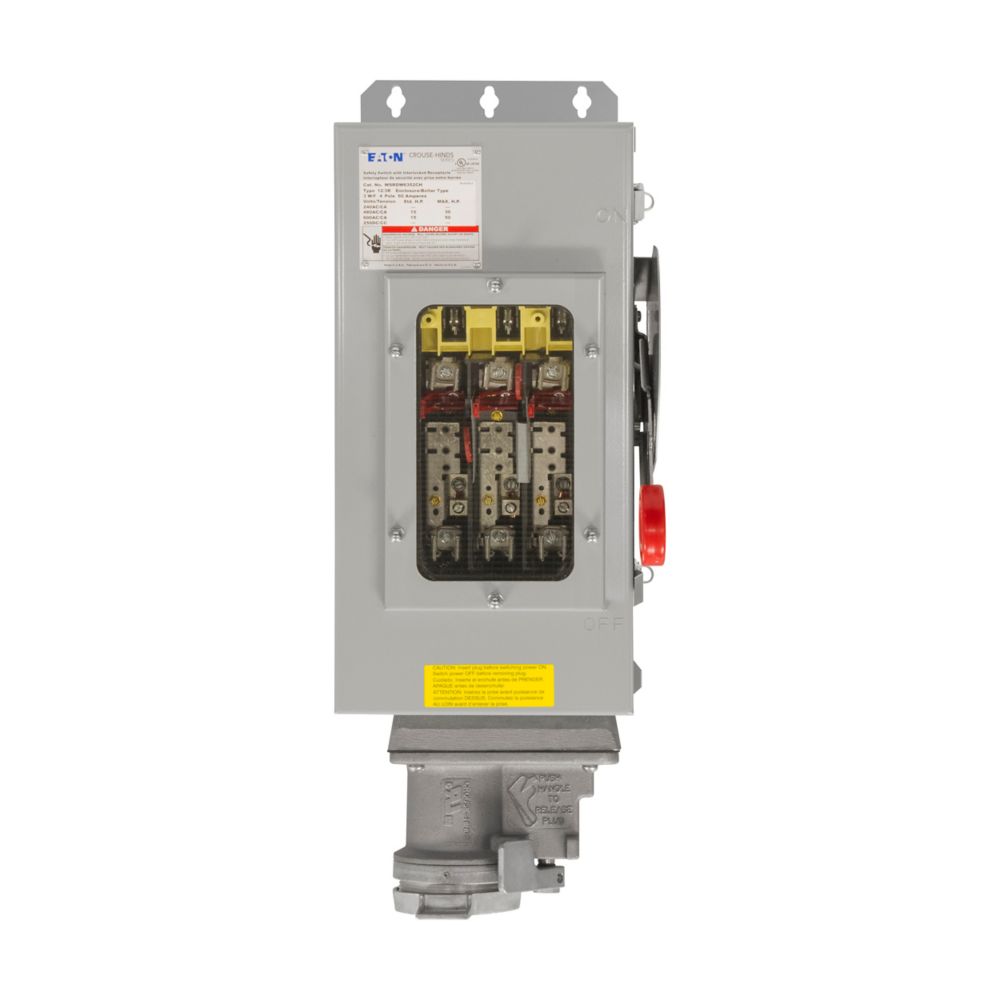

WSRDW10352CH is an Eaton Crouse-Hinds series Arktite interlocked receptacle with enclosed safety disconnect switch designed for portable and fixed electrical equipment connections. This grounding style 2 fusible receptacle features a windowed door, spring door receptacle style, and brass contacts for reliable performance in ordinary/non-hazardous locations. The unit is rated for 100A at 480/600 VAC with three-wire, four-pole configuration and includes factory-installed auxiliary contacts. Arktite interlocked receptacles prevent engagement and disengagement of the plug under load, providing safe connections and extended product life. Suitable for service outlets powering generators, compressors, welders, portable tools, conveyors, and lighting systems. Key Specifications

• Part Number: WSRDW10352CH
• Manufacturer: Eaton
• Amperage: 100 A
• Voltage: 480-600 V AC
• Poles: 4
• Wires: 3
• Switch Type: Grounding Style 2 Fusible
• Enclosure: NEMA 3R/12/IP66
• Door Style: Windowed
• Contact Material: Brass
• Horsepower: 60 hp (480 VAC), 75 hp (600 VAC)
• Material: Sheet steel

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WSRDW10352CH
• Manufacturer : Eaton
• Brand : Eaton
• Category : Wiring Devices
• Item Subcategory : Pin and sleeve devices
• Voltage : 480-600 V AC
• Amperage : 100 A
• Poles : 4
• Horse Power : 60-75 hp
• Configuration : Three-wire, four-pole
• Aux Contacts : Factory installed
• Switch Style : Spring door
• Nema Rating : NEMA 3R/12/IP66
• Switch Type : Grounding Style 2 Fusible
• Material : Sheet steel
• Special features : Interlocked receptacle with enclosed safety disconnect switch, windowed door
• Contact material : Brass

Product Data

• UPC : 662276535800
• Dimensions : 10.76 in x 31.05 in x 10.21 in (Length/Depth x Height x Width)
• Weight : 35 lb
