Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
WSRD3352CH-S901

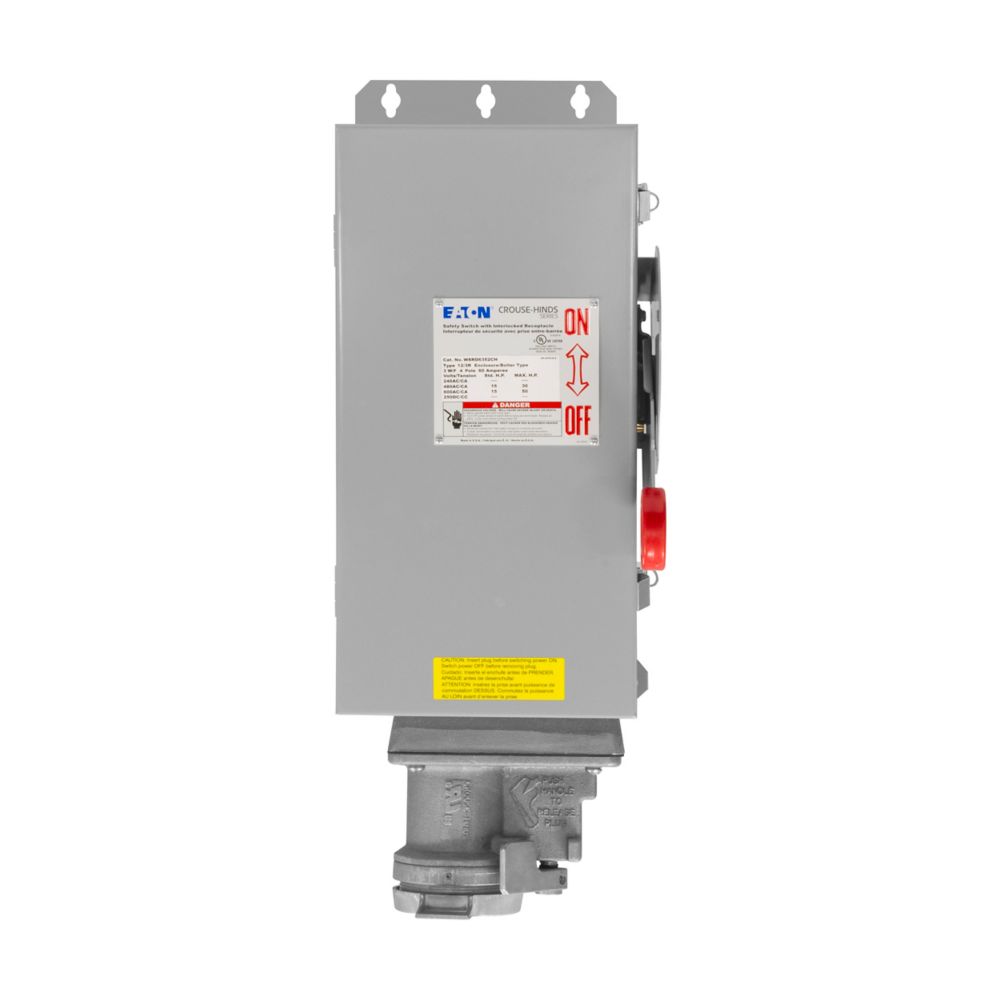

WSRD3352CH-S901 is an Arktite interlocked receptacle with enclosed disconnect switch designed for safe, portable electrical connections. This grounding style 2 fusible receptacle prevents engagement and disengagement under load, providing extended product life for portable or fixed equipment such as generators, compressors, welders, and lighting systems. The unit features a spring door receptacle style with brass contacts, natural finish 304 stainless steel enclosure, and gray epoxy painted copper free aluminum receptacle body. It is NEC compliant, CEC approved, and listed to UL 98, UL 1682, and CSA standards. Key Specifications
- Part Number: WSRD3352CH-S901
- Manufacturer: Eaton Crouse-Hinds
- Amperage: 30 A
- Voltage: 480-600 V
- Poles: 4
- Wires: 3
- Type: Grounding Style 2 Fusible
- Enclosure: NEMA 4/4X/IP66
- Material: 304 Stainless Steel
- Contact Material: Brass
- Horsepower: 15 hp at 480 VAC, 20 hp at 600 VAC
Specifications
- Part Number: WSRD3352CH-S901
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Wiring Devices
- Item Subcategory : Pin and sleeve devices
- Voltage : 480-600 V
- Amperage : 30 A
- Poles : 4
- Horse Power : 15-20 hp
- Nema Rating : NEMA 4/4X/IP66
- Switch Type : Grounding Style 2 Fusible
- Metal Type : 304 Stainless Steel
- Material : 304 stainless steel
- Enclosure Type : Spring door
- Special features : Interlocked receptacle with enclosed disconnect switch
- Contact material : Brass
Product Data
- UPC : 662276535541
- Dimensions : 8.94 in x 23.43 in x 10.21 in (Length/Depth x Height x Width)
- Weight : 27 lb
