WPMV7L-UNV34 - Eaton Crouse-Hinds Lighting and controls LED Wall Pack

WPMV7L-UNV34

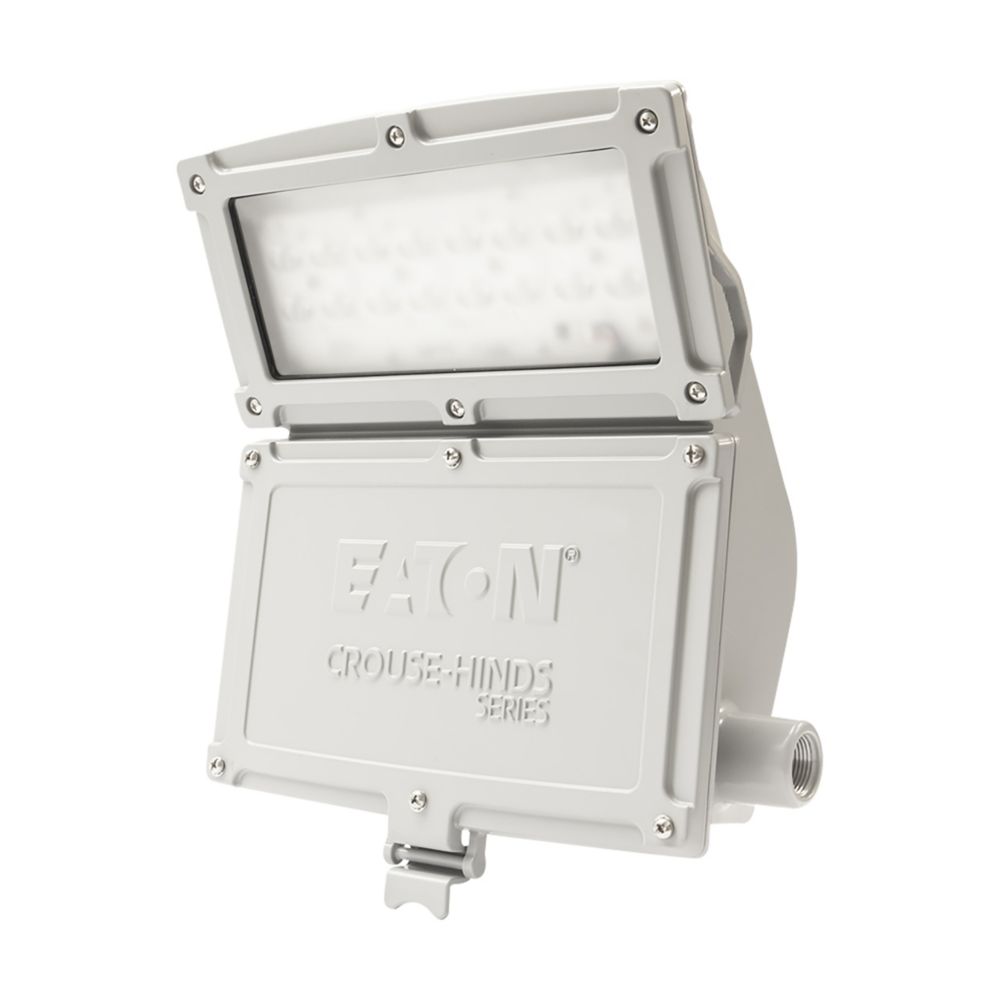

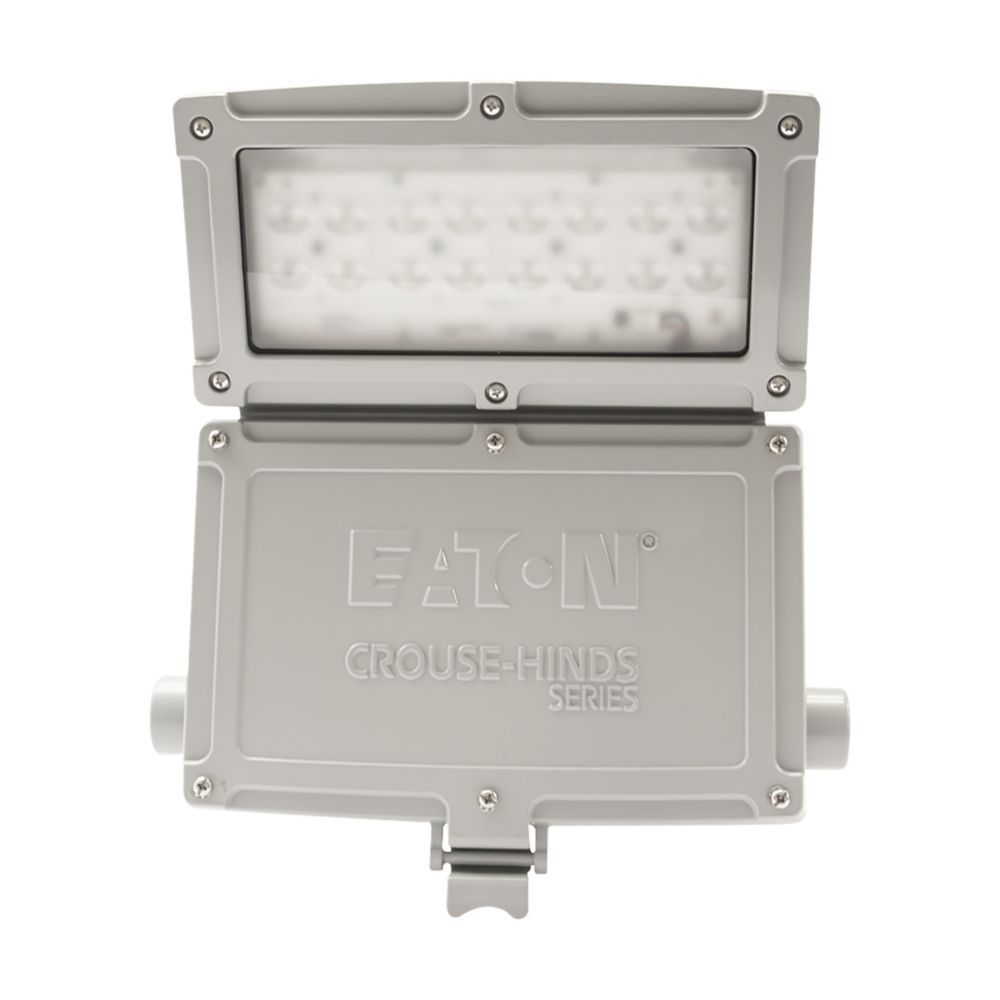

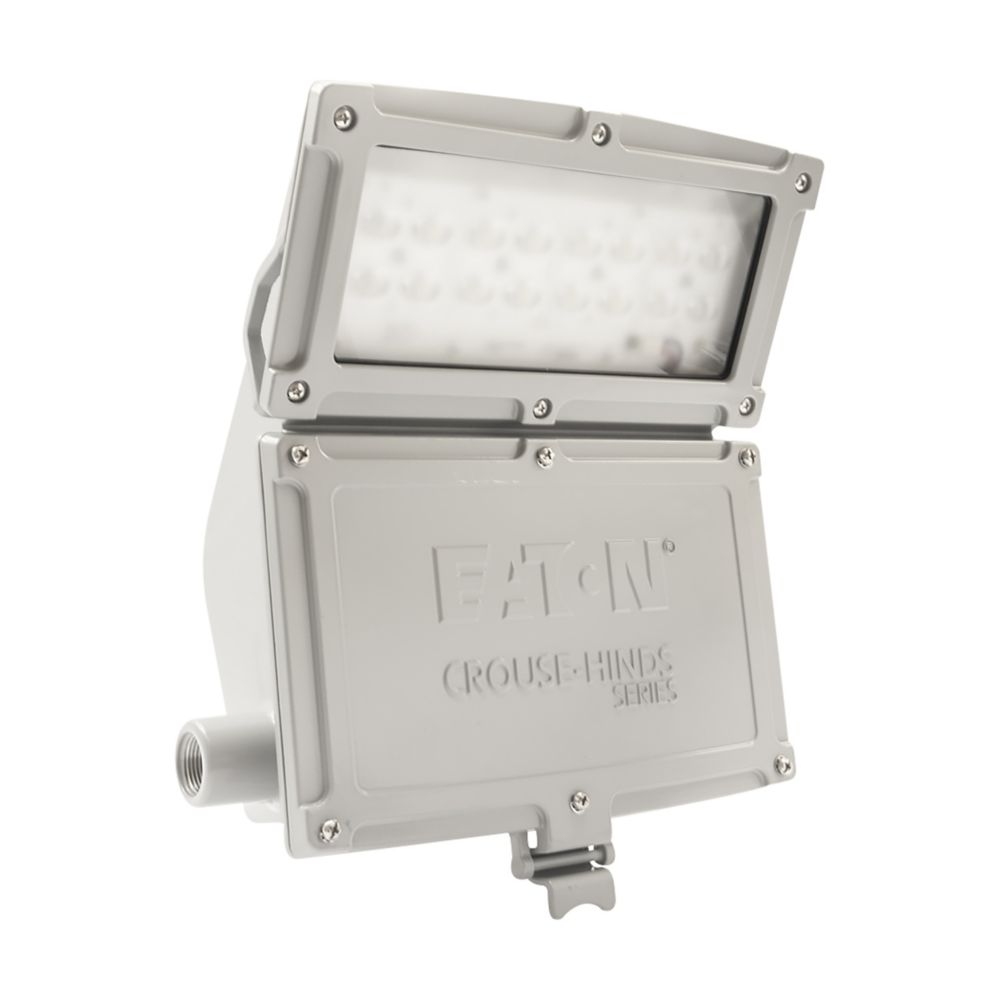

WPMV7L-UNV34 is an Eaton Crouse-Hinds Champ series WPMV LED wall pack designed for ordinary/non-hazardous locations.This dimmable LED fixture delivers 7000 lumens at 115 lm/W with cool white color temperature, operating at 347-480 Vac, 60 Hz, and 0.21 A with 59 W power consumption. It features NEMA 4X/IP66 rating, die cast aluminum construction, yoke mounting, and 7x6 optical distribution through tempered or diffused glass lens.Key Specifications

• Part Number: WPMV7L-UNV34
• Manufacturer: Eaton Crouse-Hinds
• Voltage: 347-480 Vac
• Amperage: 0.21 A
• Lumens: 7000
• Lumens per Watt: 115 lm/W
• Frequency: 60 Hz
• Wattage: 59 W
• Color Temperature: Cool white
• NEMA Rating: 4X
• IP Rating: IP66
• Material: Die cast aluminum
• Mounting: Yoke

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WPMV7L-UNV34
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 347-480 Vac
• Amperage : 0.21 A
• Nema Rating : 4X
• Watts : 59 W
• Enclosure : Die cast aluminum
• Mounting : Yoke
• Hz : 60 Hz
• Material : Die cast aluminum
• Enclosure Type : IP66
• Ingress protection (IP) ratings : IP66
• Lumens : 7000
• Lumens per watt : 115 lm/W
• Color temperature : Cool white
• Mounting Method : Yoke
• Equivalent luminaire : 150-175W
• Dimming : Dimmable driver
• Power factor : > 0.90

Product Data

• UPC : 662276892958
• Dimensions : 9.16 in x 12.76 in x 12.6 in (Length/Depth x Height x Width)
• Weight : 14 lb
