WPMV5L-UNV34-S903D - Eaton Crouse-Hinds Lighting and controls 45W 5000lm

WPMV5L-UNV34-S903D

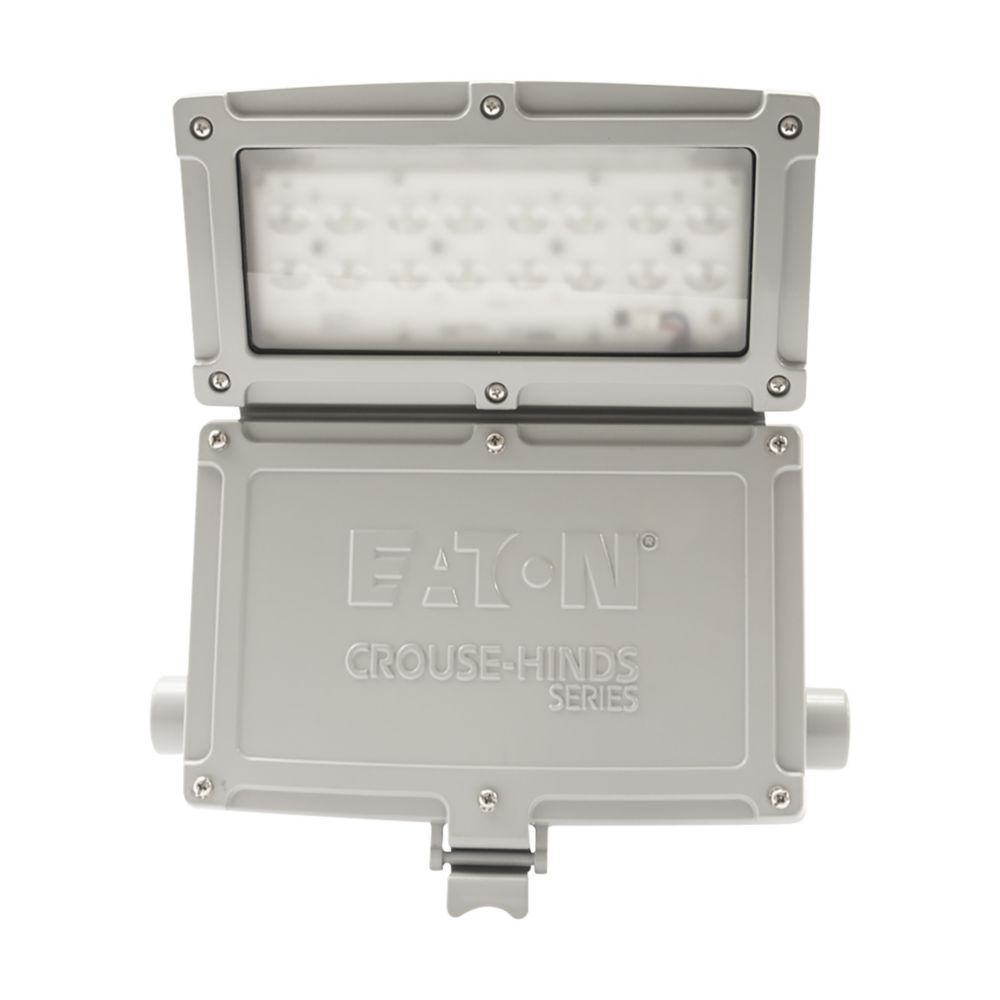

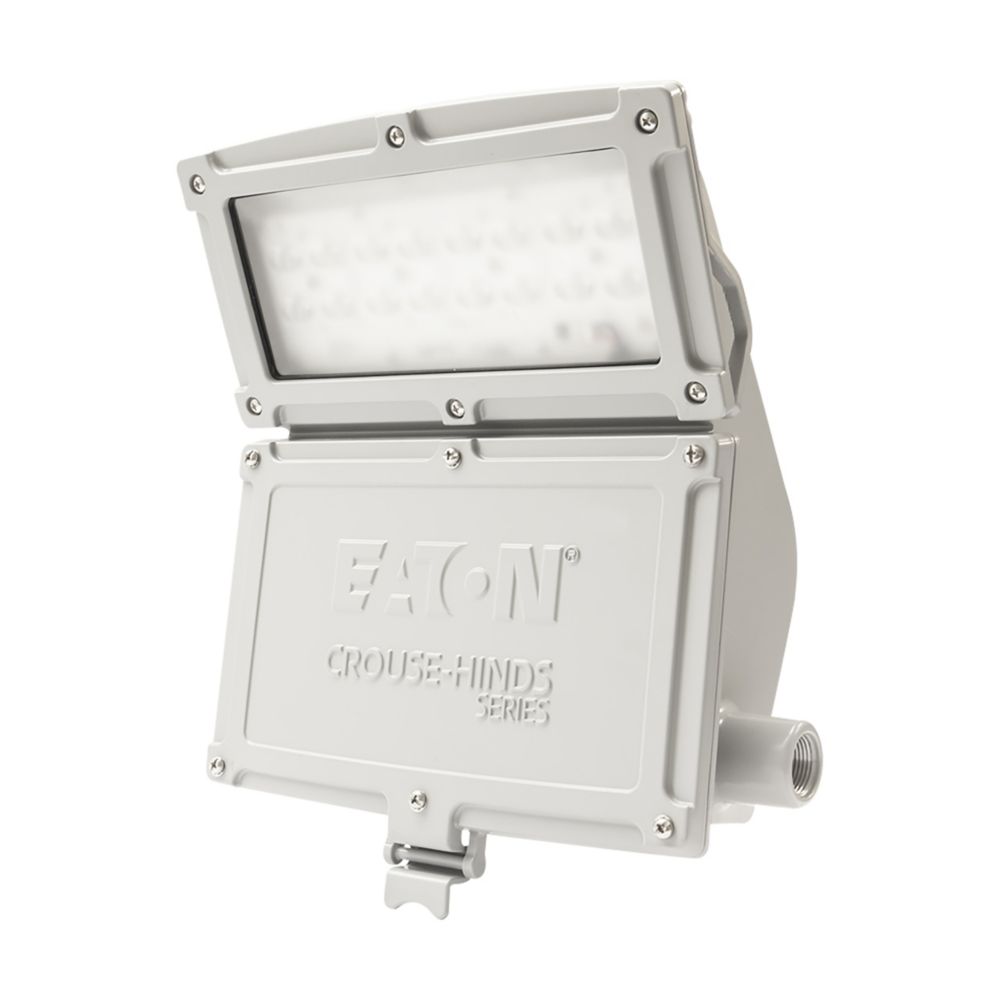

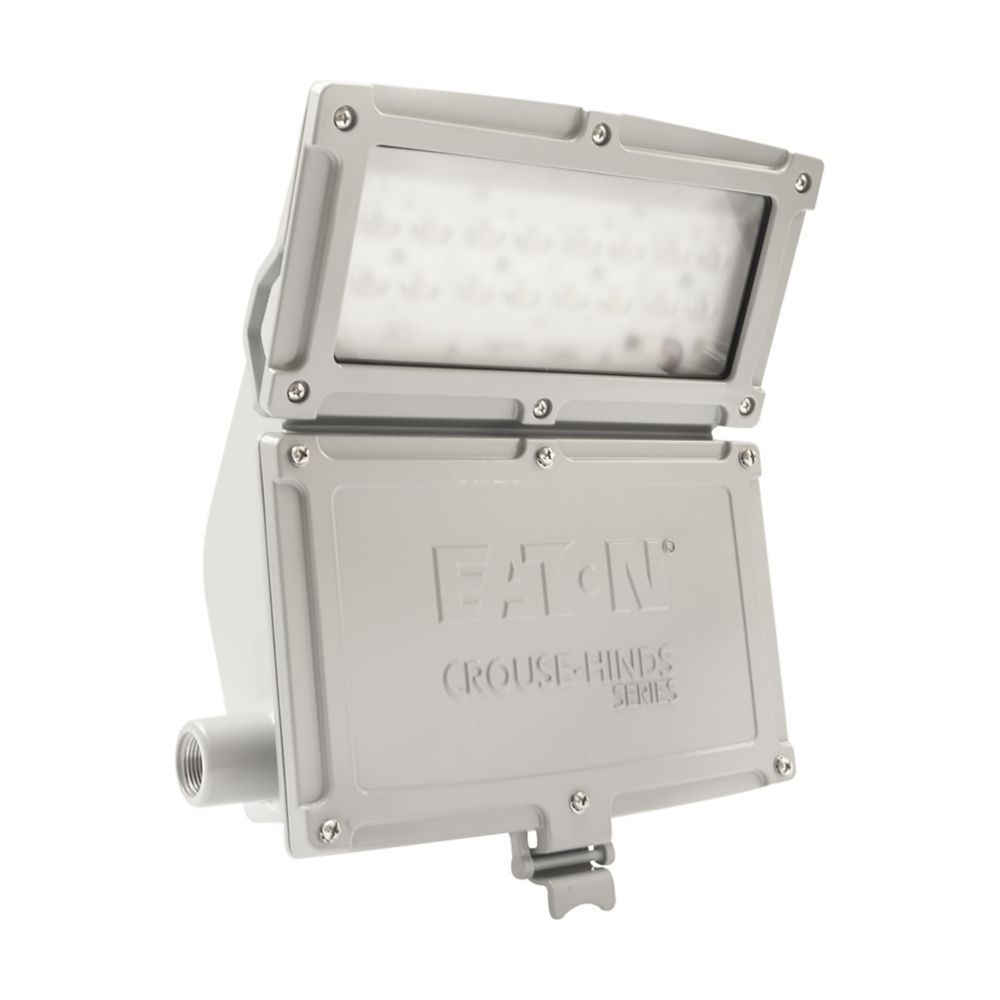

WPMV5L-UNV34-S903D is an Eaton Crouse-Hinds Champ series WPMV LED wall pack light fixture designed for outdoor use.

• 347-480 VAC input voltage
• 0.15 A current draw
• 45 W power consumption
• 5000 lumens output
• 116 lm/W efficacy
• 60 Hz frequency
• 5000 K cool white color temperature
• Dimmable driver
• Diffused polycarbonate lens
• Die cast aluminum housing

Key Specifications

• Part Number: WPMV5L-UNV34-S903D
• Manufacturer: Eaton Crouse-Hinds
• Voltage: 347-480 VAC
• Amperage: 0.15 A
• Power: 45 W
• Lumens: 5000
• Efficacy: 116 lm/W
• Frequency: 60 Hz
• Color Temperature: 5000 K
• Dimmable: Yes

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WPMV5L-UNV34-S903D
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 347-480 VAC
• Amperage : 0.15 A
• Nema Rating : 4X
• Watts : 45W
• Hz : 60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 5000
• Lumens per watt : 26W
• Color temperature : 5000 K
• Mounting Method : Yoke
• Equivalent luminaire : 100W
• Dimming : Dimmable
• Power factor : > 0.90

Product Data

• UPC : 662276892903
• Dimensions : 9.16 in x 12.76 in x 12.6 in (Length/Depth x Height x Width)
• Weight : 14 lb
