WPMV5L-UNV1 - Eaton Crouse-Hinds Lighting and controls LED Wallpack 5000 Lumens

WPMV5L-UNV1

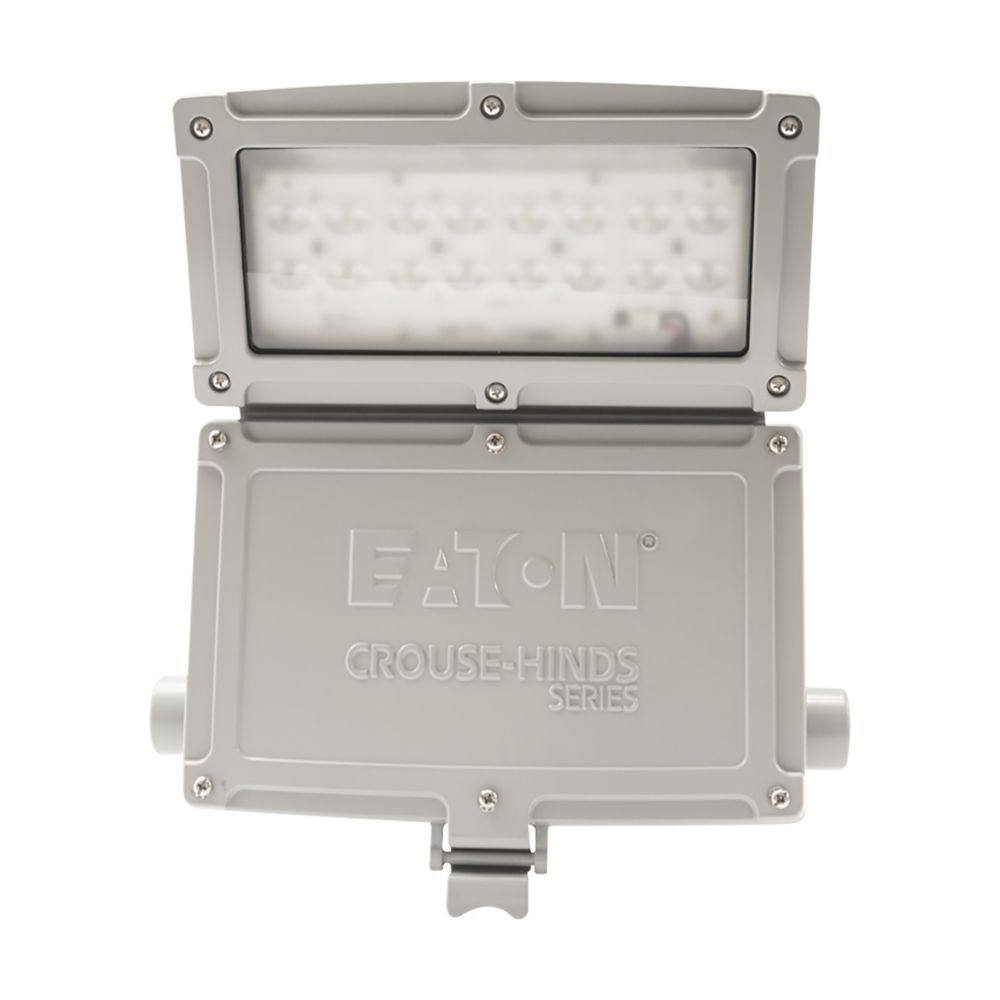

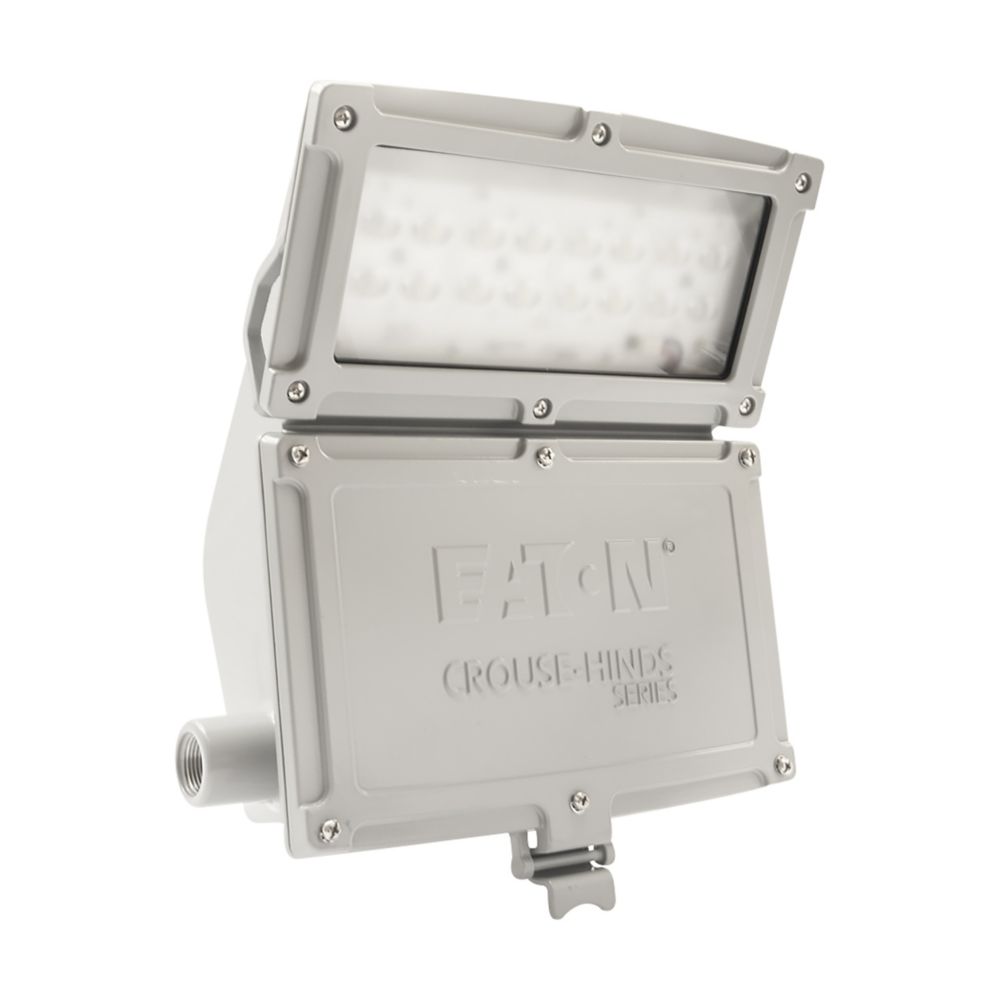

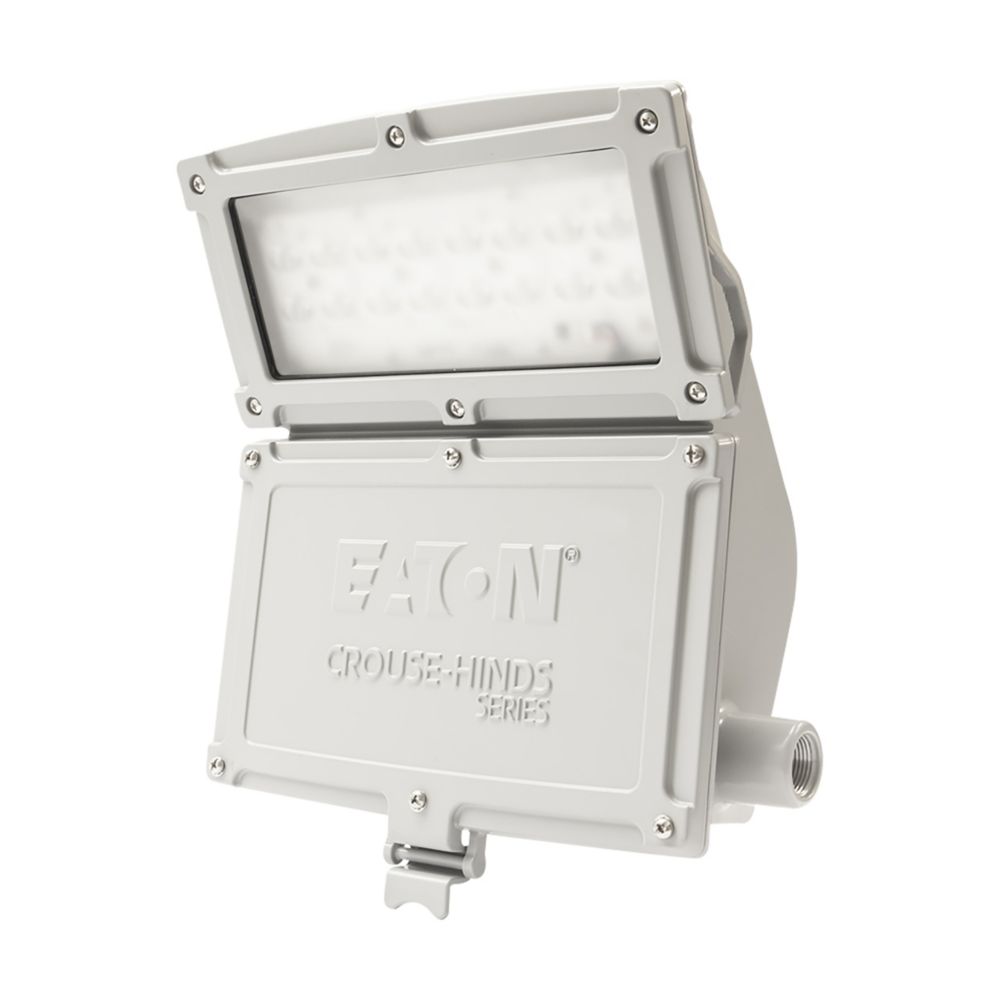

WPMV5L-UNV1 is an Eaton Crouse-Hinds Champ series WPMV LED wall pack light fixture for ordinary/non-hazardous locations.This dimmable LED wall pack features 5000 lumens output at 116 lm/W, die cast aluminum construction with tempered glass lens, NEMA 4X/IP66 rating, and operates on 120-277 Vac/125-250 Vdc at 50/60 Hz with 45W power draw.Key Specifications

• Part Number: WPMV5L-UNV1
• Manufacturer: Eaton Crouse-Hinds
• Lumens: 5000
• Wattage: 45W
• Voltage: 120-277 Vac, 125-250 Vdc
• Frequency: 50/60 Hz
• Amperage: 0.15A
• Color Temperature: Cool white
• Lumens per Watt: 116 lm/W
• NEMA Rating: 4X
• IP Rating: IP66
• Lens Material: Tempered glass
• Material: Die cast aluminum
• Mounting: Yoke
• Dimming: Dimmable driver
• Entry Size: 3/4"

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WPMV5L-UNV1
• Manufacturer : Eaton Crouse-Hinds
• Brand : Eaton Crouse-Hinds
• Category : Lighting and controls
• Item Subcategory : Highbay, lowbay and industrials
• Voltage : 120-277 Vac, 125-250 Vdc
• Amperage : 0.15A
• Nema Rating : 4X
• Watts : 45W
• Enclosure : IP66
• Mounting : Yoke
• Hz : 50/60 Hz
• Material : Die cast aluminum
• Ingress protection (IP) ratings : IP66
• Lumens : 5000
• Lumens per watt : 116 lm/W
• Color temperature : Cool white
• Mounting Method : Yoke
• Equivalent luminaire : 100W
• Dimming : Dimmable driver
• Power factor : > 0.90
• Entry type : 3/4"

Product Data

• UPC : 662276892446
• Dimensions : 9.16 in x 12.76 in x 12.6 in (Length/Depth x Height x Width)
• Weight : 14 lb
