Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
WPMV3L-UNV1-S903D

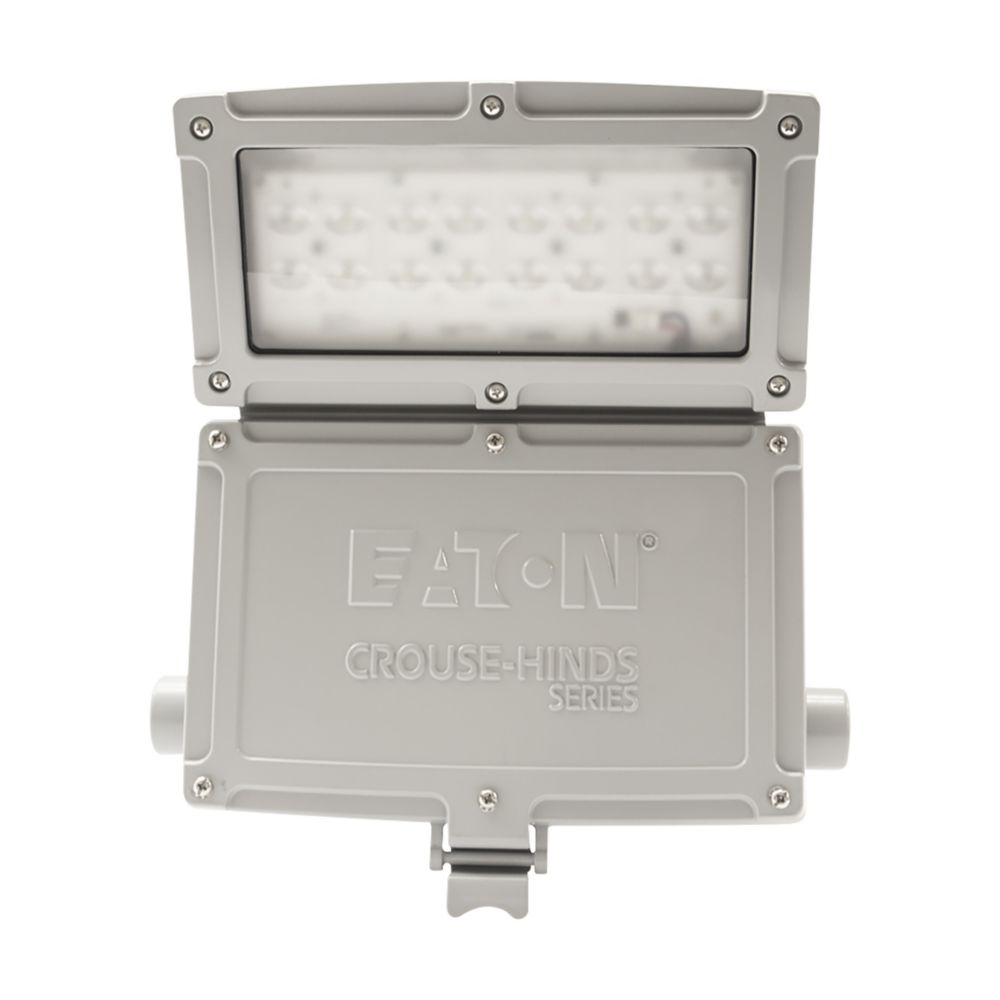

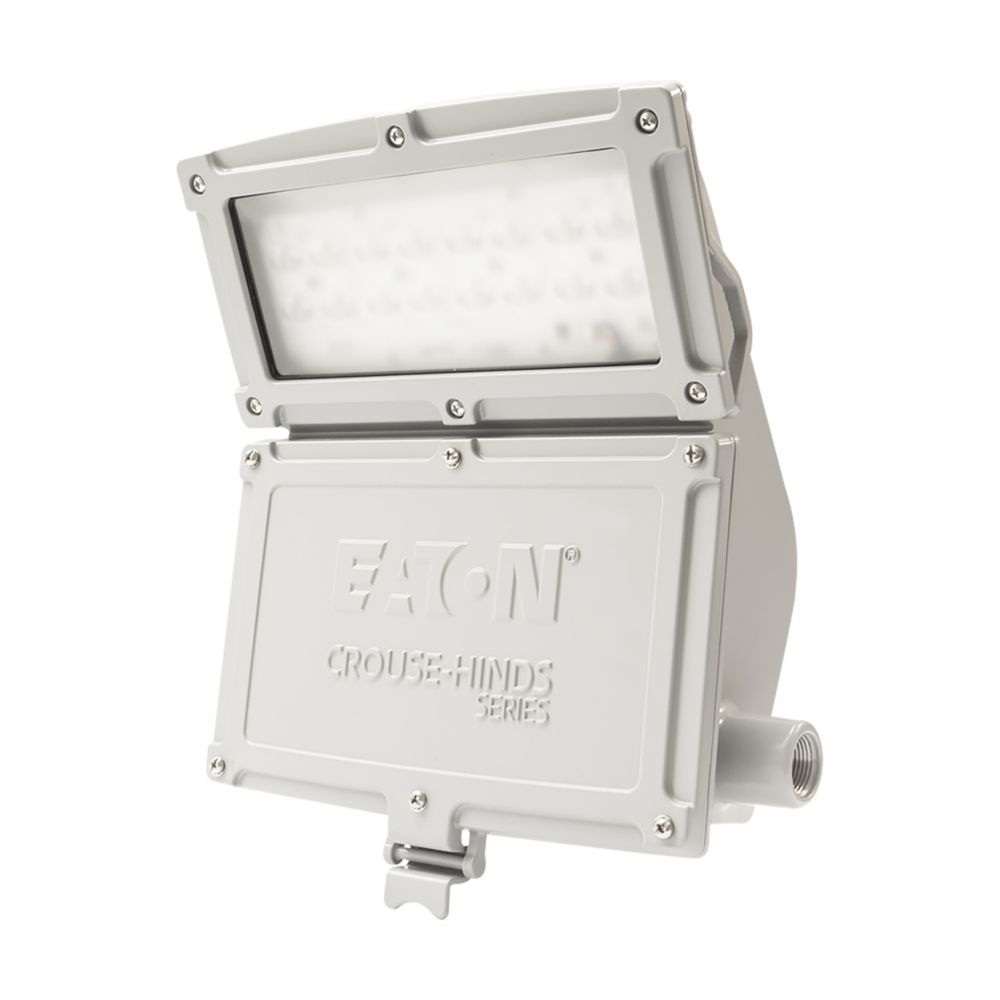

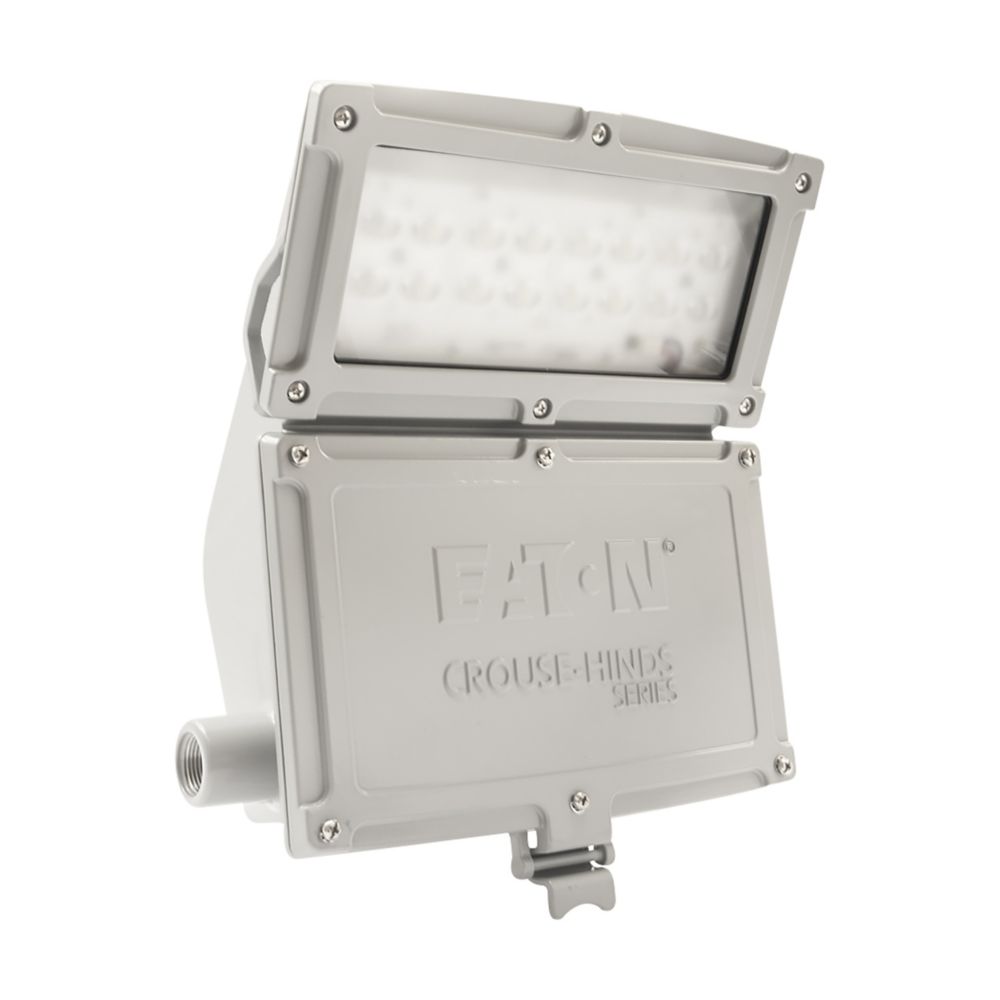

WPMV3L-UNV1-S903D is an Eaton Crouse-Hinds Champ series LED wall pack designed for industrial lighting applications.The Champ Pro WPMV LED wallpack provides low profile, maintenance-free illumination with high performance in extreme conditions, including marine and wet locations.Key Specifications
- Part Number: WPMV3L-UNV1-S903D
- Manufacturer: Eaton Crouse-Hinds
- Wattage: 30.6 W
- Lumens: 3000
- Current: 0.09 A
- Voltage: 347-480 VAC
- Frequency: 50/60 Hz
- Color Temperature: Cool White
- Lens: Diffused Polycarbonate
- Features: Dimmable driver
Specifications
- Part Number: WPMV3L-UNV1-S903D
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 120-277 Vac, 125-250 Vdc
- Amperage : 0.09 A
- Nema Rating : 4X
- Watts : 30W
- Enclosure : NEMA 4X, IP66
- Hz : 50/60 Hz
- Dist Voltage : 347-480 VAC
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 3000
- Lumens per watt : 111
- Color temperature : Cool White
- Mounting Method : Yoke
- Equivalent luminaire : 70W
- Dimming : Dimmable driver
- Power factor : > 0.90
Product Data
- UPC : 662276892392
- Dimensions : 9.16 in x 12.76 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14 lb
