Product Info
- Manufacturer:Eaton Crouse-Hinds
Description
WPMV3L-UNV1-S903

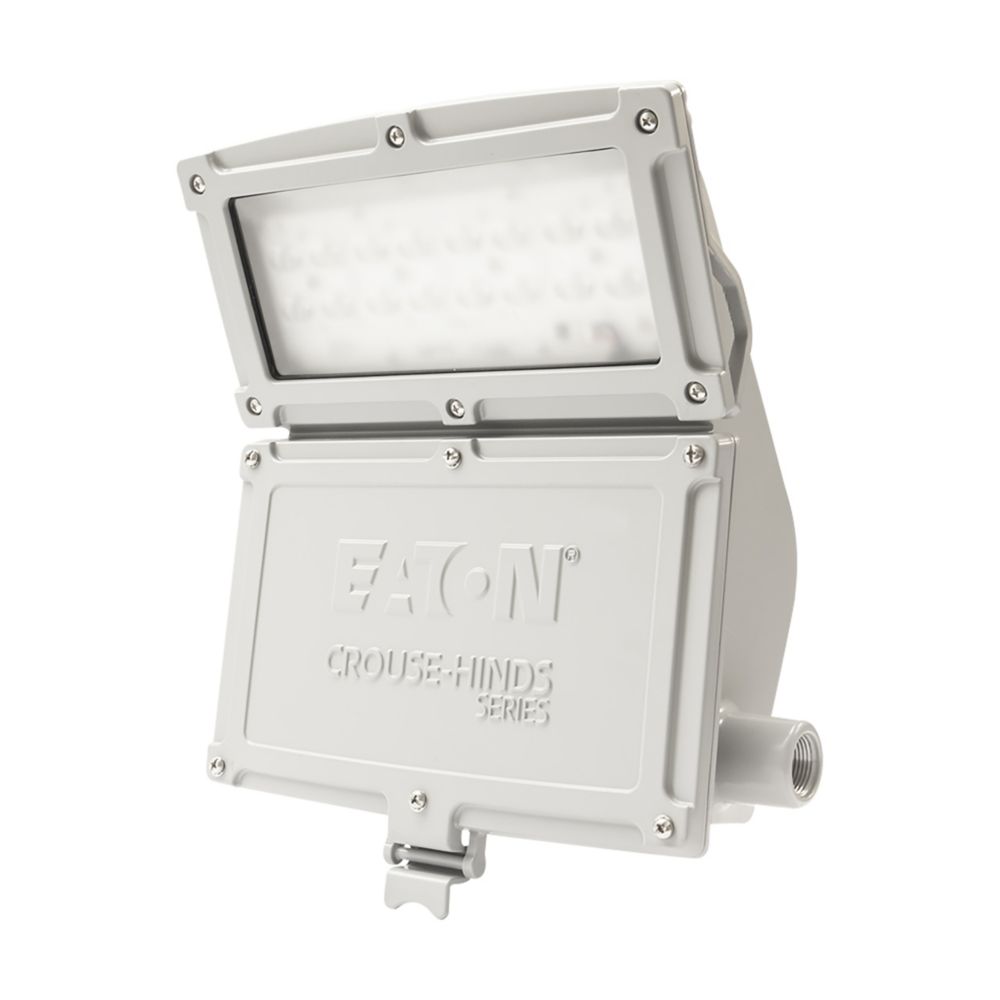

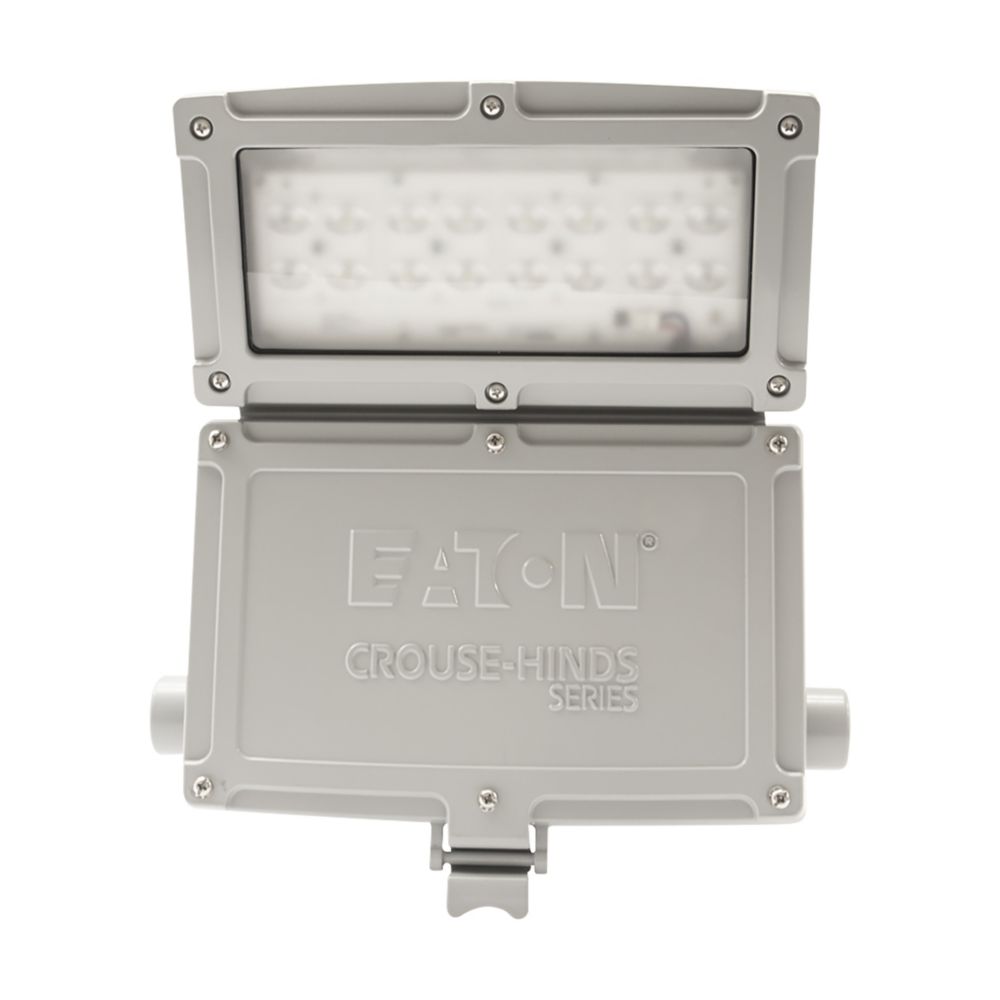

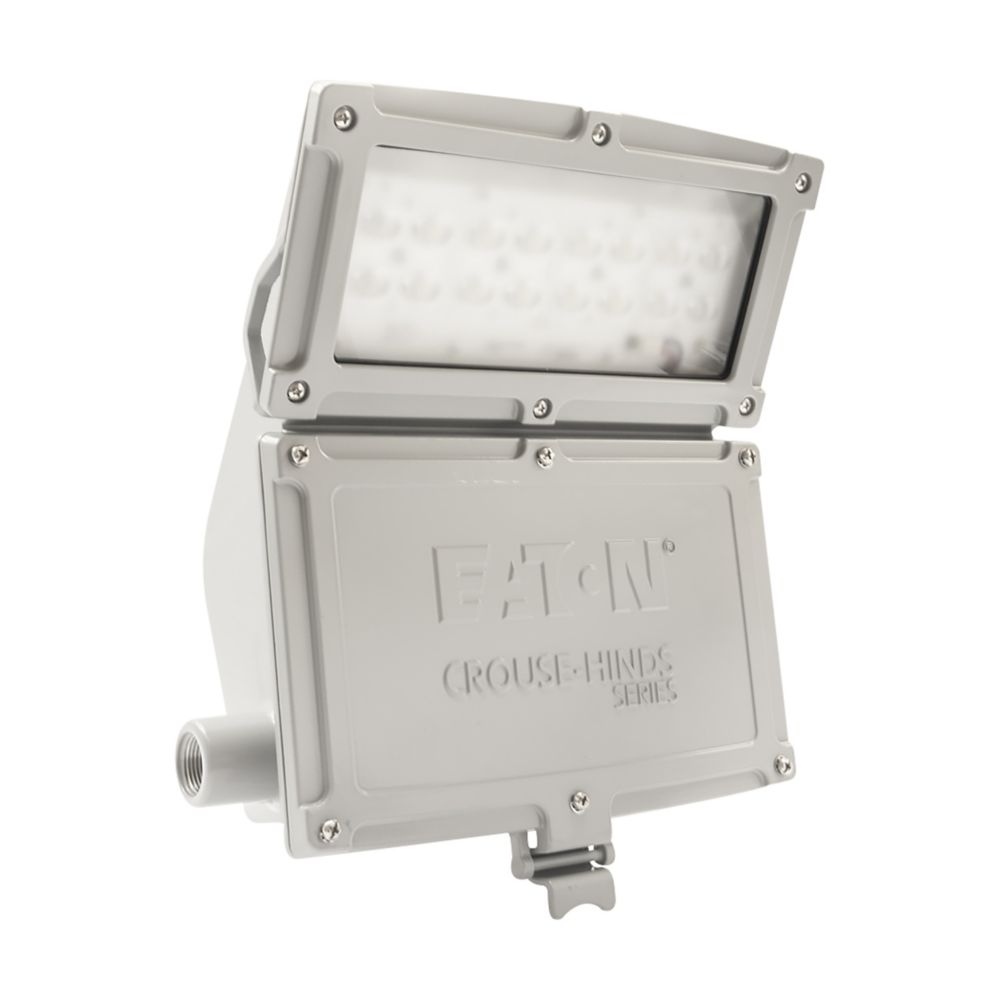

WPMV3L-UNV1-S903 is an Eaton Crouse-Hinds Champ series WPMV LED wall pack light fixture designed for industrial lighting applications.This dimmable LED wall pack features a cool white output, polycarbonate lens, die cast aluminum construction, and yoke mounting with 7x6 distribution pattern.Key Specifications
- Part Number: WPMV3L-UNV1-S903
- Manufacturer: Eaton Crouse-Hinds
- Power: 30W
- Lumens: 3000
- Voltage: 120-277 Vac
- Frequency: 50/60 Hz
- Current: 0.09A
- Color Temp: Cool white
- Lens: Polycarbonate
- Material: Die cast aluminum
- Mounting: Yoke mount
- Entry: 3/4 in
Specifications
- Part Number: WPMV3L-UNV1-S903
- Manufacturer : Eaton Crouse-Hinds
- Brand : Eaton Crouse-Hinds
- Category : Lighting and controls
- Item Subcategory : Highbay, lowbay and industrials
- Voltage : 120-277 Vac
- Amperage : 0.09A
- Nema Rating : 4X
- Watts : 30W
- Enclosure : Polycarbonate lens
- Metal Type : Die cast aluminum
- Mounting : Yoke mount
- Hz : 50/60 Hz
- Material : Die cast aluminum
- Ingress protection (IP) ratings : IP66
- Lumens : 3000
- Lumens per watt : 111
- Color temperature : Cool white
- Mounting Method : Yoke
- Equivalent luminaire : 70W
- Dimming : Dimmable driver
- Power factor : > 0.90
- Entry type : 3/4"
Product Data
- UPC : 662276892385
- Dimensions : 9.16 in x 12.76 in x 12.6 in (Length/Depth x Height x Width)
- Weight : 14 lb
