Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT3D25

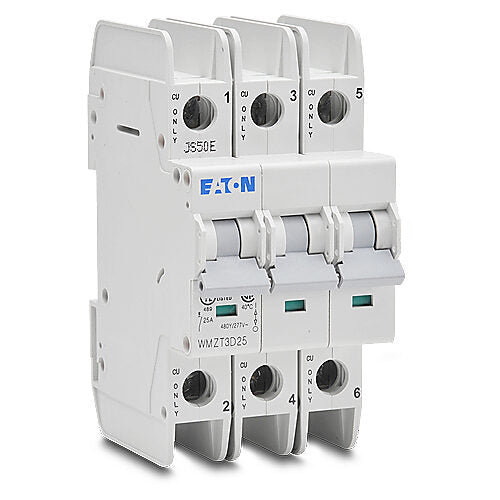

WMZT3D25 is a 3-pole miniature circuit breaker from Eaton rated for 25 amps and 480Y/277V AC voltage with a 10kA interrupting rating. It is designed for DIN rail mounting and provides reliable circuit protection for industrial and commercial applications.WMZT3D25 features a Type D trip curve suitable for high inductive loads, ensuring fast and accurate tripping under short circuit conditions. The breaker complies with UL 489 and CSA C22.2 standards and is constructed with a durable nylon housing for vertical mounting.
- Key Specifications
- Amperage: 25A
- Poles: 3-Pole
- Voltage Rating: 480Y/277V AC
- Interrupt Rating: 10kA at 480V
- Trip Unit: Thermal Magnetic, Type D Curve
- Mounting Type: DIN Rail
- Series: WMZT Miniature Circuit Breaker
- Certifications: UL 489, CSA C22.2 No.5
- Operating Temperature: 40°C (UL/CSA)
- Material: Nylon housing
- Weight: Approx. 0.9 lb (3-pole)
Specifications
- Part Number: WMZT3D25
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 25
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525782
- GTIN : 00786685257822
- Country of Origin : Spain
- Weight : 11.62
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
