Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT3D10

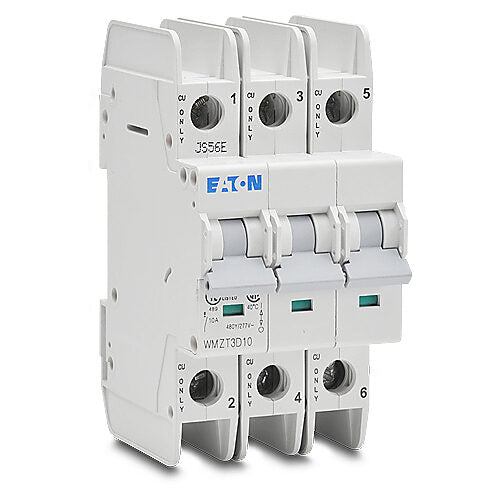

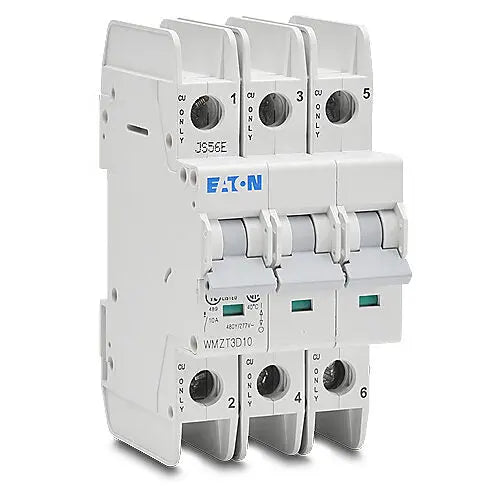

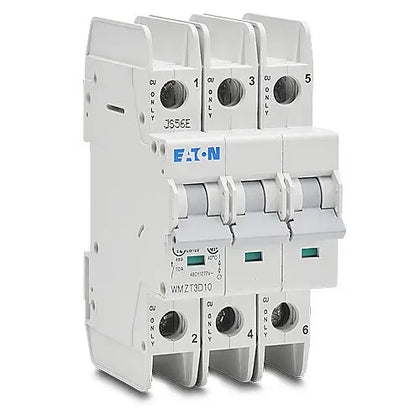

WMZT3D10 is a 10 amp, 3-pole thermal magnetic miniature circuit breaker from Eaton designed for 277/480Y VAC applications with DIN rail mounting.
This Eaton WMZT3D10 circuit breaker features a D curve trip characteristic suitable for motor and transformer protection, a 10kA interrupt rating per UL 489 standards, and a 35mm DIN rail mounting system. It is UL 489 listed and rated for 50/60 Hz operation with a thermal magnetic trip unit. The breaker supports a maximum voltage of 277/480Y VAC and 48 VDC, with a compact design optimized for industrial and commercial electrical distribution panels.
- Key Specifications
- Amperage: 10A
- Voltage Rating: 277/480Y VAC, 48 VDC
- Poles: 3
- Trip Curve: D Curve (10-20x In)
- Interrupt Rating: 10kA SCCR
- Mounting Type: 35mm DIN Rail
- Standards: UL 489 Listed
- Frequency: 50/60 Hz
- Thermal Magnetic Trip Unit
- Frame/Series: WMZT
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: WMZT3D10
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525777
- GTIN : 00786685257778
- Country of Origin : Spain
- Weight : 0.86
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
