Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT3D08

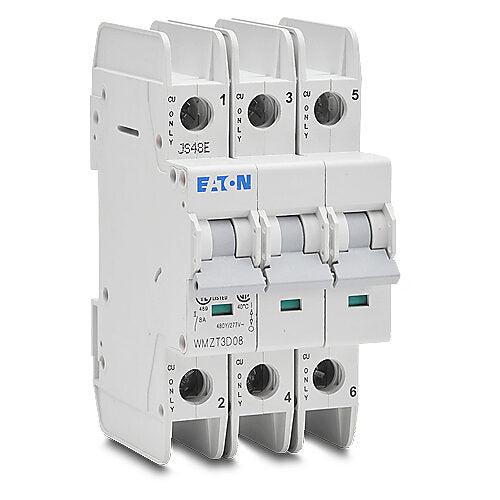

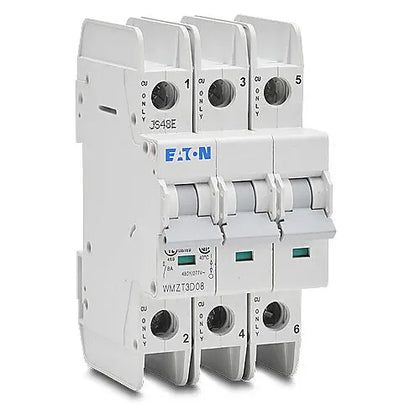

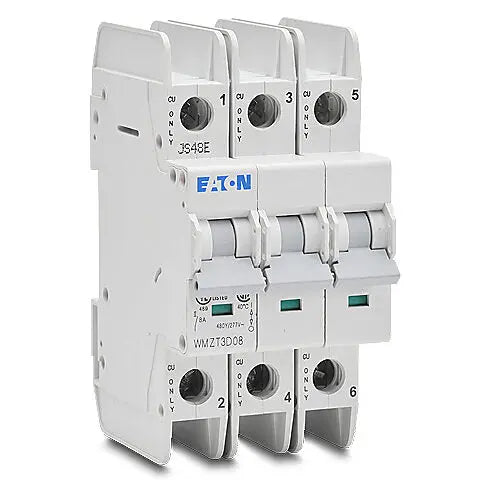

WMZT3D08 is an Eaton miniature circuit breaker designed for reliable circuit protection in industrial and commercial applications.
This thermal magnetic trip unit offers current limiting performance, interrupting fault currents within one half cycle for enhanced safety. The WMZT3D08 is UL 489 listed and features a compact, field-mountable design with easy DIN rail installation—no tools required for mounting. It is suitable for use in three-phase systems and provides robust protection against overloads and short circuits.
-
Key Specifications
- Amperage: 8A
- Voltage: 277/480Y VAC
- Poles: 3
- Mounting Type: 35mm DIN rail
- Interrupt Rating: 10kA
- Series/Frame: WMZT
- Trip Unit: Thermal magnetic, D curve (10–20x In)
- Certifications: UL 489 listed
- Current Limiting: Yes
- Operating Temperature: Up to 40°C (UL 489)
- Rated Frequency: 50/60Hz
- Weight: 0.9 lb (408g)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.
Specifications
- Part Number: WMZT3D08
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 8
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525776
- GTIN : 00786685257761
- Country of Origin : Spain
- Weight : 0.86
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
