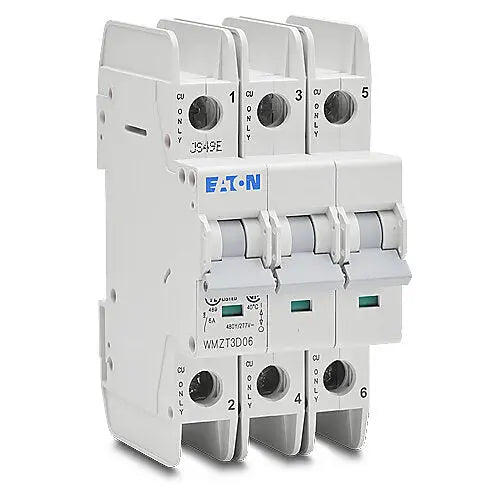

WMZT3D06 - Eaton 6A 3-Pole Miniature Circuit Breaker, 277/480Y VAC, DIN Rail Mount, D Curve, UL 489 Listed

Save $89.56
SKU: WMZT3D06-New
Condition: New
Price:
$300.44 $390.00
Stock:
2 in stock
Limited availability — we'll confirm stock immediately after your order.

Same-Day Shipping

Most items ship same-day if ordered by 12:30 PM PST.

2 Year Warranty Guaranteed

All items both Re-Certified, and New sold by Essential Electric include a 30 day return policy and a 2-year full warranty. This means that they are guaranteed to be free from defects for a full 2 years from the date that the product was shipped from our warehouse.

Product Questions? Contact Us

Product Info

WMZT3D06 - Eaton Feed-Thru 480V 6A 3 pole circuit breaker 10kA@480V - Essential Electric Supply
Roll over image to zoom in Click on image to zoom Images are for reference only
WMZT3D06 - Eaton Feed-Thru 480V 6A 3 pole circuit breaker 10kA@480V - Essential Electric Supply

Description

WMZT3D06


WMZT3D06 is a three-pole miniature circuit breaker from Eaton, designed for reliable branch circuit protection in industrial and commercial applications. This breaker features a 6A current rating, 277/480Y VAC maximum voltage, and is mounted on a 35mm DIN rail for easy installation. The D curve trip unit provides protection against high inrush currents, making it suitable for motor and transformer loads. It is UL 489 listed and offers a 10kA short circuit interrupt rating per pole. The breaker is current limiting, ensuring rapid fault interruption for enhanced safety. Field-mountable accessories such as auxiliary switches and shunt trips are available for added functionality. This Eaton WMZT series breaker is built for durability and performance in demanding environments. The thermal-magnetic trip mechanism delivers precise overcurrent protection, while the compact design saves space in control panels. The breaker is suitable for use in a wide range of applications, including lighting, HVAC, and industrial machinery.
  • Part Number: WMZT3D06
  • Manufacturer: Eaton
  • Series: WMZT
  • Number of Poles: 3
  • Current Rating: 6A
  • Maximum Voltage: 277/480Y VAC
  • Mounting Type: 35mm DIN Rail
  • Interrupt Rating: 10kA SCCR
  • Tripping Curve: D Curve (10-20x In)
  • Thermal-Magnetic Trip Unit
  • UL 489 Listed
  • Field Mountable Accessories: Auxiliary Switch, Shunt Trip
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

  • Part Number: WMZT3D06
  • Manufacturer : Eaton
  • Brand : Eaton
  • Category : Circuit Breaker
  • Item Subcategory : Molded Case
  • Family : WMZ Series
  • Type : WMZT
  • Voltage : 480
  • Amperage : 6
  • Phase : 3
  • Poles : 3
  • AIC rating : 10kA@480V
  • Connection : Feed-Thru
  • Functions : LI - Long-Time and Instantaneous
  • Protection : Thermal Magnetic

Product Data

  • UPC : 78668525774
  • GTIN : 00786685257747
  • Country of Origin : Spain
  • Weight : 0.86
  • Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
