Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT3D01

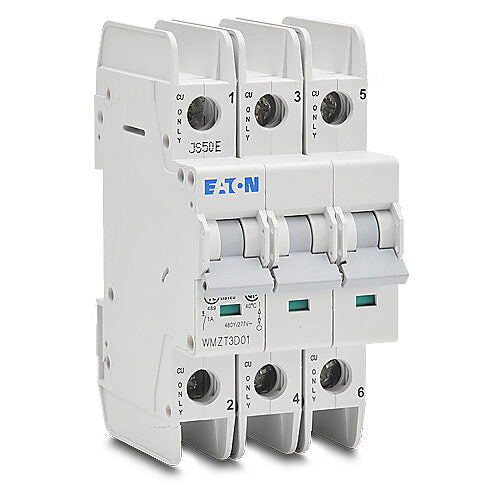

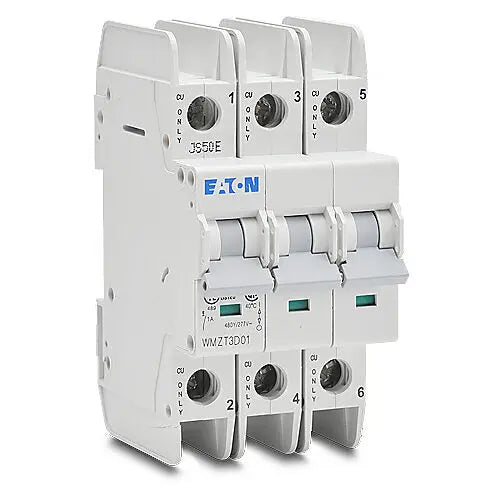

WMZT3D01 is a 1 amp, 3-pole miniature circuit breaker from Eaton designed for reliable circuit protection with a D curve thermal magnetic trip unit.This Eaton WMZT3D01 breaker features a 10kA interrupt rating at 480Y/277 VAC and 96 VDC, suitable for industrial and commercial applications. It mounts on a 35mm DIN rail and uses a current-limiting design to quickly interrupt fault currents. The breaker complies with UL 489 standards and offers a compact, durable nylon housing.
- Amperage: 1A
- Voltage Rating: 480Y/277 VAC, 96 VDC
- Poles: 3
- Trip Unit: Thermal Magnetic, D Curve
- Interrupt Rating: 10kA
- Mounting Type: 35mm DIN Rail
- Frame/Series: WMZT Miniature Circuit Breaker
- Certifications: UL 489
- Current Limiting
- Operating Temperature: 40°C UL/CSA
- Housing Material: Nylon
Specifications
- Part Number: WMZT3D01
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 1
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525768
- GTIN : 00786685257686
- Country of Origin : Spain
- Weight : 0.86
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
