Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT3C30

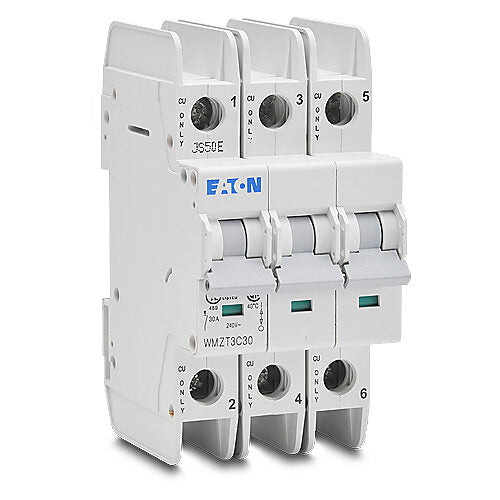

WMZT3C30 is a 3 pole, 30 amp miniature circuit breaker rated for 480 volts with a C curve thermal magnetic trip unit from Eaton.WMZT3C30 provides reliable circuit protection with a 10kA interrupt rating at 480V, suitable for industrial and commercial applications. It features DIN rail mounting, a WMS frame type, and complies with UL 489 and IEC 60947-2 standards.
- Key Specifications
- Amperage: 30A
- Voltage Rating: 480V AC
- Poles: 3
- Interrupt Rating: 10kA at 480V
- Trip Unit: C Curve Thermal Magnetic
- Mounting Type: DIN Rail
- Frame Type: WMS
- Standards: UL 489, IEC 60947-2
- Wire Size Range: 18 to 6 AWG
- Operating Temperature: 30°C (IEC), 40°C (UL)
Specifications
- Part Number: WMZT3C30
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525764
- GTIN : 00786685257648
- Country of Origin : Spain
- Weight : 0.61
- Certification : CSA Std. C22.2 No. 5,UL 489,RoHS Compliant
