Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT2D25

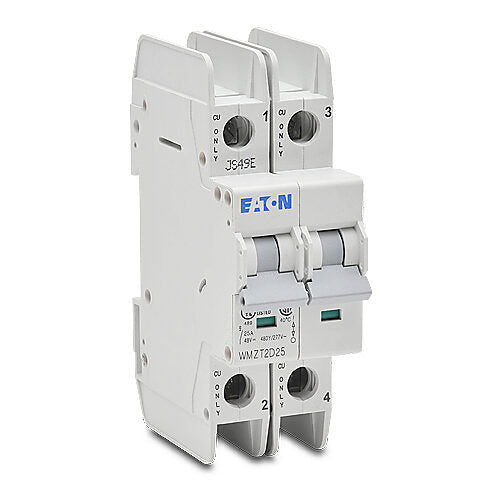

WMZT2D25 is a Eaton UL 489 miniature circuit breaker designed for branch circuit protection with a 25 amp rating and 2 poles.This WMZT series breaker features a D curve trip unit suitable for applications requiring a short circuit trip response of 10 to 20 times the rated current. It supports a maximum voltage of 480/277 VAC and 48 VDC, with a 10 kA interrupt rating at maximum voltage. The breaker mounts on a 35 mm DIN rail using a spring clip and includes standard box terminals for wiring. It complies with UL and CSA certifications and is suitable for control and branch circuit protection.
- Key Specifications
- Amperage: 25 A
- Voltage Rating: 480/277 VAC, 48 VDC
- Poles: 2
- Trip Curve: D Curve (10-20x In)
- Interrupt Rating: 10 kA at max voltage
- Mounting Type: 35 mm DIN rail
- Terminal Type: Standard box terminals
- Certifications: UL 489, CSA C22.2 No.5
- Operating Temperature: 40°C (UL), 30°C (IEC)
- Weight: 0.6 lbs (272 g)
- Contact Position Indicator: Yes (red/green)
- Part Number: WMZT2D25
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 25
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
- UPC : 78668525706
- GTIN : 00786685257068
- Country of Origin : Spain
- Weight : 0.57
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
