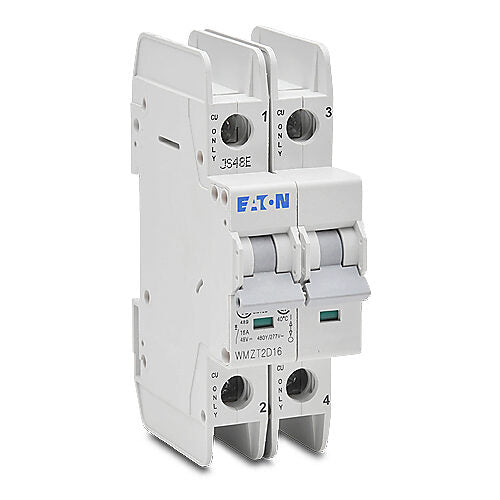

WMZT2D16 - Eaton 16A 480Y/277VAC 96VDC 2-Pole D Curve Current-Limiting Miniature Circuit Breaker, 10kA Interrupt, 35mm DIN Rail Mount, UL489

WMZT2D16

WMZT2D16 is a current-limiting, thermal magnetic miniature circuit breaker from Eaton, designed for reliable branch circuit protection in industrial and commercial applications.

This 2-pole breaker features a 16A current rating, 480Y/277VAC and 96VDC voltage rating, and a D curve trip characteristic for motor and transformer loads. It is UL489 listed, offers a 10kA interrupt rating, and mounts on a standard 35mm DIN rail for easy installation. The WMZT series is known for its compact design and robust performance in demanding environments.

Key Specifications

• Part Number: WMZT2D16
• Manufacturer: Eaton
• Amperage: 16A
• Voltage: 480Y/277VAC, 96VDC
• Poles: 2
• Mounting Type: 35mm DIN rail
• Interrupt Rating: 10kA
• Series/Frame: WMZT
• Trip Unit: Thermal magnetic, D curve (10–20x In)
• Certifications: UL489 listed
• Current Limiting: Yes
• Contact Position Indicator: Yes
• Field-Installable Accessories: Auxiliary switch, alarm switch, shunt trip (not included)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZT2D16
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZ Series
• Type : WMZT
• Voltage : 480
• Amperage : 16
• Phase : 1
• Poles : 2
• AIC rating : 10kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525704
• GTIN : 00786685257044
• Country of Origin : Spain
• Weight : 0.57
• Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
