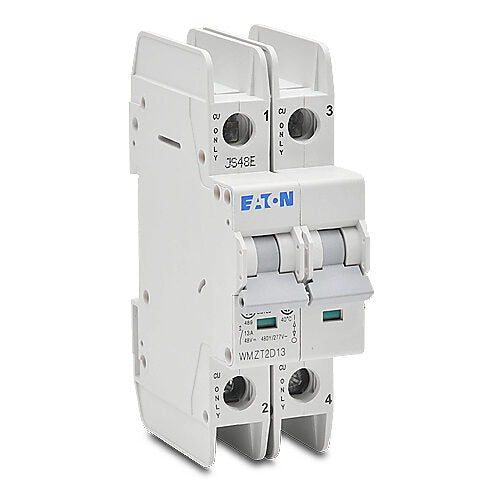

WMZT2D13 - Eaton 13A 480V 2 Pole D Curve Miniature Circuit Breaker DIN Rail Mount

WMZT2D13

WMZT2D13 is a 2 pole, 13 amp, 480 Volt Eaton miniature circuit breaker with a D curve trip unit and 10kA interrupting rating. It is designed for DIN rail mounting.This Eaton WMZT2D13 circuit breaker features thermal magnetic trip characteristics with a 10kA interrupting capacity at 480V AC. It is UL 489 listed and suitable for 277/480Y VAC applications. The breaker uses a D curve, providing short circuit trip response of 10-20 times the rated current. It mounts on a standard 35mm DIN rail and is designed for vertical mounting position. The breaker supports wire sizes from 18 to 6 AWG with specified tightening torque.

Key Specifications
• Amperage: 13A
• Voltage Rating: 277/480Y VAC
• Poles: 2
• Trip Curve: D Curve (10-20x In)
• Interrupt Rating: 10kA at 480V
• Mounting Type: 35mm DIN Rail
• Standards: UL 489 Listed, CSA Certified
• Thermal Magnetic Trip Unit
• Wire Size Range: 18-6 AWG
• Operating Temperature: 40°C (UL/CSA)
• Weight: Approximately 0.6 lb (272g)
At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.


Specifications

• Part Number: WMZT2D13
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZ Series
• Type : WMZT
• Voltage : 480
• Amperage : 13
• Phase : 1
• Poles : 2
• AIC rating : 10kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic



Product Data

• UPC : 78668525702
• GTIN : 00786685257020
• Country of Origin : Spain
• Weight : 0.57
• Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
