Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT2D10

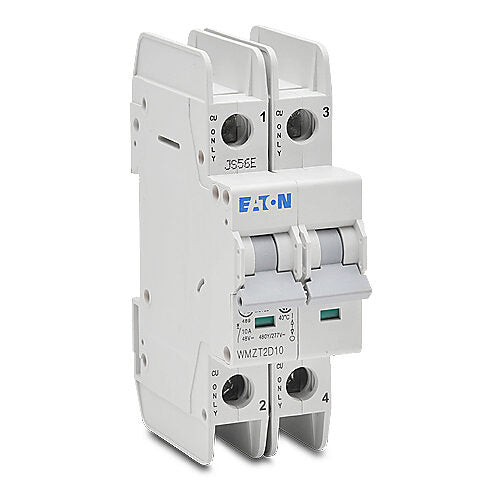

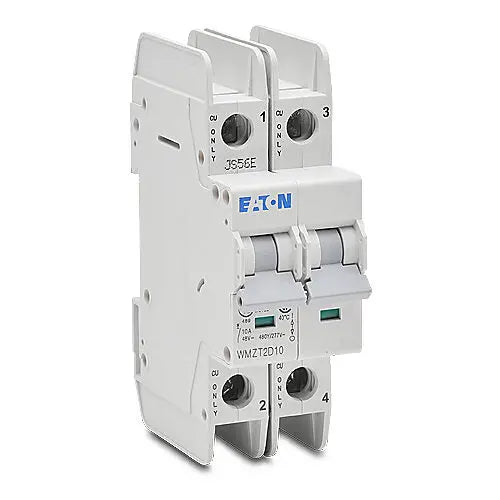

WMZT2D10 is a 2-pole, 10 amp miniature circuit breaker from Eaton designed for 277/480V applications with a D curve trip characteristic.This Eaton WMZT2D10 circuit breaker features a current limiting design with a 10kA interrupting rating at 480V, UL 489 and CSA certified, and mounts on a 35mm DIN rail. It provides reliable thermal trip protection and is suitable for industrial and commercial electrical distribution systems.
- Amperage: 10A
- Voltage Rating: 277/480V AC
- Poles: 2
- Trip Curve: D Curve (10-20x In)
- Interrupt Rating: 10kA at 480V
- Mounting Type: 35mm DIN Rail
- Standards: UL 489 Listed, CSA Certified
- Thermal Trip Unit
- Current Limiting Device
- Weight: Approximately 0.6 lb (272g)
- Operating Frequency: 50/60 Hz
Specifications
- Part Number: WMZT2D10
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 10
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525701
- GTIN : 00786685257013
- Country of Origin : Spain
- Weight : 0.57
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
