Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

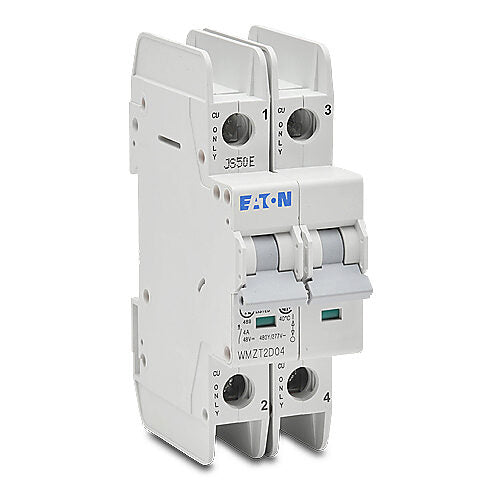

WMZT2D04
WMZT2D04 is a 4 Amp, 2 Pole miniature circuit breaker from Eaton designed for reliable branch circuit protection.This Eaton WMZT series breaker features a 480VAC maximum voltage rating, current limiting protection, and a DIN rail mounting type. It is UL489 listed with a C or D trip curve, suitable for industrial and commercial electrical applications. The breaker supports wire sizes from 18 to 6 AWG with recommended tightening torque and offers a 10kA interrupt rating per pole. It is constructed with a nylon housing and designed for vertical mounting position.
- Amperage: 4 Amp
- Poles: 2 Pole
- Voltage Rating: 480VAC
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA
- Series/Frame: WMZT
- Trip Curve: C or D Curve
- UL489 Listed
- Wire Size Range: 18-6 AWG
- Mounting Position: Vertical
- Housing Material: Nylon
- Weight: Approx. 0.6 lb
Specifications
- Part Number: WMZT2D04
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 4
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525696
- GTIN : 00786685256962
- Country of Origin : Spain
- Weight : 0.57
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
