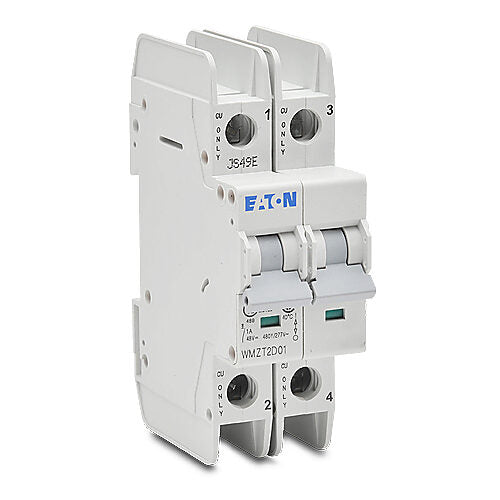

WMZT2D01 - Eaton 1A 277/480Y VAC 2-Pole Miniature Circuit Breaker Type D 10kA DIN Rail

WMZT2D01

WMZT2D01 is a 1 amp, 2-pole miniature circuit breaker from Eaton designed for reliable circuit protection with a Type D trip curve and 10kA interrupt rating.

This Eaton WMZT2D01 circuit breaker operates at 277/480Y VAC, features a thermal magnetic trip unit, and mounts on a 35mm DIN rail. It is UL 489 listed and current limiting, providing fast fault interruption and superior protection for industrial and commercial electrical systems. The breaker is designed for vertical mounting and supports wire sizes from 18 to 6 AWG with specified tightening torque. It meets UL and CSA certifications and is suitable for use in demanding environments requiring high interrupt capacity and precise trip characteristics.

Key Specifications
• Amperage: 1 Amp
• Voltage Rating: 277/480Y VAC
• Number of Poles: 2
• Trip Curve: Type D (10-20x In)
• Interrupt Rating: 10kA
• Mounting Type: 35mm DIN Rail
• Trip Unit: Thermal Magnetic
• Certifications: UL 489, CSA C22.2 No.5
• Wire Size Range: 18 to 6 AWG
• Operating Temperature: 40°C (UL/CSA)
• Weight: 0.6 lb (272g)

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZT2D01
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZ Series
• Type : WMZT
• Voltage : 480
• Amperage : 1
• Phase : 1
• Poles : 2
• AIC rating : 10kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525692
• GTIN : 00786685256924
• Country of Origin : Spain
• Weight : 0.57
• Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
