Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

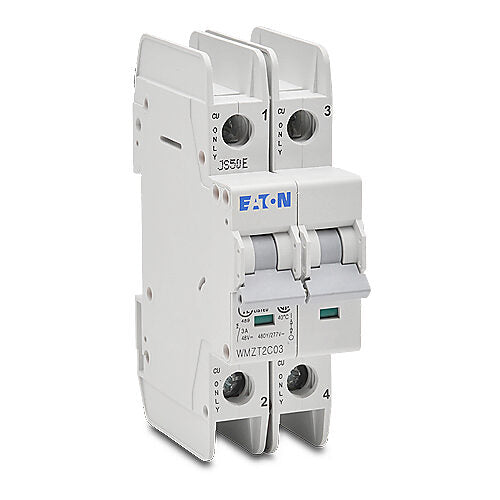

WMZT2C03
WMZT2C03 is a 2 pole, 3 amp, 480V miniature circuit breaker from Eaton, designed for reliable branch circuit protection in industrial and commercial applications. This breaker features a C curve trip unit, 10kA short circuit current rating, and is UL 489 listed for safety and compliance. It mounts on a standard 35mm DIN rail for easy installation and offers thermal magnetic protection for dependable operation. The WMZT2C03 is current limiting, interrupting fault currents within one half cycle for superior protection. It is suitable for use in control panels, machinery, and power distribution systems where compact size and high performance are required. The breaker is compatible with 18-12 AWG wire and features a robust design for long service life.
- Part Number: WMZT2C03
- Manufacturer: Eaton
- Amperage: 3A
- Poles: 2
- Maximum Voltage: 480VAC (277/480Y), 48VDC
- Interrupt Rating: 10kA SCCR @ 480V
- Mounting Type: 35mm DIN Rail
- Series/Frame: WMZT
- Trip Unit: C Curve (5-10x In)
- Certifications: UL 489, CSA C22.2 No.5
- Operating Temperature: 40°C
- Wire Size: 18-12 AWG
Specifications
- Part Number: WMZT2C03
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 3
- Phase : 1
- Poles : 2
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525676
- GTIN : 00786685256764
- Weight : 0.57 lb
