Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT1D08

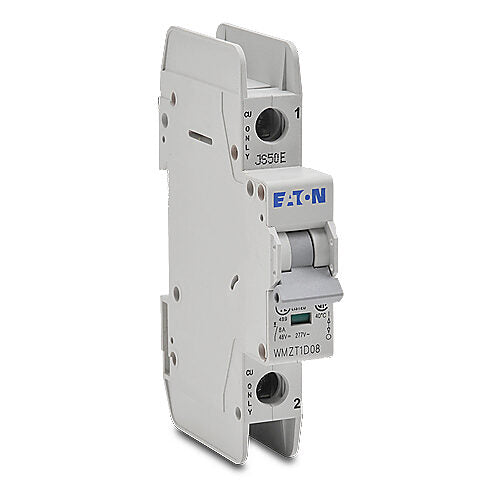

WMZT1D08 is a single-pole, 8A miniature circuit breaker with D-curve trip characteristics, designed for DIN rail mounting and branch circuit protection. This Eaton WMZT series breaker features a thermal magnetic trip unit, current limiting design, and is UL 489 listed for safety and reliability. It supports up to 277/480Y VAC, making it suitable for a wide range of industrial and commercial applications.
- Part Number: WMZT1D08
- Manufacturer: Eaton
- Amperage: 8A
- Poles: 1-Pole
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA SCCR
- Series/Frame: WMZT
- Trip Unit: D-Curve (10-20x In)
- Maximum Voltage: 277/480Y VAC
- Certifications: UL 489 Listed
- Application: Branch Circuit Protection
- Wire Size: 18-12 AWG
Specifications
- Part Number: WMZT1D08
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 8
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525624
- GTIN : 00786685256245
- Country of Origin : Spain
- Weight : 0.28
- Certification : CSA Std. C22.2 No. 5;UL 489;RoHS Compliant
