Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description

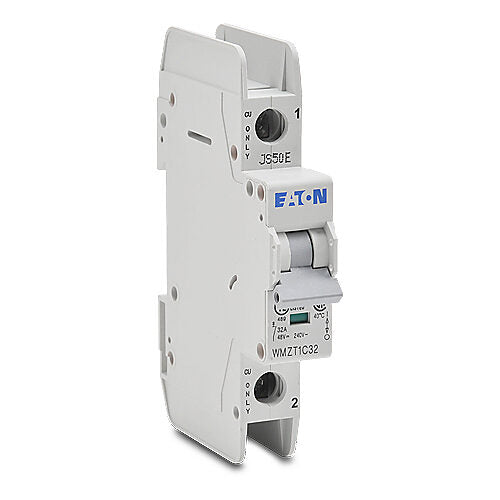

WMZT1C32
WMZT1C32 is a 1 pole, 32 amp miniature circuit breaker from Eaton designed for reliable branch and control circuit protection.The WMZT1C32 features a 480 Volt rating with a 10kA interrupting capacity at 480V, suitable for industrial and commercial applications. It uses a C curve trip unit for short circuit protection with a trip response of 5-10 times the rated current. The breaker mounts on a 35 mm DIN rail with a spring clip and supports vertical mounting. It complies with UL 489 and CSA C22.2 No.5 standards and is rated for operation at 40°C ambient temperature.
- Key Specifications
- Amperage: 32A
- Voltage Rating: 480V AC
- Poles: 1 Pole
- Interrupt Rating: 10kA at 480V
- Trip Unit: C Curve (5-10x In)
- Mounting Type: 35 mm DIN Rail
- Standards: UL 489, CSA C22.2 No.5
- Operating Temperature: 40°C
- Weight: 0.3 lb (136 g)
- Wire Size Range: 18-6 AWG
- Contact Position Indicator: Red/Green
Specifications
- Part Number: WMZT1C32
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 32
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525613
- GTIN : 00786685256139
- Country of Origin : Spain
- Weight : 0.28
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
