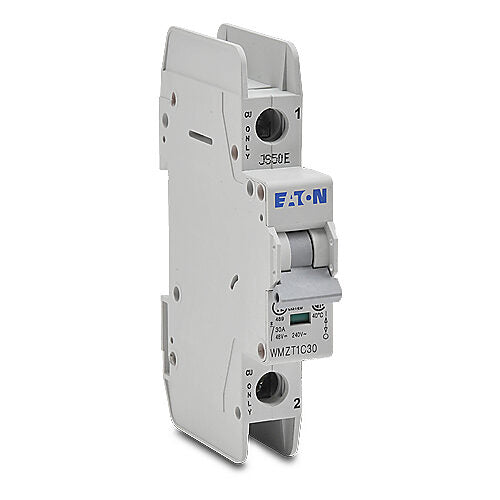

WMZT1C30 - Eaton 30A 1-Pole Miniature Circuit Breaker 277/480V AC C Curve DIN Rail Mount

WMZT1C30

WMZT1C30 is a 30 amp, 1-pole miniature circuit breaker from Eaton designed for reliable circuit protection in industrial and commercial applications.This Eaton WMZT series breaker features a C curve trip unit, suitable for general-purpose protection with a 277/480V AC voltage rating. It is a current limiting device with a 15kA interrupt rating, UL 489 listed, and mounts easily on a 35mm DIN rail. The breaker uses thermal tripping technology and is UL and CSA certified.

• Amperage: 30A
• Voltage Rating: 277/480V AC
• Poles: 1
• Trip Curve: C Curve (thermal)
• Interrupt Rating: 15kA
• Mounting Type: 35mm DIN Rail
• Certifications: UL 489, CSA
• Current Limiting Device
• Terminal Connection: Standard box terminals
• Frequency: 50/60 Hz

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZT1C30
• Manufacturer : Eaton
• Brand : Eaton
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZ Series
• Type : WMZT
• Voltage : 480
• Amperage : 30
• Phase : 1
• Poles : 1
• AIC rating : 10kA@480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Terminal Connection : Standard Box Terminals
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525612
• GTIN : 00786685256122
• Country of Origin : Spain
• Weight : 0.28
• Standards : UL 489
• Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
