Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT1C25

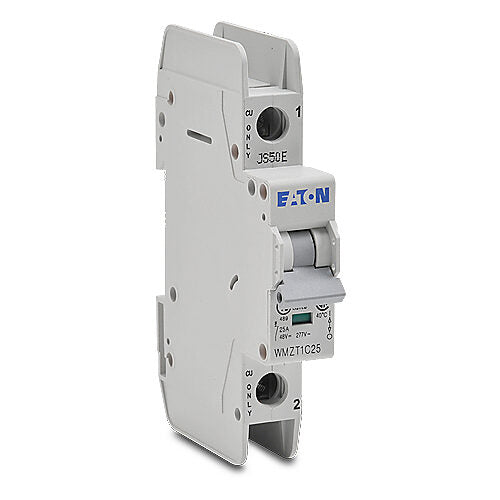

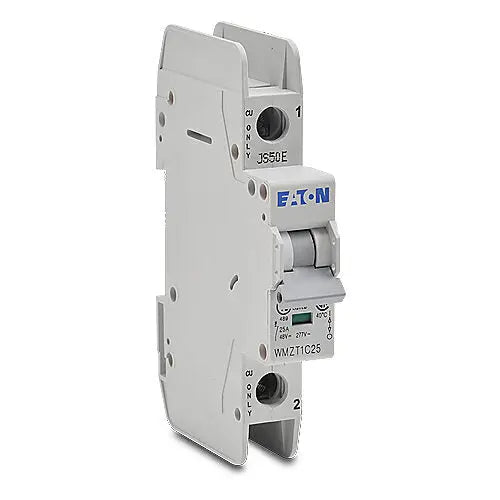

WMZT1C25 is a Eaton 25 amp, 1 pole miniature circuit breaker designed for reliable circuit protection in industrial and commercial applications.This Eaton WMZT1C25 circuit breaker features a 25 ampere rating, single pole configuration, and is rated for 480 volts AC with a 10kA interrupting capacity at 480V. It uses a C curve trip unit suitable for general purpose protection and complies with UL 489 standards. The breaker mounts on DIN rail and has standard box terminals for easy installation.
- Key Specifications
- Amperage: 25A
- Voltage Rating: 480V AC
- Poles: 1 Pole
- Interrupt Rating: 10kA at 480V
- Trip Curve: C Curve (5-10x In)
- Mounting Type: DIN Rail
- Standards: UL 489 Certified
- Terminal Type: Standard Box Terminals
- Frame/Series: WMZT Series
- Operating Temperature: 40°C UL 489
Specifications
- Part Number: WMZT1C25
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 25
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Terminal Connection : Standard Box Terminals
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525611
- GTIN : 00786685256115
- Country of Origin : Spain
- Weight : 0.28
- Standards : UL 489
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
