Product Info
- Manufacturer:Eaton
- Sub-Category:Molded Case
Description
WMZT1C05

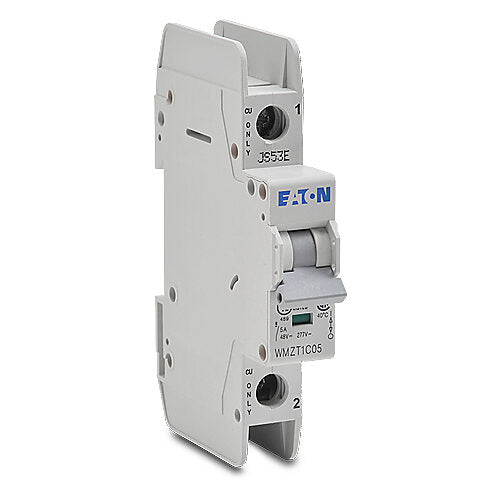

WMZT1C05 is a 1 pole, 5 amp miniature circuit breaker from Eaton designed for 277/480 VAC applications with a 10kA interrupt rating.This Eaton WMZT1C05 circuit breaker features a C-curve thermal magnetic trip unit, current limiting design, and is UL489 listed. It mounts on a 35mm DIN rail and is suitable for branch circuit protection with a 10kA interrupting capacity at 480V. The breaker supports wire sizes from 18 to 6 AWG and is rated for 50/60 Hz operation.
- Key Specifications
- Amperage: 5A
- Voltage Rating: 277/480 VAC
- Poles: 1
- Trip Curve: C Curve (Thermal Magnetic)
- Interrupt Rating: 10kA at 480V
- Mounting Type: 35mm DIN Rail
- Standards: UL489 Listed
- Frequency: 50/60 Hz
- Wire Size Range: 18 to 6 AWG
- Current Limiting: Yes
Specifications
- Part Number: WMZT1C05
- Manufacturer : Eaton
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZ Series
- Type : WMZT
- Voltage : 480
- Amperage : 5
- Phase : 1
- Poles : 1
- AIC rating : 10kA@480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525602
- GTIN : 00786685256023
- Country of Origin : Mexico
- Weight : 0.28
- Certification : UL 489;CSA Std. C22.2 No. 5;RoHS Compliant
