Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3D15

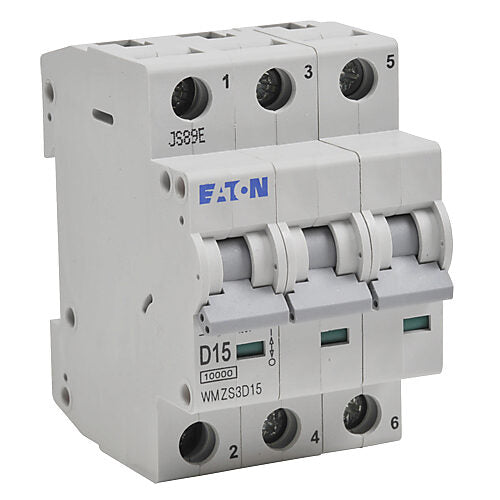

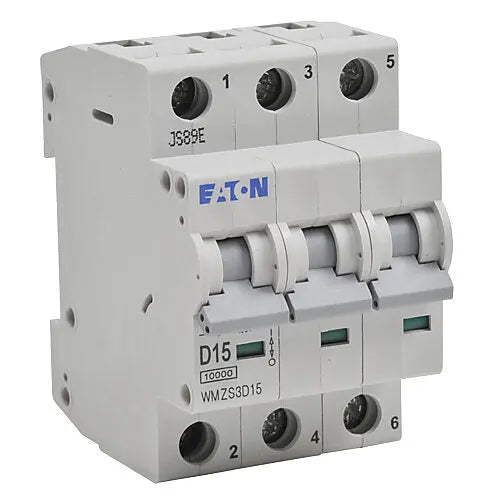

WMZS3D15 is a Cutler Hammer 3 pole thermal magnetic circuit breaker rated for 15 amps and 480 volts AC, designed for DIN rail mounting.WMZS3D15 provides reliable supplemental protection with a 10kA interrupt rating at 277/480V and features a D trip curve for enhanced circuit protection. It is part of the WMZS series and includes line and load terminals for feed-thru connections.
- Amperage: 15 Amps
- Voltage Rating: 277/480 VAC, 125 VDC
- Number of Poles: 3
- Mounting Type: DIN Rail Mount
- Interrupt Rating: 10 kAIC at 277/480V
- Trip Unit: Thermal Magnetic, D Curve
- Series/Frame: WMZS
- Feed-Thru Connection: Included
- Certifications: UL 1077 Recognized
- Application: Supplemental Circuit Protection
Specifications
- Part Number: WMZS3D15
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 15
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 786685259925
- GTIN : 00786685259925
- Country of Origin : Spain
- Weight : 0.84
- Certification : UL 1077;CSA Std. C22.2 No. 235;IEC 60947-2;CE Marked;RoHS Compliant
