Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3C50

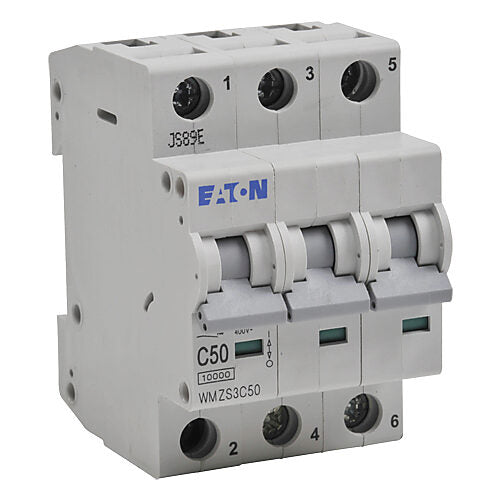

WMZS3C50 is a Cutler Hammer 3-pole circuit breaker rated for 50 amps with DIN rail mounting and a 10 kA interrupt rating at 277/480 volts.WMZS3C50 features thermal magnetic trip units designed for reliable protection in industrial and commercial applications. It supports three poles, is UL recognized, and mounts on a standard 35mm DIN rail for easy installation. The breaker is suitable for branch circuit protection with a 10 kA interrupt capacity and is compatible with Eaton's WMZ series accessories.
- Amperage: 50A
- Voltage Rating: 277/480V AC
- Number of Poles: 3
- Mounting Type: DIN rail mount
- Interrupt Rating: 10 kAIC
- Trip Unit: Thermal magnetic
- Series/Frame: WMZ series
- Certifications: UL recognized
- Compact size for space-saving installation
- Suitable for industrial and commercial use
Specifications
- Part Number: WMZS3C50
- Manufacturer : Cutler Hammer
- Brand : Eaton
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 50
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525979
- GTIN : 00786685259796
- Country of Origin : Spain
- Weight : 0.84
- Certification : IEC 60947-2;CSA Std. C22.2 No. 235;UL 1077;CE Marked;RoHS Compliant
