Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3C10

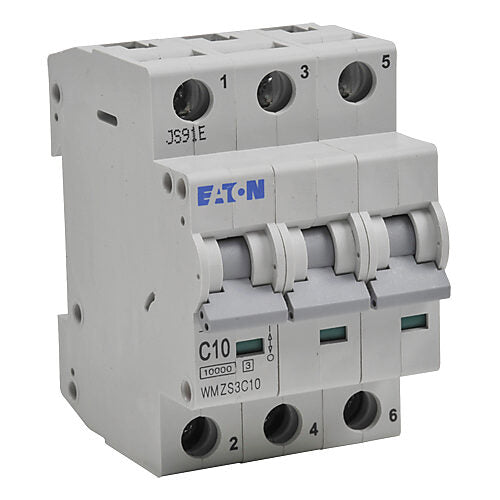

WMZS3C10 is a Cutler Hammer WMZ Series 3 pole, 480V, 10A miniature circuit breaker designed for DIN rail mounting and supplemental protection applications. This thermal magnetic circuit breaker features a C curve trip unit and is rated for 480Y/277 VAC and 96 VDC, making it suitable for a wide range of industrial and commercial power distribution needs. The WMZS3C10 is UL 489 listed and provides reliable protection with a 10kA SCCR rating.
- Part Number: WMZS3C10
- Manufacturer: Cutler Hammer (Eaton)
- Series: WMZ
- Number of Poles: 3
- Rated Current: 10A
- Rated Voltage: 480Y/277 VAC, 96 VDC
- Mounting Type: DIN Rail
- Interrupt Rating: 10kA SCCR
- Trip Unit: C Curve (Thermal Magnetic)
- Standards: UL 489 Listed
- Application: Supplemental Protection
- Terminal Type: Line and Load Included
Specifications
- Part Number: WMZS3C10
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 10
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : Long Time and Instantaneous Trip
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525970
- GTIN : 00786685259703
- Country of Origin : Spain
- Weight : 0.68
- Certification : IEC 60947-2,CSA Std. C22.2 No. 235,UL 1077,RoHS Compliant,CE Marked
