Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3C08

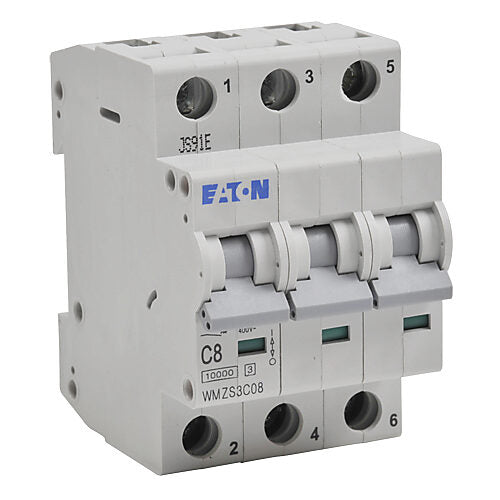

WMZS3C08 is a Cutler Hammer 3-pole circuit breaker rated for 8 amps and 480 volts, designed for reliable thermal magnetic protection in industrial applications.WMZS3C08 features a 10kA interrupting rating at 277/480V, C-curve trip unit, and DIN rail mounting for easy installation. It belongs to the WMZS Series and provides compact, modular protection with a 35mm width and captive screws for secure mounting. This breaker meets UL and CSA certifications for safety and performance.
- Amperage: 8A
- Voltage Rating: 480V
- Poles: 3
- Mounting Type: DIN Rail (35mm symmetrical rail)
- Interrupt Rating: 10kA at 277/480V
- Trip Unit: Thermal Magnetic, C-curve
- Series/Frame: WMZS Series
- Certifications: UL, CSA
- Width: 35mm
- Construction: Modular, captive screws
Specifications
- Part Number: WMZS3C08
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 8
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525969
- GTIN : 00786685259697
- Country of Origin : Spain
- Weight : 0.87
- Certification : IEC 60947-2;CSA Std. C22.2 No. 235;UL 1077;RoHS Compliant;CE Marked
