Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3C06

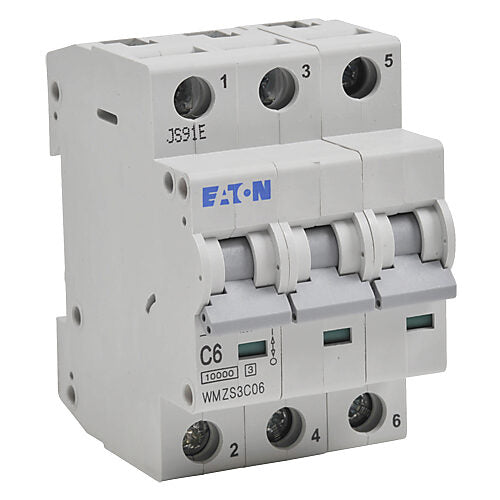

WMZS3C06 is a Cutler Hammer 3 pole circuit breaker rated for 6 amps and 480 volts, designed for reliable circuit protection in industrial applications.WMZS3C06 features a DIN rail mounting type and a C curve trip unit, providing a 10kA interrupting rating suitable for branch circuit protection. This breaker is part of the WMZS Series, known for modular construction, trip-free design, and compatibility with finger-shroud accessories. It meets UL and CSA certifications for safety and performance.
- Key Specifications
- Amperage: 6 Amps
- Voltage Rating: 480 Volts AC
- Poles: 3 Pole
- Mounting Type: DIN Rail
- Interrupt Rating: 10 kAIC
- Series/Frame: WMZS Series
- Trip Unit: C Curve
- Certifications: UL, CSA
- Construction: Modular
- Trip-Free Design
- Weight: Approximately 0.31 lbs
Specifications
- Part Number: WMZS3C06
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 6
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525967
- GTIN : 00786685259673
- Country of Origin : Spain
- Weight : 0.31
- Certification : IEC 60947-2;UL 1077;CSA Std. C22.2 No. 235;CE Marked;RoHS Compliant
