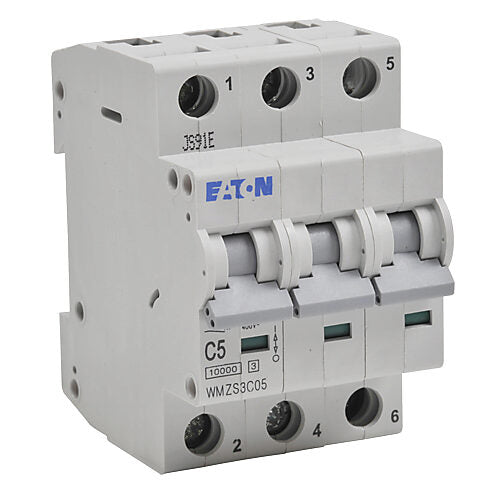

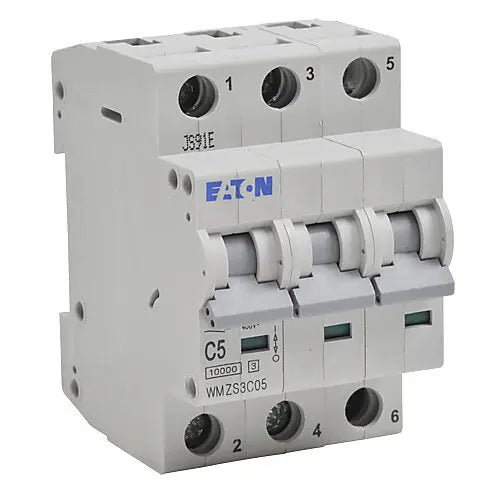

WMZS3C05 - Cutler Hammer WMZS Series 3-Pole 5A C-Curve Miniature Circuit Breaker 277/480VAC

WMZS3C05

WMZS3C05 is a Cutler Hammer WMZS Series 3-pole miniature circuit breaker with a 5A C-curve rating, designed for reliable protection in industrial and commercial applications. This breaker features a modular design and is suitable for use in a variety of electrical systems requiring precise overcurrent protection. The WMZS3C05 is a current-limiting device, interrupting fault currents within one half cycle for enhanced safety. It is DIN rail mounted and offers flexible power feed connections, making it ideal for compact panel installations. The breaker is trip-free, ensuring it cannot be overridden by holding the handle in the ON position, and features captive screws to prevent loss during installation.

• Part Number: WMZS3C05
• Manufacturer: Cutler Hammer
• Series: WMZS
• Number of Poles: 3
• Amperage Rating: 5A
• Voltage Rating: 277/480VAC
• Mounting Type: DIN Rail
• Interrupt Rating: 10 kA UL/CSA
• Curve Type: C-Curve
• Standards: UL 489, CSA C22.2 No. 5
• Application: Industrial, Commercial
• Features: Current Limiting, Trip-Free Design, Captive Screws

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS3C05
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 5
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525966
• GTIN : 00786685259666
• Country of Origin : Spain
• Weight : 0.87
• Certification : UL 1077;CSA Std. C22.2 No. 235;IEC 60947-2;CE Marked;RoHS Compliant
