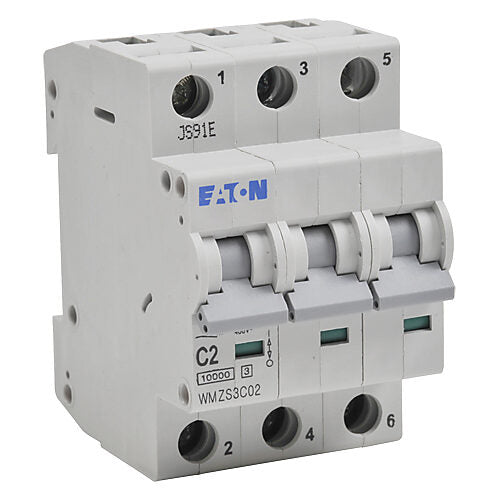

WMZS3C02 - Cutler Hammer 3-Pole 2A 480V Miniature Circuit Breaker, C Curve, DIN Rail Mount, WMZS Series

WMZS3C02

WMZS3C02 is a Cutler Hammer miniature supplementary protector designed for reliable circuit protection in industrial applications.

This thermal magnetic circuit breaker features a 3-pole design, 2A amperage rating, and is rated for 480Y/277 VAC/96 VDC. It is part of the WMZS Series, offers a C curve trip characteristic, and is certified to UL 1077 standards. The compact, 35mm DIN rail mounting makes it easy to install in control panels and enclosures.

Key Specifications
• Part Number: WMZS3C02
• Manufacturer: Cutler Hammer (Eaton)
• Amperage: 2A
• Voltage: 480Y/277 VAC, 96 VDC
• Poles: 3
• Mounting Type: 35mm DIN Rail
• Interrupt Rating: Not specified in available sources
• Series/Frame: WMZS Series
• Trip Unit: Thermal magnetic, C Curve (5–10X In)
• Certifications: UL 1077
• Application: Supplementary protector for branch circuit protection
• Terminal Type: Standard box terminals

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS3C02
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 2
• Phase : 3
• Poles : 3
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525963
• GTIN : 00786685259635
• Country of Origin : Spain
• Weight : 0.87
• Certification : UL 1077;IEC 60947-2;CSA Std. C22.2 No. 235;CE Marked;RoHS Compliant
