Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description

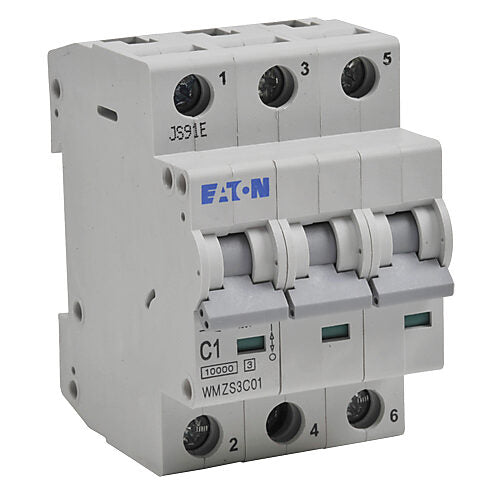

WMZS3C01
WMZS3C01 is a Cutler Hammer 3-pole circuit breaker rated for 1 amp and 480 volts, designed for DIN rail mounting with a 10kA interrupt rating.WMZS3C01 belongs to the WMZS Series, featuring thermal magnetic trip units with a C curve characteristic, suitable for control panel applications requiring reliable short-circuit protection and switching duty for fluorescent lighting loads.
- Amperage Rating: 1 Amp
- Voltage Rating: 480Y/277 VAC, 96 VDC
- Number of Poles: 3
- Mounting Type: 35mm DIN Rail
- Interrupt Rating: 10 kAIC
- Trip Unit: Thermal Magnetic, C Curve
- Series/Frame: WMZS Series
- Certifications: UL 489, CSA C22.2 No. 5
- Switching Duty Rated for Fluorescent Lighting
- Trip-Free Design
- Captive Screws for Secure Installation
Specifications
- Part Number: WMZS3C01
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 1
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525962
- GTIN : 00786685259628
- Country of Origin : Spain
- Weight : 0.87
- Certification : UL 1077;CSA Std. C22.2 No. 235;IEC 60947-2;CE Marked;RoHS Compliant
