Product Info
- Manufacturer:Cutler Hammer
- Sub-Category:Molded Case
Description
WMZS3B30

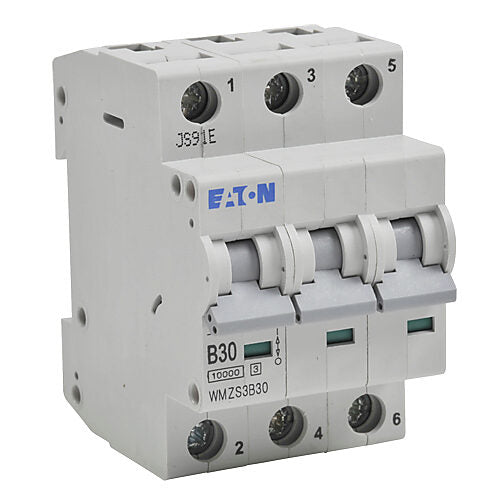

WMZS3B30 is a Cutler Hammer 30 amp, 3-pole circuit breaker designed for reliable branch circuit protection.This WMZS3B30 breaker features a 240V rating and a 10kA interrupting capacity with a Type B trip curve. It is DIN rail mounted and constructed for modular installation with captive screws and flexible wiring options. The breaker is part of the WMZS series, offering current limiting protection and compliance with UL 489 standards.
- Amperage: 30A
- Voltage: 240V
- Poles: 3
- Mounting Type: DIN rail (35 x 7.5 mm symmetrical rail)
- Interrupt Rating: 10kA UL/CSA
- Trip Unit: Type B curve
- Series/Frame: WMZS
- Certifications: UL 489 compliant
- Construction: Modular with captive screws
- Current Limiting Device
- Flexible power feed connection
Specifications
- Part Number: WMZS3B30
- Manufacturer : Cutler Hammer
- Brand : Cutler Hammer
- Category : Circuit Breaker
- Item Subcategory : Molded Case
- Family : WMZS Series
- Type : WMZS
- Voltage : 480
- Amperage : 30
- Phase : 3
- Poles : 3
- AIC rating : 10kA@277/480V
- Connection : Feed-Thru
- Functions : LI - Long-Time and Instantaneous
- Protection : Thermal Magnetic
Product Data
- UPC : 78668525956
- GTIN : 00786685259567
- Weight : 0.9
