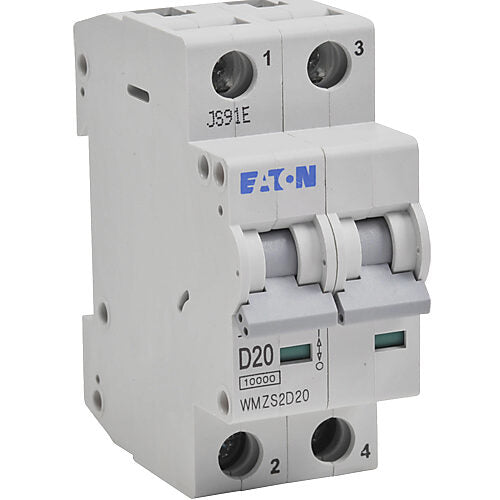

WMZS2D20 - Cutler Hammer 20 Amp 2 Pole Circuit Breaker DIN Rail Mount D Curve 10kA Interrupt Rating

WMZS2D20

WMZS2D20 is a 20 Amp, 2 Pole circuit breaker from Cutler Hammer designed for DIN rail mounting with a D curve trip characteristic.This miniature circuit breaker features a thermal magnetic trip unit with a D curve, suitable for high inductive loads, and provides a 10 kA interrupt rating at 480 VAC. It is UL recognized under UL 1077 and CSA certified, ensuring compliance with industrial safety standards. The breaker includes a red/green status indicator window and IP20 finger protection.

• Amperage: 20 A
• Poles: 2
• Mounting Type: 35 mm DIN Rail
• Trip Curve: D Curve (10-20x rated current)
• Interrupt Rating: 10 kA AC
• Voltage Rating: 480 VAC, 125 VDC
• Certifications: UL 1077, CSA 22.2 No. 235, CE, IEC/EN 60898, IEC/EN 60947-2
• Thermal Magnetic Trip Unit
• IP20 Finger Protection
• Color Coded Status Indicator Window
• Reverse Feedable Design

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2D20
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 20
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525941
• GTIN : 00786685259413
• Country of Origin : Spain
• Weight : 0.66
• Certification : UL 1077;CSA Std. C22.2 No. 235;IEC 60947-2;RoHS Compliant;CE Marked
