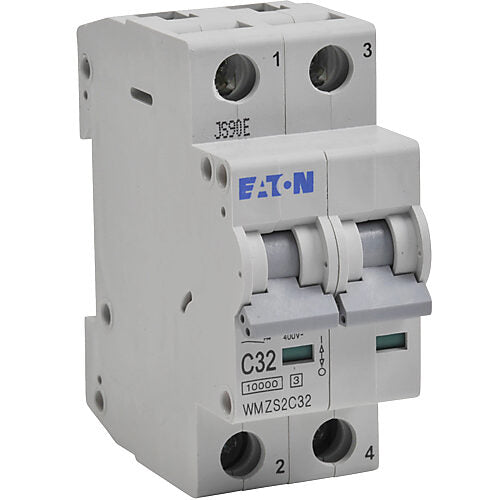

WMZS2C32 - Cutler Hammer 32A 480V 2-Pole DIN Rail Mount Circuit Breaker C Curve 10kAIC

WMZS2C32

WMZS2C32 is a Cutler Hammer 2-pole circuit breaker rated for 32 amps and 480 volts, designed for DIN rail mounting with a 10kA interrupt rating.This WMZS series miniature supplementary protector features a thermal-magnetic trip unit with a C curve characteristic, suitable for control panel applications. It offers a trip-free design preventing handle defeat, captive screws for secure installation, and meets UL 1077, CSA C22.2 No.235, and IEC 60947-2 standards.

• Amperage: 32A
• Voltage Rating: 480Y/277 VAC, 96 VDC
• Number of Poles: 2
• Mounting Type: DIN rail (35mm symmetrical rail)
• Interrupt Rating: 10 kAIC at 277/480 VAC
• Trip Unit: Thermal-magnetic, C curve
• Series/Frame: WMZS
• Certifications: UL 1077, CSA C22.2 No.235, IEC 60947-2
• Trip-free design prevents handle defeat
• Captive screws with finger and back-of-hand protection (IP20)
• Compact width: 17.5 mm per pole

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2C32
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 32
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525924
• GTIN : 00786685259246
• Country of Origin : Spain
• Weight : 0.53
• Certification : IEC 60947-2;UL 1077;CSA Std. C22.2 No. 235;RoHS Compliant;CE Marked
