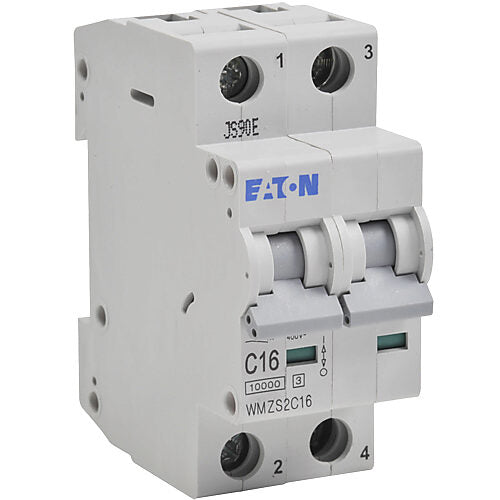

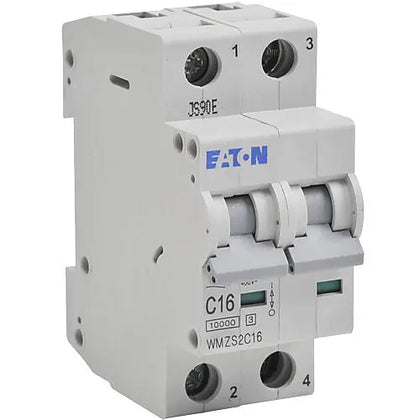

WMZS2C16 - Cutler Hammer 16 Amp 2 Pole Circuit Breaker 277/480V 10kA Interrupt Rating

WMZS2C16

WMZS2C16 is a 16 Amp, 2 Pole miniature circuit breaker from Cutler Hammer designed for reliable overcurrent protection in electrical systems.WMZS2C16 features a 10 kA interrupting rating at 277/480 Vac, suitable for branch circuit protection with a cable-in/cable-out mounting type. It is UL 489 and CSA certified, with a trip-free design and C curve trip characteristic for general use. The breaker supports 277/480V AC voltage and is DIN rail mountable.

Key Specifications
• Amperage: 16 Amp
• Poles: 2 Pole
• Voltage Rating: 277/480 Vac
• Interrupt Rating: 10 kAIC
• Mounting Type: Cable-in/Cable-out
• Trip Unit: Thermal Magnetic, C Curve
• Certifications: UL 489, CSA C22.2 No. 5
• Frame/Series: WMZS Series
• Trip-Free Design
• Suitable for switching fluorescent lighting loads
• UL and CSA Listed

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2C16
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 16
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525920
• GTIN : 00786685259208
• Country of Origin : Spain
• Weight : 0.53
• Certification : UL 1077;IEC 60947-2;CSA Std. C22.2 No. 235;RoHS Compliant;CE Marked
