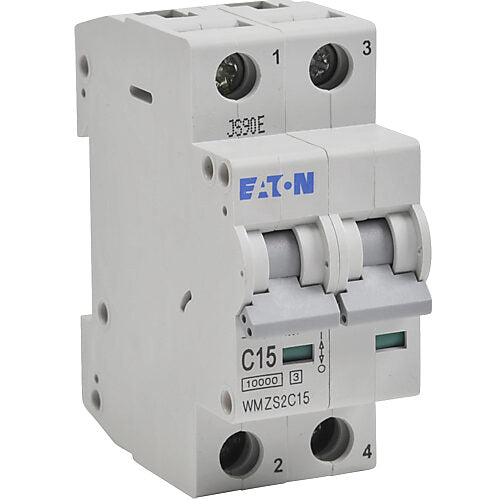

WMZS2C15 - Eaton 15 Amp 2 Pole Miniature Circuit Breaker 277/480V DIN Rail Mount

WMZS2C15

WMZS2C15 is a 15 Amp, 2 Pole miniature circuit breaker designed for DIN rail mounting and branch circuit protection in industrial and commercial applications. This Eaton circuit breaker features a C-trip curve for reliable overcurrent protection and is suitable for use with 277/480V AC systems. The WMZS2C15 is built for durability and ease of installation, with a modular design that supports flexible power feed connections and field-mountable accessories. Its current limiting design provides fast short-circuit interruption, reducing let-through energy and minimizing potential circuit damage. The breaker is trip-free, ensuring it cannot be defeated by holding the handle in the ON position, and features captive screws to prevent loss during installation.

• Part Number: WMZS2C15
• Manufacturer: Eaton
• Amperage Rating: 15 Amp
• Number of Poles: 2
• Voltage Rating: 277/480V AC
• Interrupt Rating: 10 kAIC at 277/480 Vac
• Mounting Type: DIN Rail
• Series/Frame: WMZ
• Tripping Curve: C
• Certifications: IEC 60947-2, CSA C22.2 No. 235, UL 1077, RoHS Compliant, CE Marked

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2C15
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 15
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525919
• GTIN : 00786685259192
• Country of Origin : Spain
• Weight : 0.53
• Certification : IEC 60947-2;CSA Std. C22.2 No. 235;UL 1077;RoHS Compliant;CE Marked
