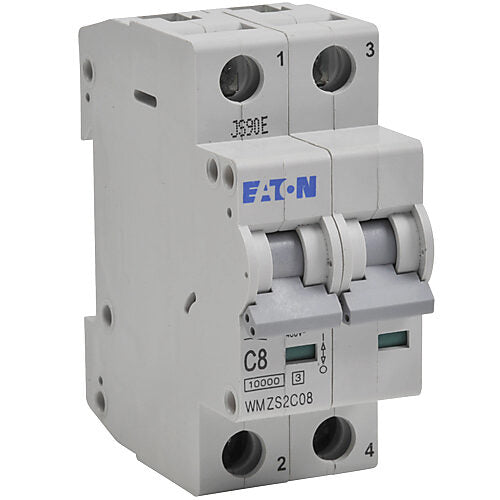

WMZS2C08 - Cutler Hammer WMZS Series 8A 2-Pole DIN Rail Mount Circuit Breaker 277/480V 10kAIC

WMZS2C08

WMZS2C08 is a Cutler Hammer WMZS Series miniature circuit breaker designed for reliable branch circuit protection in industrial and commercial applications. This two-pole device features a rated current of 8A and is suitable for use at voltages up to 277/480V. It is DIN rail mountable for easy installation and offers a high interrupting capacity of 10kAIC, making it ideal for demanding environments. The breaker is equipped with a Type C trip curve for optimal protection against short circuits and overloads. It is UL 489 listed and meets CSA standards for safety and performance. The WMZS2C08 is engineered for flexibility and durability, supporting a wide range of wire sizes and connection options. Its modular design allows for easy integration into control panels and distribution boards. The breaker is also suitable for switching fluorescent lighting loads up to 20A, providing added versatility for various electrical systems.

• Part Number: WMZS2C08
• Manufacturer: Cutler Hammer
• Series: WMZS
• Amperage Rating: 8A
• Voltage Rating: 277/480V
• Number of Poles: 2
• Mounting Type: DIN Rail
• Interrupt Rating: 10kAIC
• Frame Size: Standard
• Trip Unit: Type C
• Certifications: UL 489, CSA
• Standards: UL1077

At Essential Parts, we offer fast shipping, lowest price, and expert support to help you get the right product every time.

Specifications

• Part Number: WMZS2C08
• Manufacturer : Cutler Hammer
• Brand : Cutler Hammer
• Category : Circuit Breaker
• Item Subcategory : Molded Case
• Family : WMZS Series
• Type : WMZS
• Voltage : 480
• Amperage : 8
• Phase : 1
• Poles : 2
• AIC rating : 10kA@277/480V
• Connection : Feed-Thru
• Functions : LI - Long-Time and Instantaneous
• Protection : Thermal Magnetic

Product Data

• UPC : 78668525916
• GTIN : 00786685259161
• Country of Origin : Spain
• Weight : 0.53
• Certification : UL 1077;IEC 60947-2;CSA Std. C22.2 No. 235;CE Marked;RoHS Compliant
